57
S1. / Control box mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6364001 1
CF CAP ASSY
<For 100-220V AC>
2 SA3720101 1 TRANSFORMER LOW VOLTAGE
<For 380-400V AC>
3 SA3808101 1 TRANSFORMER HIGH VOLTAGE
4 SA6554001 1
PCB ASSY MAIN 982
5 SA3739501 1
PCB ASSY PMD
6 SA3744001 3 TRANSISTOR FET:FS10ASJ-2
7 SA3722001 1 TRANSISTOR FET:FX20KMJ-2
8 S49484000 1 TRANSISTOR FET:FS10KMJ-2
9 SA3806001 1
HARNESS MAIN POWER SUPPLY
10 S37059001 1 LABEL, PE
11 S37060001 3 LABEL, GROUNDING
12 J04115001 1
LABEL, ELEC. SHOCK 6 LANG.
<For Europe 3-phase 400V AC>
13 SA3581101 1
PCB ASSY NF
14 SA3796001 1 HARNESS NF OUT
RH-9820-502
58
57
RH-9820-502

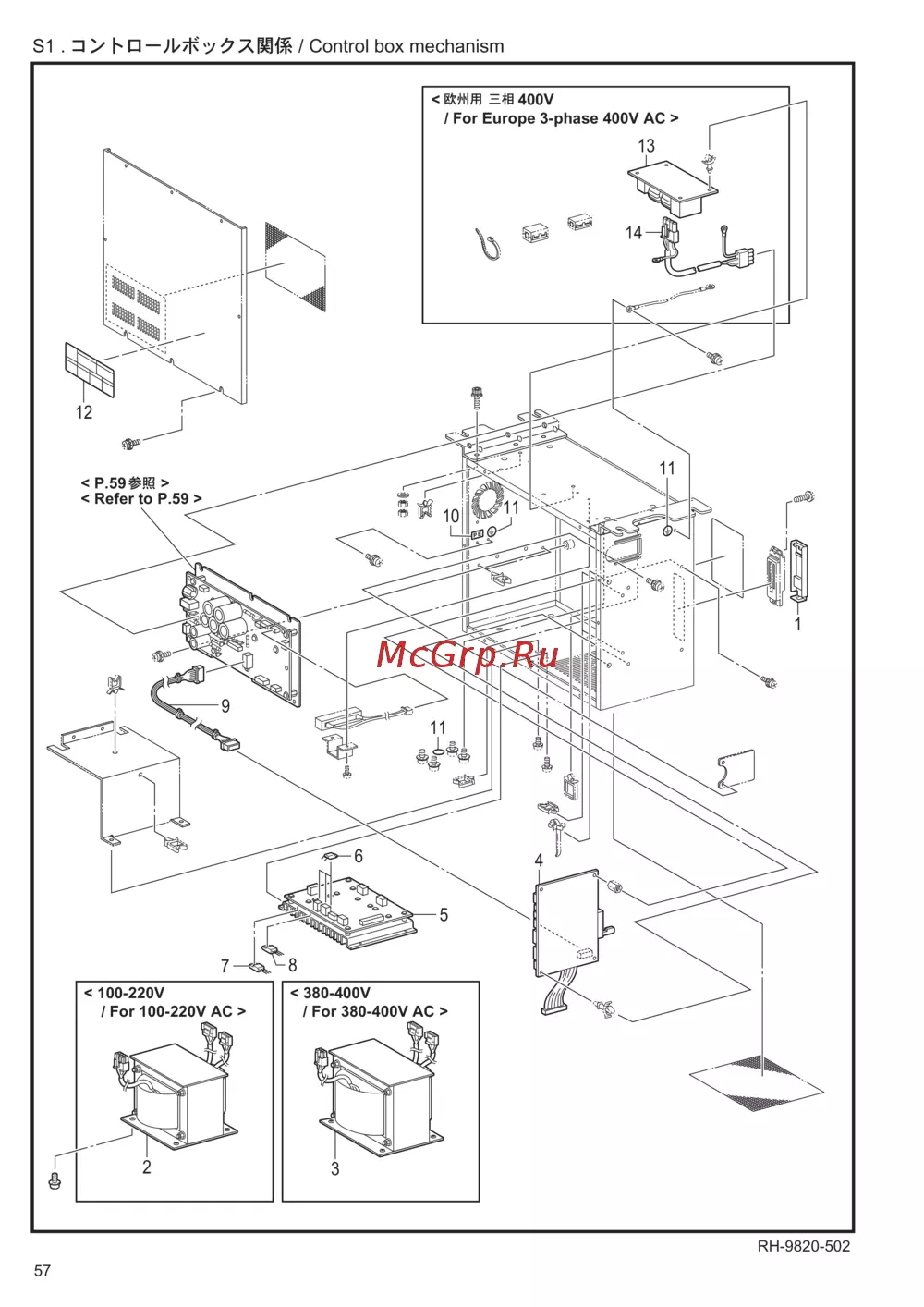

S1 . / Control box mechanism
< 100-220V
/ For 100-220V AC >
< 380-400V
/ For 380-400V AC >
< 400V
/ For Europe 3-phase 400V AC >
< P.59 >
< Refer to P.59 >
5
13
4
11
11
10
11
1
9
2
3
12
8
6
14
7
