Brother RH-9820-01/02 [66/118] T power switch mechanism
![Brother RH-9820-01/02 [66/118] T power switch mechanism](/views2/1497396/page66/bg42.png)
61
61
RH-9820-502

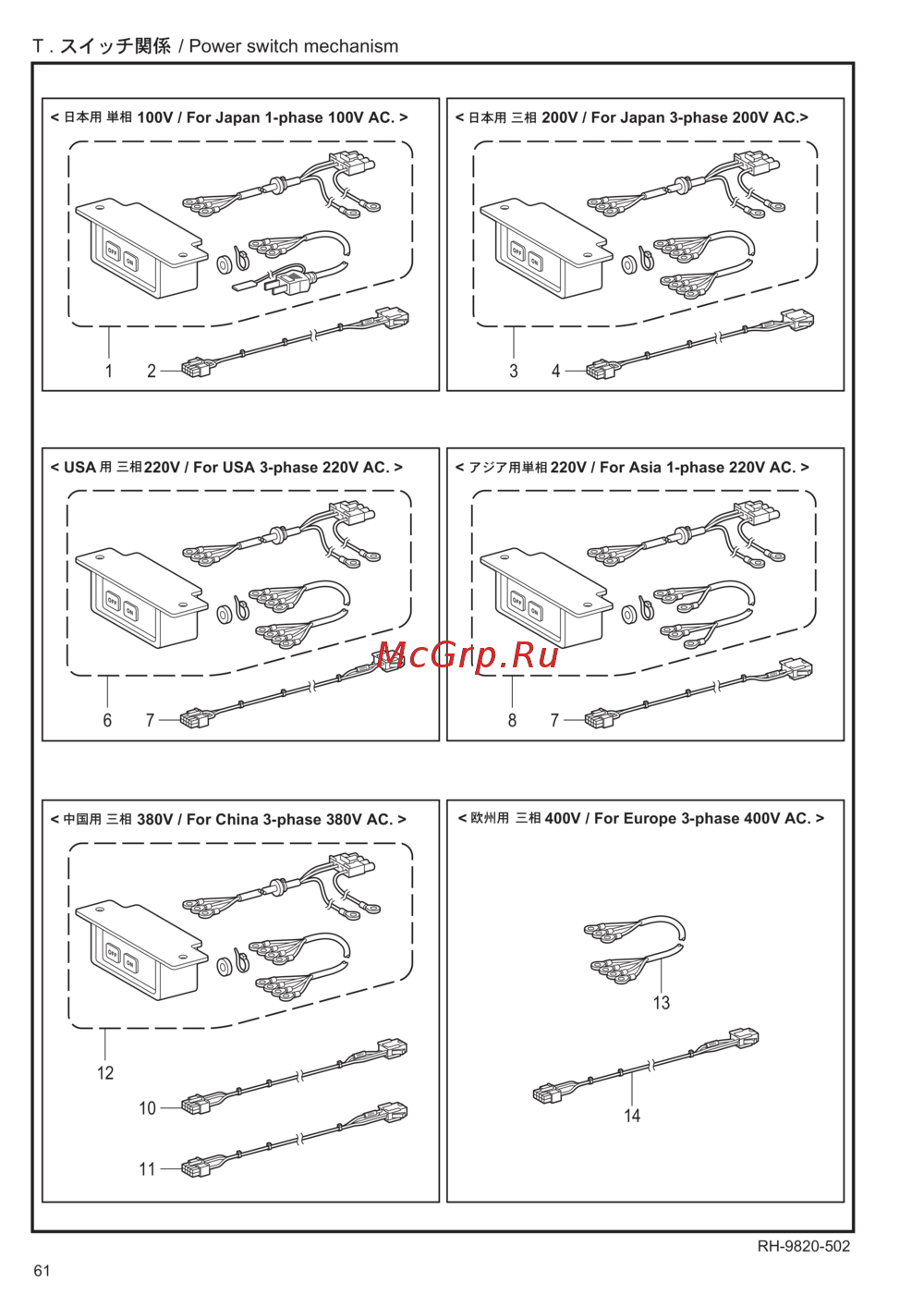

T . / Power switch mechanism
< 100V / For Japan 1-phase 100V AC. > < 200V / For Japan 3-phase 200V AC.>
< 220V / For Asia 1-phase 220V AC. >
< 380V / For China 3-phase 380V AC. >
< USA 220V / For USA 3-phase 220V AC. >
< 400V / For Europe 3-phase 400V AC. >
21 43
7876
10
11
12
14
13
T. / Power switch mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For Japan 1-phase 100V AC.>
1
SA3813001 1
POWER SUPPLY SWITCH ASSY
,
1P-JP
2
SA3822001
1
VOLTAGE SELECT HARNESS 100
V
<For Japan 3-phase 200V AC.>
3
SA3819001 1
POWER SUPPLY SWITCH ASSY
,
3P-JP
4
SA3825001
1
VOLTAGE SELECT HARNESS 200
V
<For 3-phase 220V AC.>
6
SA3816001 1
POWER SUPPLY SWITCH ASSY
,
3P-L
7
SA3812001
1
VOLTAGE SELECT HARNESS 220
V
<For 1-phase 220V AC.>
8
SA3809001 1
POWER SUPPLY SWITCH ASSY
,
1P
7
SA3812001
1
VOLTAGE SELECT HARNESS 220
V
<For Chna 3-phase 380V AC.>
10
SA3827001
1
VOLTAGE SELECT HARNESS 380
V
11
SA3789101
1
VOLTAGE SELECT HARNESS H220
V
12
SA4510001
1
POWER SUPPLY SWITCH ASSY
,
3P-H
<For urope 3-phase 400V AC.>
13
SA3838009
1
14
SA3828001
1
VOLTAGE SELECT HARNESS 400
V
RH-9820-502
62
