2

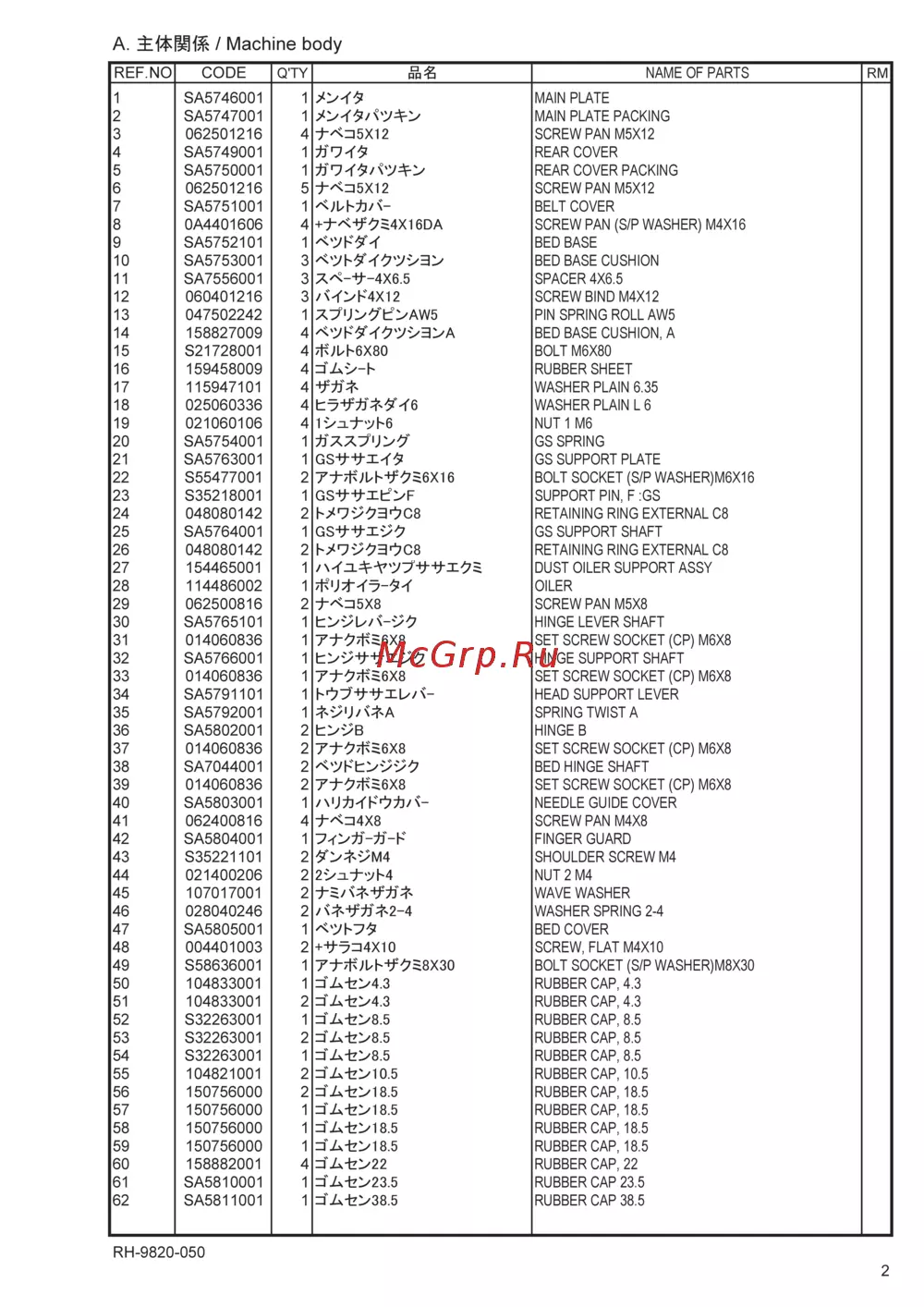

A. / Machine body
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5746001 1 MAIN PLATE
2 SA5747001 1 MAIN PLATE PACKING
3 062501216 4 SCREW PAN M5X12
4 SA5749001 1
REAR COVER
5 SA5750001 1
REAR COVER PACKING
6 062501216 5 SCREW PAN M5X12
7 SA5751001 1
BELT COVER
8 0A4401606 4
SCREW PAN (S/P WASHER) M4X16
9 SA5752101 1
BED BASE
10 SA5753001 3
BED BASE CUSHION
11 SA7556001 3 SPACER 4X6.5
12 060401216 3
SCREW BIND M4X12
13 047502242 1
PIN SPRING ROLL AW5
14 158827009 4
BED BASE CUSHION, A
15 S21728001 4
BOLT M6X80
16 159458009 4
RUBBER SHEET
17 115947101 4
WASHER PLAIN 6.35
18 025060336 4
WASHER PLAIN L 6
19 021060106 4 NUT 1 M6
20 SA5754001 1
GS SPRING
21 SA5763001 1 GS SUPPORT PLATE
22 S55477001 2
BOLT SOCKET (S/P WASHER)M6X16
23 S35218001 1
SUPPORT PIN, F :GS
24 048080142 2
RETAINING RING EXTERNAL C8
25 SA5764001 1
GS SUPPORT SHAFT
26 048080142 2
RETAINING RING EXTERNAL C8
27 154465001 1
DUST OILER SUPPORT ASSY
28 114486002 1
OILER
29 062500816 2 SCREW PAN M5X8
30 SA5765101 1
HINGE LEVER SHAFT
31 014060836 1
SET SCREW SOCKET (CP) M6X8
32 SA5766001 1
HINGE SUPPORT SHAFT
33 014060836 1
SET SCREW SOCKET (CP) M6X8
34 SA5791101 1
HEAD SUPPORT LEVER
35 SA5792001 1
SPRING TWIST A
36 SA5802001 2
HINGE B
37 014060836 2
SET SCREW SOCKET (CP) M6X8
38 SA7044001 2
BED HINGE SHAFT
39 014060836 2
SET SCREW SOCKET (CP) M6X8
40 SA5803001 1
NEEDLE GUIDE COVER
41 062400816 4 SCREW PAN M4X8
42 SA5804001 1
FINGER GUARD
43 S35221101 2
SHOULDER SCREW M4
44 021400206 2 NUT 2 M4
45 107017001 2
WAVE WASHER
46 028040246 2
WASHER SPRING 2-4
47 SA5805001 1 BED COVER
48 004401003 2 SCREW, FLAT M4X10
49 S58636001 1
BOLT SOCKET (S/P WASHER)M8X30
50 104833001 1
RUBBER CAP, 4.3
51 104833001 2
RUBBER CAP, 4.3
52 S32263001 1
RUBBER CAP, 8.5
53 S32263001 2
RUBBER CAP, 8.5
54 S32263001 1
RUBBER CAP, 8.5
55 104821001 2
RUBBER CAP, 10.5
56 150756000 2
RUBBER CAP, 18.5
57 150756000 1
RUBBER CAP, 18.5
58 150756000 1
RUBBER CAP, 18.5
59 150756000 1
RUBBER CAP, 18.5
60 158882001 4
RUBBER CAP, 22
61 SA5810001 1
RUBBER CAP 23.5
62 SA5811001 1
RUBBER CAP 38.5
RH-9820-050
2
