65
U2. / Air pressure mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For -00>
1 SA7085001 1
SOLENOID VALVE 4 ASSY
2 S39116100 1
VALVE VQZ2151S-5
3 S53982000 1
BLANKING PLATE ASSY
4 SA7032001 1 MANIFOLD 5
5 S39115100 3
VALVE, VQZ2151-5
6 S14159000 1
ELBOW 1/8-8
7 SA5283001 1 SILENCER AN103-1
8 153274001 2 CAP, 1/8
9 SA7033001 1
PLUG 4
10 0A4403506 2
SCREW PAN (S/P WASHER) M4X35
<For -01 & -02>
11 SA7031001 1
SOLENOID VALVE 5 ASSY
2 S39116100 2
VALVE VQZ2151S-5
4 SA7032001 1 MANIFOLD 5
5 S39115100 3
VALVE, VQZ2151-5
6 S14159000 1
ELBOW 1/8-8
7 SA5283001 1 SILENCER AN103-1
8 153274001 2 CAP, 1/8
9 SA7033001 1
PLUG 4
10 0A4403506 2
SCREW PAN (S/P WASHER) M4X35
12 SA7034001 1
A
IR TUBE 8X6.5-1
13 SA7035001 1
A
IR TUBE 10X6.5-4
14 SA6525001 1
VALVE HARNESS ASSY X5
16 SA7591001 1
VALVE ASSY
17 SA7592001 1
VALVE VF5120-5G-03
18 SA7593001 3
ELBOW KQ2L10-03S
19 SA7594001 1 SILENCER AN303-03
20 SA7598001 1
SILENCER ASN2-02
21 SA7596001 1
JOINT 3/8X1/4-M5
22 SA7597001 1
ELBOW KJL04-M5
23 0A4404006 3
SCREW PAN (S/P WASHER) M4X40
24 SA7581001 1
VALVE SETTING PLATE
25 031553202 2 WOOD SCREW ROUND M5.5X32
26 SA6526001 1
HAMMER VALVE HARNESS
27 S00470000 2
CORD HOLDER, 16N
28 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
29 SA7046001 1
HOSE JOINT
30 SA7047001 1
OIL TUBE
31 228475000 1
FASTENING BAND 1.9X80
32 012500536 1 SET SCREW SOCKET (FT) M5X5
RH-9820-514
66
65
RH-9820-514

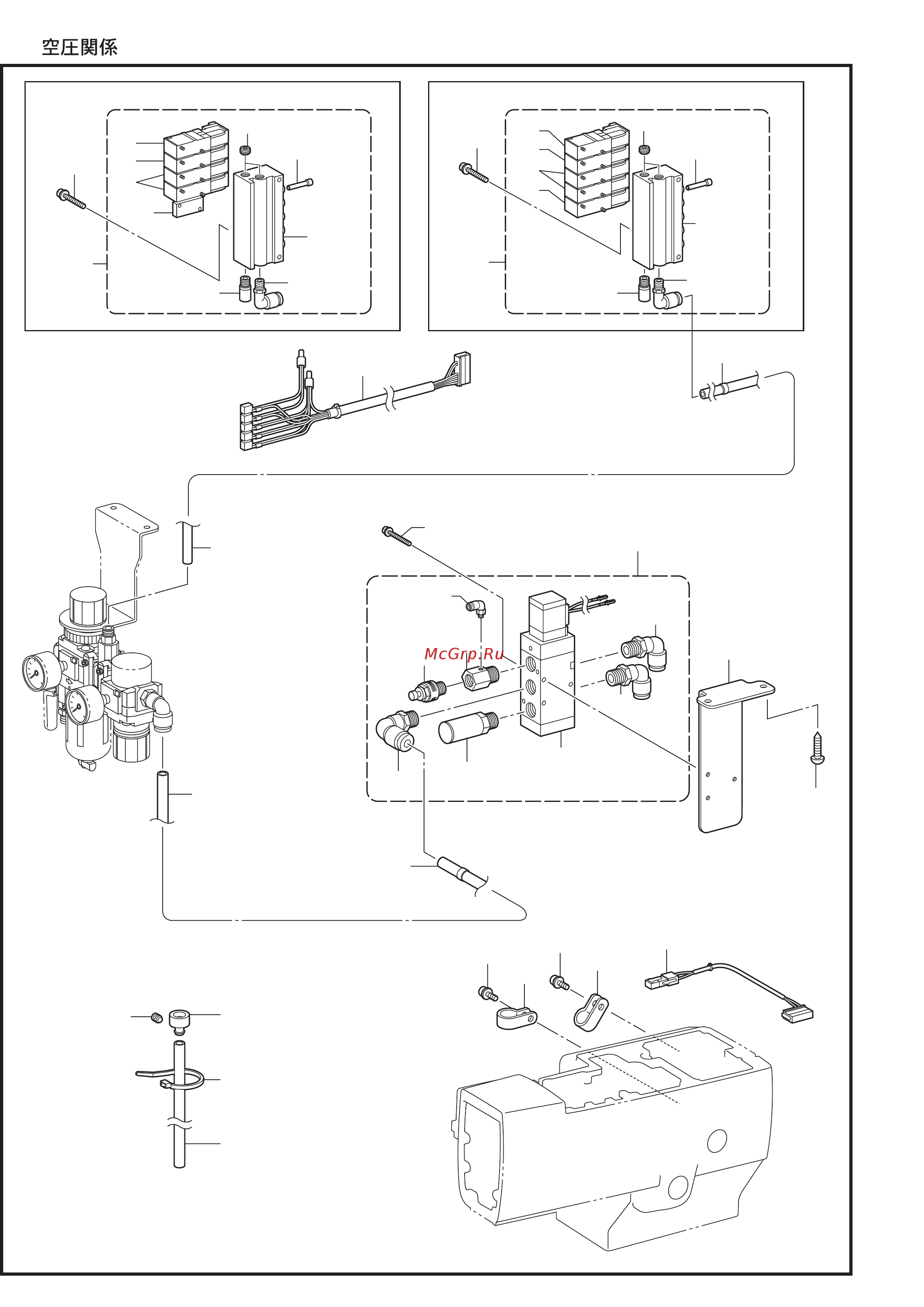

U2 . / Air pressure mechanism
< -00 > < -01, -02 >
6
6
4
4
5
5
3
5
2
7
1
32
7
11
5
2
2
14
10
8
8
99
12
22
13
26
23
31
30
29
21
20
18
16
24
19
18
17
18
25
10
13
12
27
28
27
28
