73

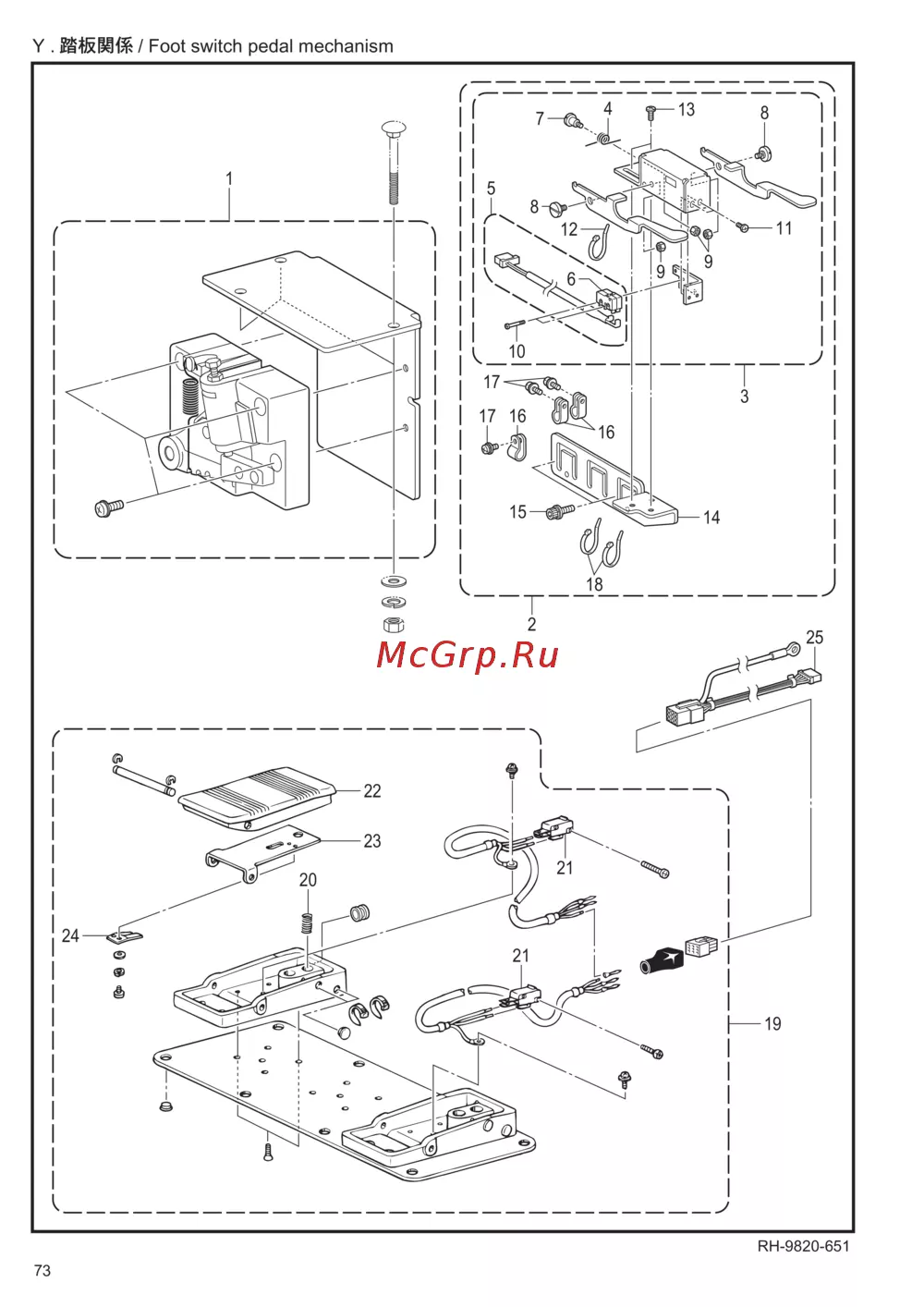

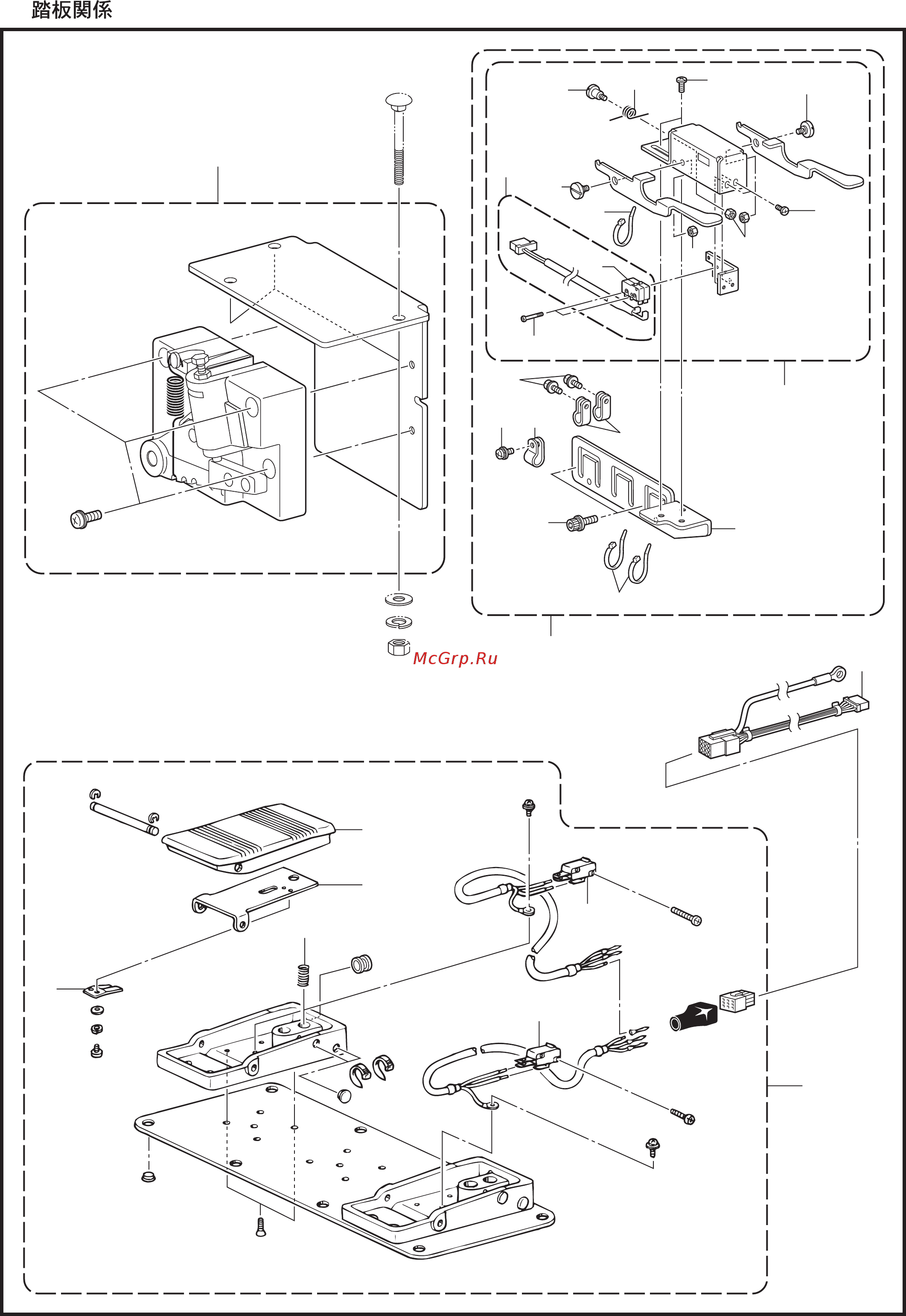

Y. / Foot switch pedal mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
<For treadle>
1 SA6567101 1 TREADLE UNIT B ASSY
<For hand start switch>
2 SA7121001 1 HAND START SWITCH UNIT
3 SA7122001 1 HAND START SWITCH ASSY
4 S39914001 1
SWITCH LEVER SPRING
5 SA7123001 1 HAND START SWITCH
6 S02699001 2 MICRO SWITCH
7 S34922101 1
SHOULDER SCREW M4
8 S34966001 2
SHOULDER SCREW M4
9 021400202 3 NUT 2 M4
10 146124001 2
SCREW, SM2.38
11 060300616 2
SCREW BIND M3X6
12 S04557000 1 BAND, PLT1M
13 060400816 2
SCREW BIND M4X8
14 SA7124001 1 HAND SWITCH SETTING PLATE
15 S55485001 2
BOLT SOCKET (S/P WASHER)M5X12
16 S10243000 3
CORD HOLDER, NK-3N
17 0A4400806 3
SCREW PAN (S/P WASHER) M4X8
18 228475000 2
FASTENING BAND 1.9X80
<For 2-pedal foot switch>
19 S42838301 1 2-PEDAL FOOT SWITCH 2
20 S38170001 2
FOOT PEDAL SPRING
21 S36260000 2
PIN BUTTON MICRO SWITCH, VX
22 S38174000 2
FOOT PEDAL
23 S38175101 2
PROTECTION PLATE PEDAL
24 S38176101 2
SPRING, PLATE
25 SA3784001 1 CONVERSION HARNESS FOOT SW
RH-9820-651
74
73
RH-9820-651
Y . / Foot switch pedal mechanism
13
11
14
16
12
8
7
17
15
6
8
4
5
17 16
9
9
2
18
3
10
19
22
23
24
21
25
20
1
21
