A. / Machine body
REF.NO CODE Q'TY NAME OF PARTS RM
63 SA5819001 1
RUBBER CAP
64 SA5820001 1
CORD BUSH
65 SA5821001 1 Z-WINDOW COVER
66 S35221101 1
SHOULDER SCREW M4
67 107017001 1
WAVE WASHER
<Except for Japan>
68 SA0793001 1 LABEL, CAUTION CHN/ENG
<For Japan only>
69 SA0792001 1 LABEL, CAUTION JPN/ENG
70 S36924001 6
INJURY MARK
71 S37060001 4 LABEL, GROUNDING
RH-9820-050
4
3

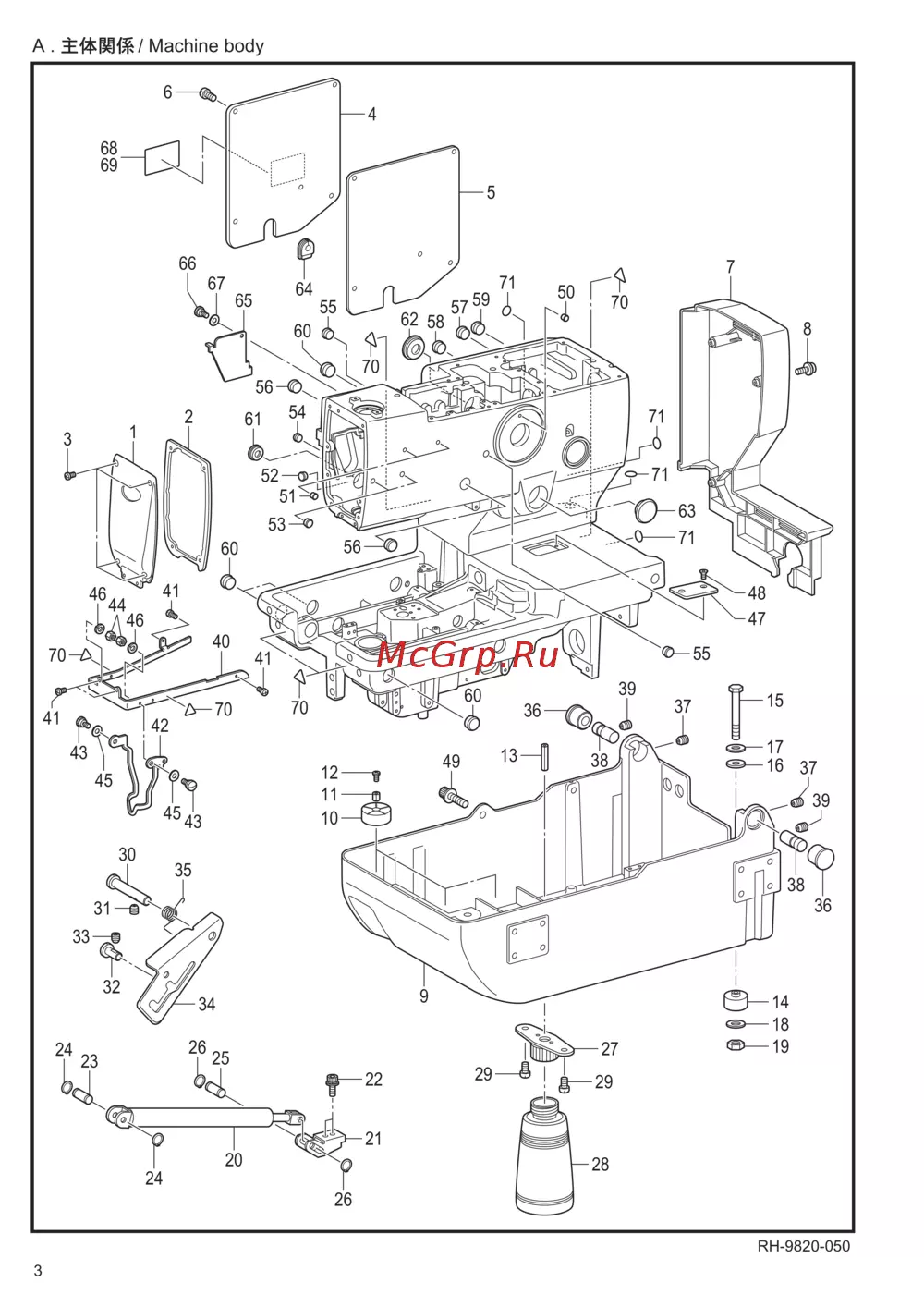

A . / Machine body
