75

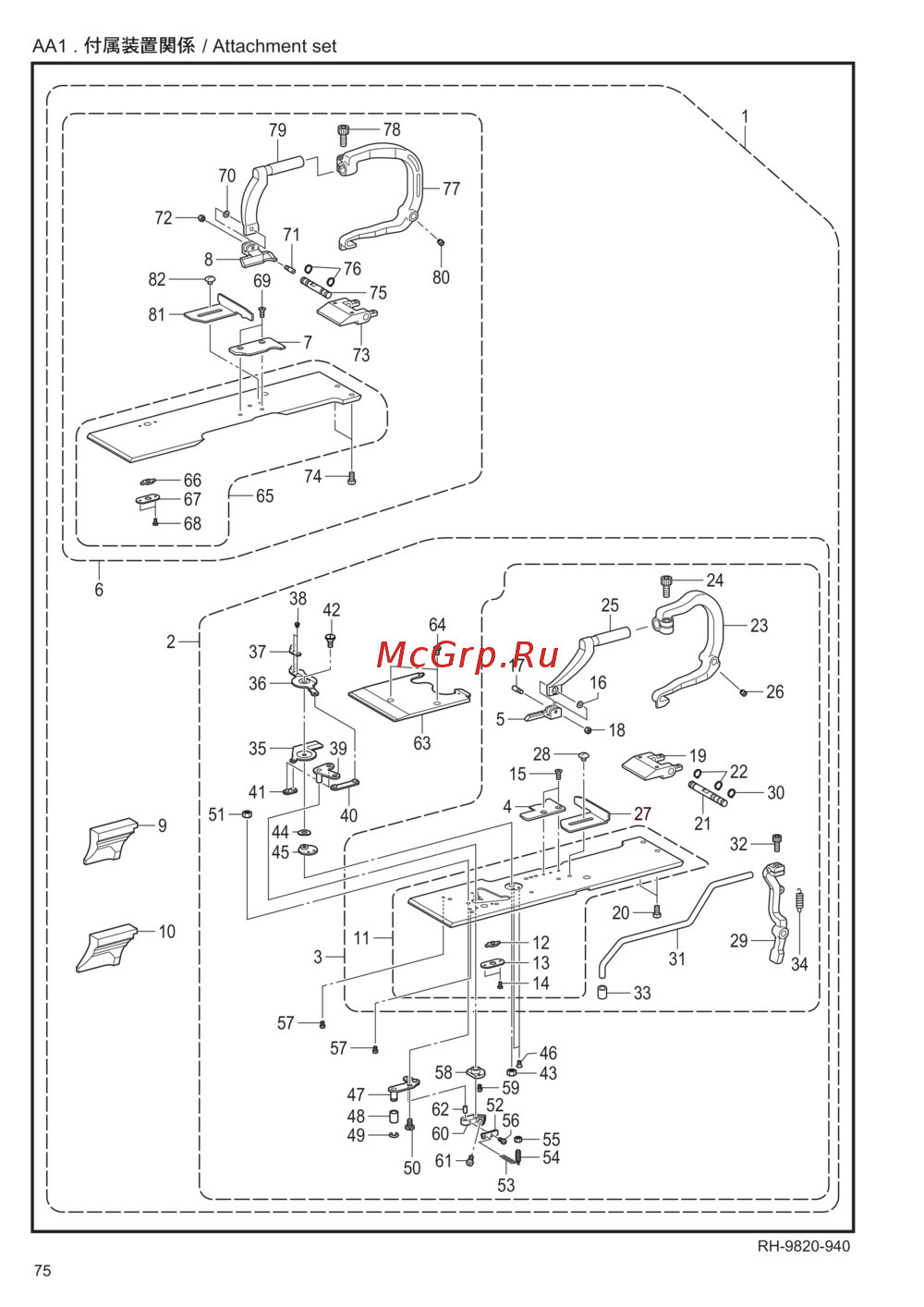

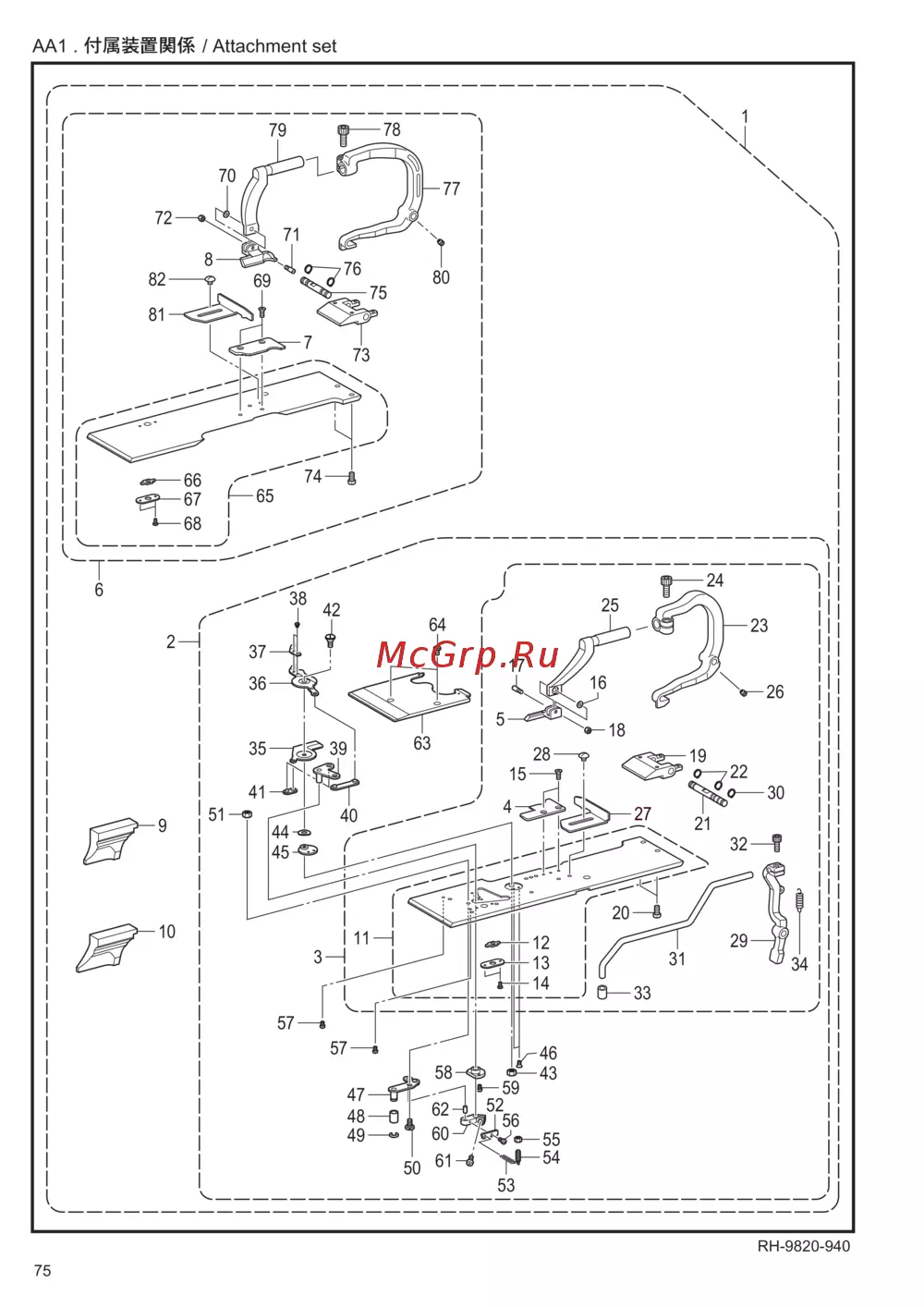

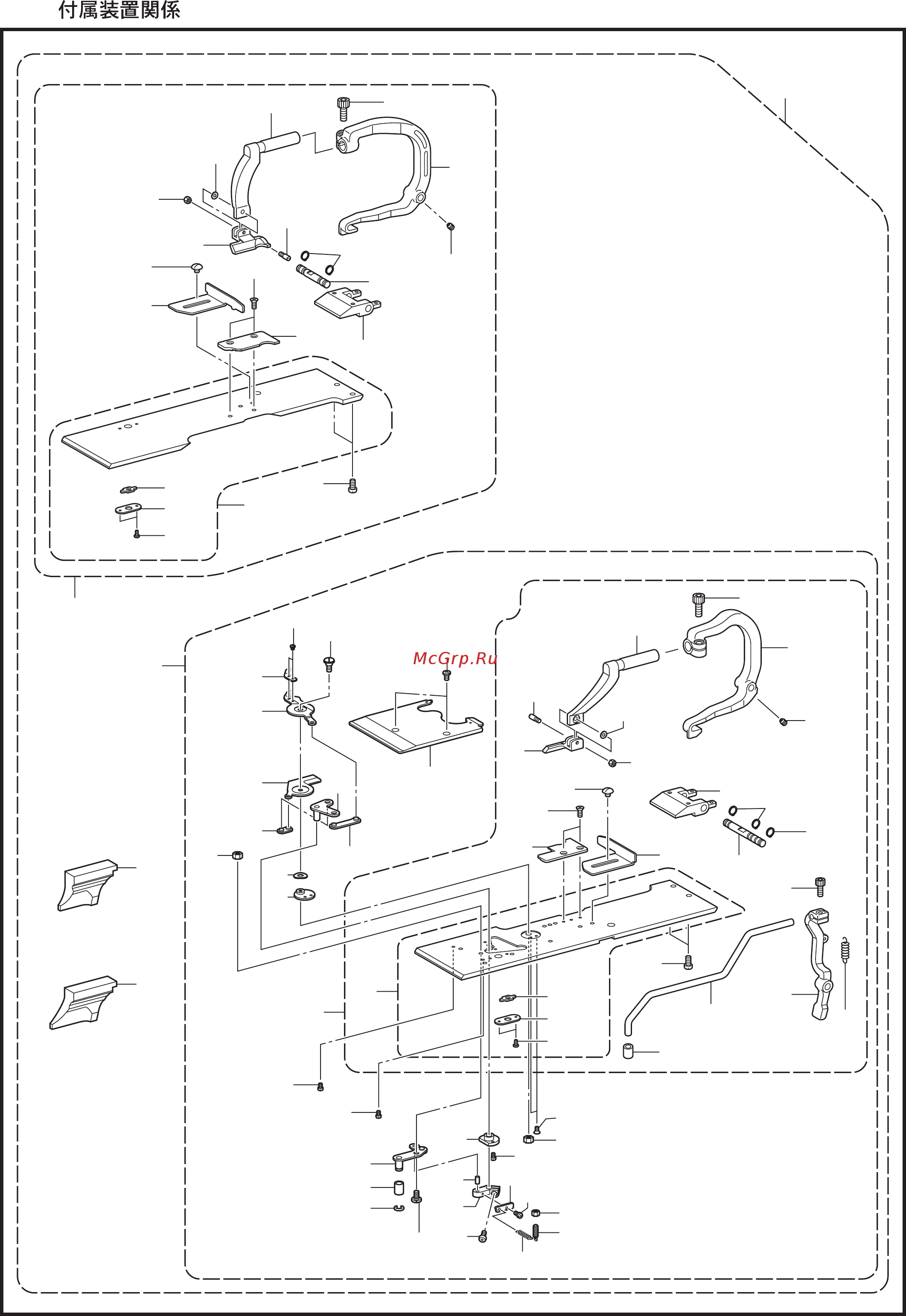

AA1.
/
Attachment set
REF.NO CODE Q'TY NAME OF PARTS RM
<For exchange parts>
<For -02: L1422>
1 SA7750001 1 EXCHANGE PARTS SET L1422
2 SA7748001 1
L1422-PLATE R ASSY
3 SA7728001 1
WORK CLAMP PLATE R1422 ASSY
4 SA7102001 1 NEEDLE PLATE L1422R
5 SA7092001 1 WORK CLAMP R-JL1422
6 SA7749001 1
WORK CLAMP PLATE L1422 ASSY
7 SA7097001 1 NEEDLE PLATE L1422L
8 SA7087001 1 WORK CLAMP L-JL1422
9 S37704001 1 HAMMER, S16
10 S37706001 1 HAMMER, S20
<For -02: L2230>
1 SA7752001 1 EXCHANGE PARTS SET L2230
2 SA7751001 1
L2230-PLATE R ASSY
3 SA6728001 1
WORK CLAMP PLATE R2230 UNIT
4 SA6731001 1 NEEDLE PLATE L 2230R
5 SA6732001 1 WORK CLAMP R-JL2230
6 SA6738001 1
WORK CLAMP PLATE L2230 UNIT
7 SA6741001 1 NEEDLE PLATE L 2230L
8 SA6742001 1 WORK CLAMP L-JL2230
9 S37708001 1 HAMMER, S24
10 S42053001 1 HAMMER, S28
<For -02: L2634>
1 SA7756001 1 EXCHANGE PARTS SET L2634
2 SA7754001 1
L2634-PLATE R ASSY
3 SA7753001 1
WORK CLAMP PLATE R2634 ASSY
4 SA7103001 1 NEEDLE PLATE L2634R
5 SA7093001 1 WORK CLAMP R-JL2634
6 SA7755001 1
WORK CLAMP PLATE L2634 ASSY
7 SA7098001 1 NEEDLE PLATE L2634L
8 SA7088001 1 WORK CLAMP L-JL2634
9 S37198001 1 HAMMER, 28
10 S37200001 1 HAMMER, 32
<For -02: L3442>
1 SA7764001 1 EXCHANGE PARTS SET L3442
2 SA7758001 1
L3442-PLATE R ASSY
3 SA7757001 1
WORK CLAMP PLATE R3442 ASSY
4 SA7104001 1 NEEDLE PLATE L3442R
5 SA7094001 1 WORK CLAMP R-JL3442
6 SA7762001 1
WORK CLAMP PLATE L3442 ASSY
7 SA7099001 1 NEEDLE PLATE L3442L
8 SA7089001 1 WORK CLAMP L-JL3442
9 S37202001 1 HAMMER, 36
10 SA7106001 1 HAMMER 42
<For -02: L1826>
1 SA7771001 1 EXCHANGE PARTS SET L1826
2 SA7768001 1
L1826-PLATE R ASSY
3 SA7187001 1
WORK CLAMP PLATE R1826 ASSY
4 SA7105001 1 NEEDLE PLATE L1826R
5 SA7095001 1 WORK CLAMP R-JL1826
6 SA7186001 1
WORK CLAMP PLATE L1826 ASSY
7 SA7100001 1 NEEDLE PLATE L1826L
8 SA7090001 1 WORK CLAMP L-JL1826
9 S37706001 1 HAMMER, S20
10 S37708001 1 HAMMER, S24
RH-9820-940
76
75
RH-9820-940
AA1 . / Attachment set
62
58
45
44
60
61
51
41
35
36
37
2
47
57
57
49
48
54
55
9
10
59
43
46
50
53
4
15
20
28
5
74
77
78
75
7
76
30
19
18
22
23
24
26
11
3
8
72
81
82
71
17
64
69
79
1
25
66
65
67
68
73
80
12
13
14
27
52
56
38
42
39
29
32
21
63
6
40
34
33
31
70
16
