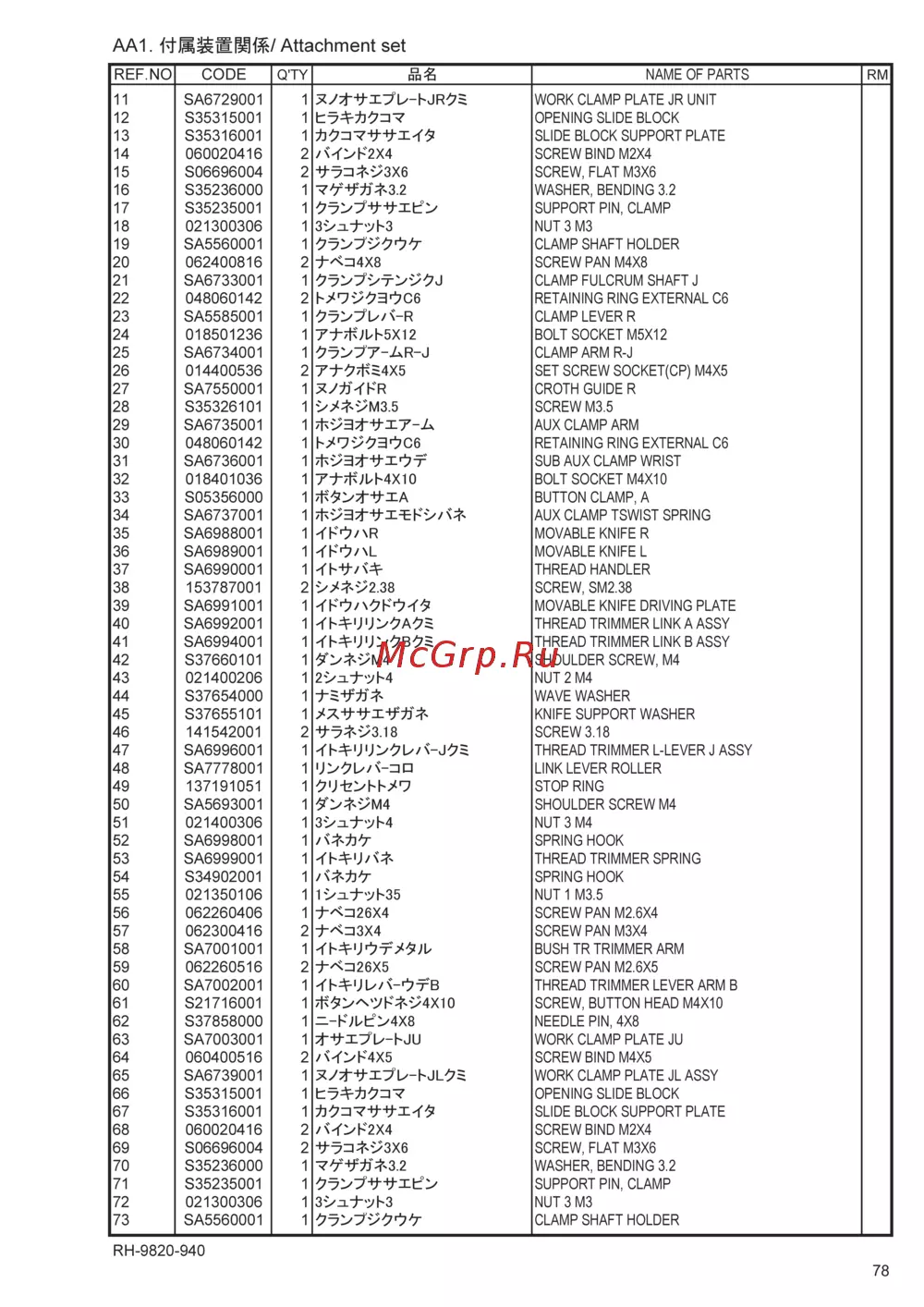

Brother RH-9820-01/02 [83/118] Aa1 attachm ent set
![Brother RH-9820-01/02 [83/118] Aa1 attachm ent set](/views2/1497396/page83/bg53.png)
78
AA1. / Attachment set
REF.NO CODE Q'TY NAME OF PARTS RM
11 SA6729001 1
WORK CLAMP PLATE JR UNIT
12 S35315001 1 OPENING SLIDE BLOCK
13 S35316001 1 SLIDE BLOCK SUPPORT PLATE
14 060020416 2
SCREW BIND M2X4
15 S06696004 2
SCREW, FLAT M3X6
16 S35236000 1
WASHER, BENDING 3.2
17 S35235001 1
SUPPORT PIN, CLAMP
18 021300306 1 NUT 3 M3
19 SA5560001 1
CLAMP SHAFT HOLDER
20 062400816 2 SCREW PAN M4X8
21 SA6733001 1
CLAMP FULCRUM SHAFT J
22 048060142 2
RETAINING RING EXTERNAL C6
23 SA5585001 1
CLAMP LEVER R
24 018501236 1
BOLT SOCKET M5X12
25 SA6734001 1
CLAMP ARM R-J
26 014400536 2
SET SCREW SOCKET(CP) M4X5
27 SA7550001 1
CROTH GUIDE R
28 S35326101 1
SCREW M3.5
29 SA6735001 1
A
UX CLAMP ARM
30 048060142 1
RETAINING RING EXTERNAL C6
31 SA6736001 1
SUB AUX CLAMP WRIST
32 018401036 1
BOLT SOCKET M4X10
33 S05356000 1
BUTTON CLAMP, A
34 SA6737001 1
A
UX CLAMP TSWIST SPRING
35 SA6988001 1 MOVABLE KNIFE R
36 SA6989001 1 MOVABLE KNIFE L
37 SA6990001 1
THREAD HANDLER
38 153787001 2
SCREW, SM2.38
39 SA6991001 1 MOVABLE KNIFE DRIVING PLATE
40 SA6992001 1 THREAD TRIMMER LINK A ASSY
41 SA6994001 1 THREAD TRIMMER LINK B ASSY
42 S37660101 1
SHOULDER SCREW, M4
43 021400206 1 NUT 2 M4
44 S37654000 1
WAVE WASHER
45 S37655101 1
KNIFE SUPPORT WASHER
46 141542001 2
SCREW 3.18
47 SA6996001 1
THREAD TRIMMER L-LEVER J ASSY
48 SA7778001 1
LINK LEVER ROLLER
49 137191051 1 STOP RING
50 SA5693001 1
SHOULDER SCREW M4
51 021400306 1 NUT 3 M4
52 SA6998001 1
SPRING HOOK
53 SA6999001 1
THREAD TRIMMER SPRING
54 S34902001 1
SPRING HOOK
55 021350106 1 NUT 1 M3.5
56 062260406 1 SCREW PAN M2.6X4
57 062300416 2 SCREW PAN M3X4
58 SA7001001 1
BUSH TR TRIMMER ARM
59 062260516 2 SCREW PAN M2.6X5
60 SA7002001 1
THREAD TRIMMER LEVER ARM B
61 S21716001 1
SCREW, BUTTON HEAD M4X10
62 S37858000 1
NEEDLE PIN, 4X8
63 SA7003001 1
WORK CLAMP PLATE JU
64 060400516 2
SCREW BIND M4X5
65 SA6739001 1
WORK CLAMP PLATE JL ASSY
66 S35315001 1 OPENING SLIDE BLOCK
67 S35316001 1 SLIDE BLOCK SUPPORT PLATE
68 060020416 2
SCREW BIND M2X4
69 S06696004 2
SCREW, FLAT M3X6
70 S35236000 1
WASHER, BENDING 3.2
71 S35235001 1
SUPPORT PIN, CLAMP
72 021300306 1 NUT 3 M3
73 SA5560001 1
CLAMP SHAFT HOLDER
RH-9820-940
78
