Brother RH-9820-01/02 [88/118] Rh 9820 940
![Brother RH-9820-01/02 [88/118] Rh 9820 940](/views2/1497396/page88/bg58.png)
83
AA3.
/
Attachment set
REF.NO CODE Q'TY NAME OF PARTS RM
<For waist belt presser L26>
1 SA7777001 1 WORK CLAMP SET L26W
2 SA7775001 1 WORK CLAMP ASSY L-L26W
3 S43408001 1 WORK CLAMP, L-L3W
4 SA7726001 1
CLAMP ARM L-JW
5 S35235001 1
SUPPORT PIN, CLAMP
6 S35236000 1
WASHER, BENDING 3.2
7 021300306 1 NUT 3 M3
8 SA7776001 1 WORK CLAMP ASSY R-L26W
9 S43409001 1 WORK CLAMP, R-L3W
10 SA7727001 1
CLAMP ARM R-JW
11 S35235001 1
SUPPORT PIN, CLAMP
12 S35236000 1
WASHER, BENDING 3.2
13 021300306 1 NUT 3 M3
<For waist belt presser L30>
1 SA7781001 1 WORK CLAMP SET L30W
2 SA7779001 1 WORK CLAMP ASSY L-L30W
3 S43410001 1 WORK CLAMP, L-L4W
4 SA7726001 1
CLAMP ARM L-JW
5 S35235001 1
SUPPORT PIN, CLAMP
6 S35236000 1
WASHER, BENDING 3.2
7 021300306 1 NUT 3 M3
8 SA7780001 1 WORK CLAMP ASSY R-L30W
9 S43411001 1 WORK CLAMP, R-L4W
10 SA7727001 1
CLAMP ARM R-JW
11 S35235001 1
SUPPORT PIN, CLAMP
12 S35236000 1
WASHER, BENDING 3.2
13 021300306 1 NUT 3 M3
RH-9820-940
84
83
RH-9820-940

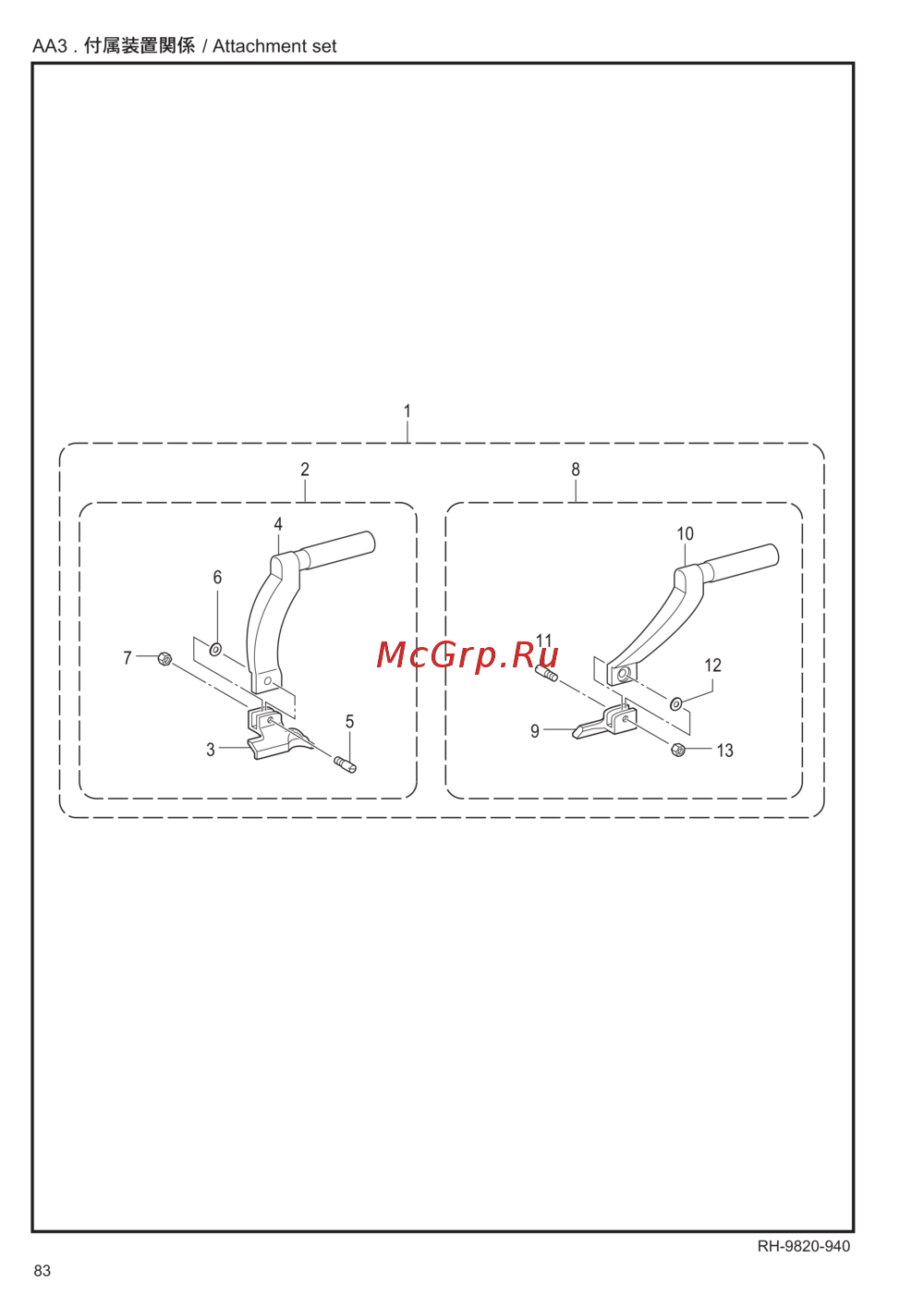

AA3 . / Attachment set
9
13
3
7
11
4
10
82
1
5
6
12
