85

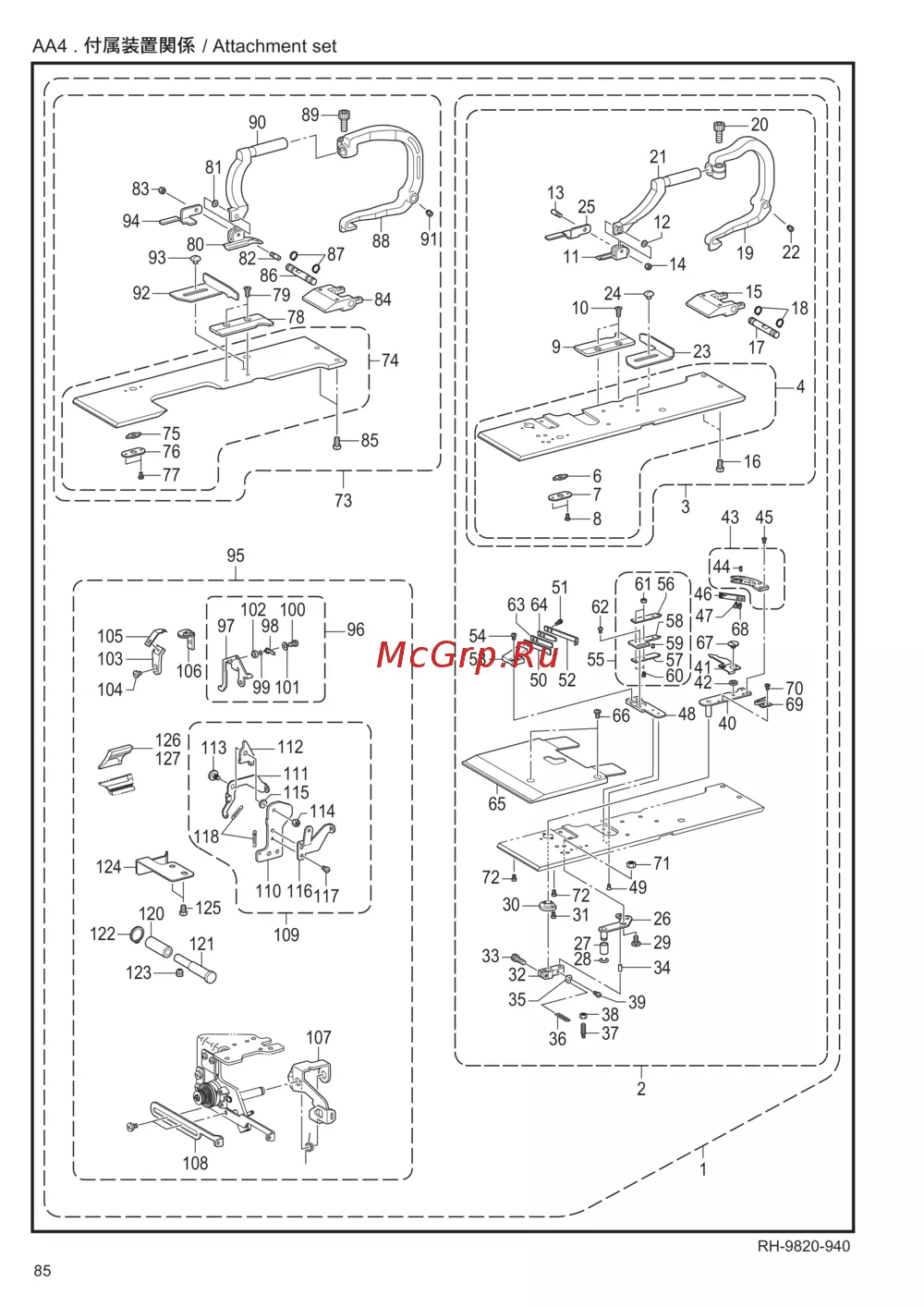

AA4. / Attachment set
REF.NO CODE Q'TY NAME OF PARTS RM
<For exchange parts>
<Exchange parts from -02 to -01>
1 SA7784001 1
EXCHANGE PARTS SET 01
2 SA7782001 1
PLATE ASSY RS 01
3 SA7055001 1
WORK CLAMP PLATE RS30 UNIT
4 SA7056001 1
WORK CLAMP PLATE RS ASSY
6 S35315001 1 OPENING SLIDE BLOCK
7 S35316001 1 SLIDE BLOCK SUPPORT PLATE
8 060020416 2
SCREW BIND M2X4
9 SA5673001 1 NEEDLE PLATE R-42
10 S06696004 2
SCREW, FLAT M3X6
11 S39932101 1 CLOTH WORK CLAMP, R-30
12 S35236000 1
WASHER, BENDING 3.2
13 S35235001 1
SUPPORT PIN, CLAMP
14 021300306 1 NUT 3 M3
15 SA5560001 1
CLAMP SHAFT HOLDER
16 062400816 2 SCREW PAN M4X8
17 SA5674001 1
CLAMP FULCRUM SHAFT
18 048060142 2
RETAINING RING EXTERNAL C6
19 SA5585001 1
CLAMP LEVER R
20 018501236 1
BOLT SOCKET M5X12
21 SA5576001 1
CLAMP ARM R
22 014400536 2
SET SCREW SOCKET(CP) M4X5
23 SA7550001 1
CROTH GUIDE R
24 S35326101 1
SCREW M3.5
25 S35330001 1
WORK CLAMP PLATE, R
26 SA7526001 1
THREAD TRIMMER LINK LEVER ASSY
27 SA7778001 1
LINK LEVER ROLLER
28 137191051 1 STOP RING
29 SA5693001 1
SHOULDER SCREW M4
30 S34906100 1
BUSH TR TRIMMER ARM
31 062260516 2 SCREW PAN M2.6X5
32 S34905101 1
THREAD CUTTER LEVER ARM
33 018401036 1
BOLT SOCKET M4X10
34 S37858000 1
NEEDLE PIN, 4X8
35 S34903001 1
SPRING HOOK
36 S34883001 1
SPRING, EXTENSION
37 S34902001 1
SPRING HOOK
38 021350106 1 NUT 1 M3.5
39 062260406 1 SCREW PAN M2.6X4
40 S34901001 1
THREAD TRIMMER ARM
41 S34900001 1
OPENER, ;T-NIPPER
42 153219001 1 COLLAR, ;MOVABLE KNIFE
43 S34899001 1 MOVABLE KNIFE ASSY
44 S34898001 1
PIN, SPRING 1.4
45 141542001 3
SCREW 3.18
46 SA7076001 1
THREAD HANDLER
47 S01694001 1
SCREW, FLAT SM2.38X4
48 S34896001 1
BRACKET, ;FIXED KNIFE
49 061300416 2 SCREW FLAT M3X4
50 S34895001 1 FIXED KNIFE
51 018260832 2
BOLT, SOCKET M2.6X8
52 S34894001 1 THREAD GUIDE PLATE
53 S34893001 1
SETTING BRACKET FIXED KNIFE
54 062300512 2 SCREW PAN M3X5
55 S34889101 1 THREAD NIPPER ASSY
56 S34890001 1 THREAD NIPPER, U
57 S34891101 1 THREAD NIPPER, D
58 S34888101 1 THREAD NIPPER, M
59 S34892001 1
OPENER PIN
60 062020416 2 SCREW PAN M2X4
61 021020106 2 NUT 1 M2
