Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
340

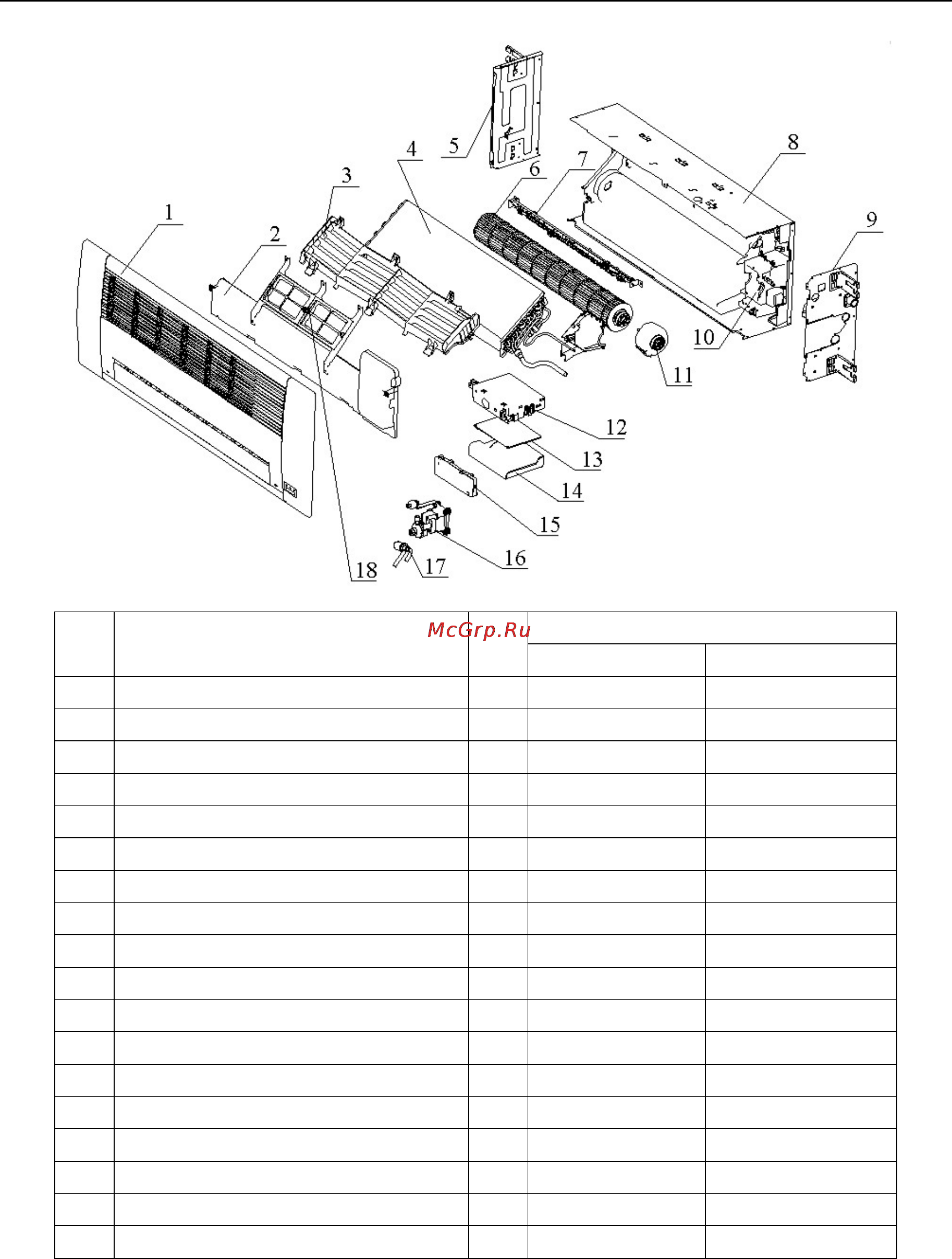

5.3.3 Single-side Cassette Unit_Exploded view and Parts List
GMV(L)-R22Td/Na-KParts List
S/N Part Name Qty
Code
GMV-R22Td/Na-K GMVL-R22Td/Na-K
1 Panel Assy（MT01 top） 1 TL1000120 TL1000120
2 Water Tray Assy 1 12412702 12412702
3 Water Diversion 1 24212708 24212708
4 Evaporator Assy 1 01024103 01024103
5 Right Side Plate Assy 1 01302729 01302729
6 Cross Flow Fan 1 10352701 10352701
7 Electric Heating Pipe Assy — —— ——
8 Soleplate Assy 1 01222714 01222714
9 Right Side PlateAssy 1 01302746 01302746
10 Rear Case Assy 1 22202702 22202702
11 Motor FN20Z 1 15018762 15018762
12 Electric boxAssy 1 01404655 01404697
13 Mainboard 1 30226034 30226033
14 Electric box cover plate 1 01412725 01412725
15 Protective Cover of Patching Board 1 222427221 222427221
16 Draining Pump 1 43132701 43132701
17 Electric expansion valve Assy 1 07334129 07334129
18 Support 1 01792703 01792703
