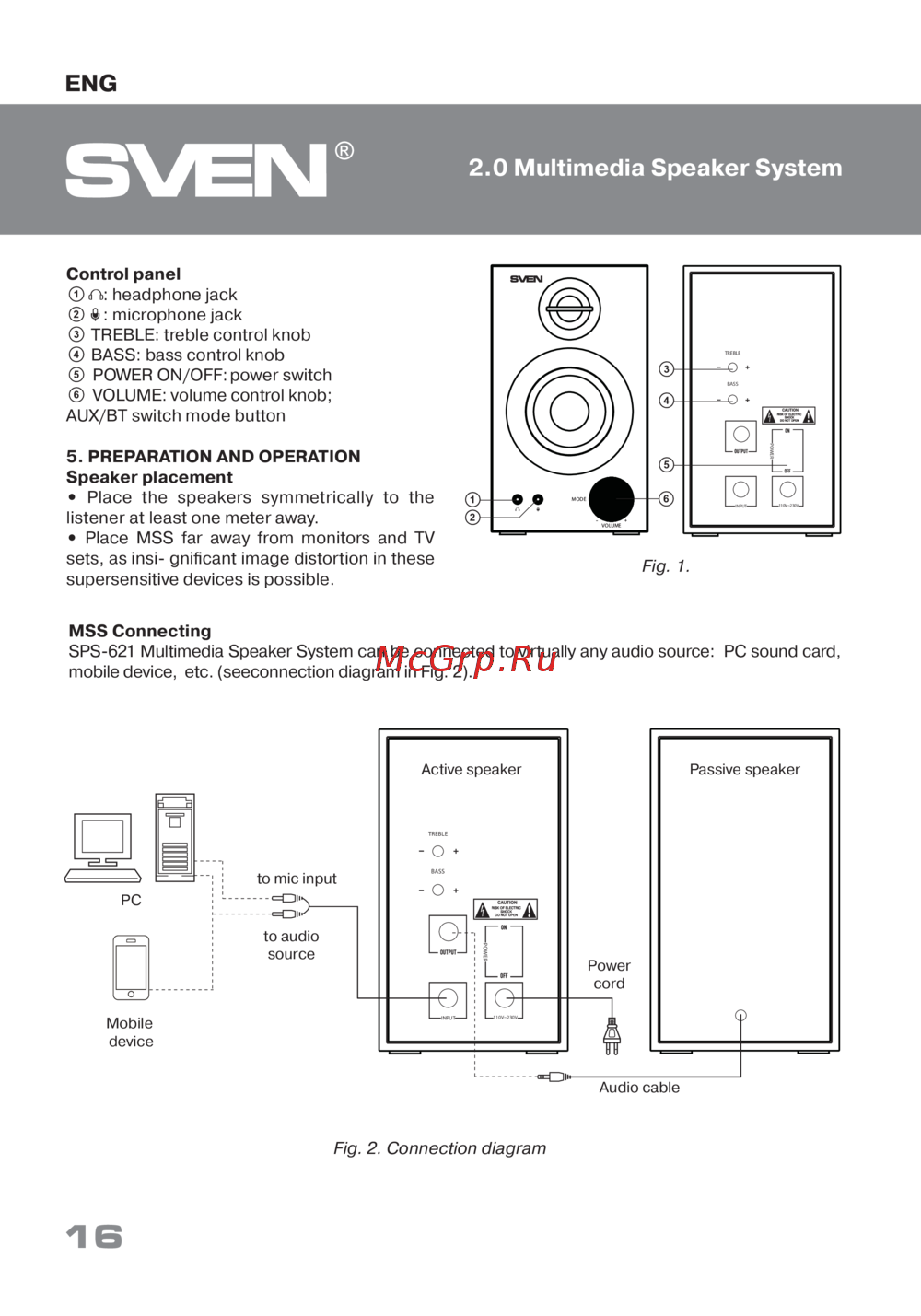

Sven SPS-621 [16/20] Multimedia speaker system

Sven SPS-621 [16/20] Multimedia speaker system
Fig. 2. Connection diagram
to mic input
PC
Control panel
a : headphone jack
b : microphone jack
c TREBLE: treble control knob
d BASS: bass control knob
e POWER ON/OFF : power switch
f VOLUME: volume control knob;
AUX/BT switch mode button
5. PREPARATION AND OPERATION
Speaker placement
Place the speakers symmetrically to the
listener at least one meter away.
Place MSS far away from monitors and TV
sets, as insi- gnificant image distortion in these
supersensitive devices is possible.
MMOODDEE
VV OOLLUUMMEE
BASS
TREBLE
POWER
110V~230V
INPUT
Fig. 1.
a
b
c
d
e
f
MSS Connecting
SPS-621 Multimedia Speaker System can be connected to virtually any audio source: PC sound card,
mobile device, etc. (seeconnection diagram in Fig. 2).
Mobile
device
BASS
TREBLE
POWER
110V~230V
INPUT
Active speaker Passive speaker
to audio
source
Power
cord
16
ENG
2.0 Multimedia Speaker System
Audio cable
