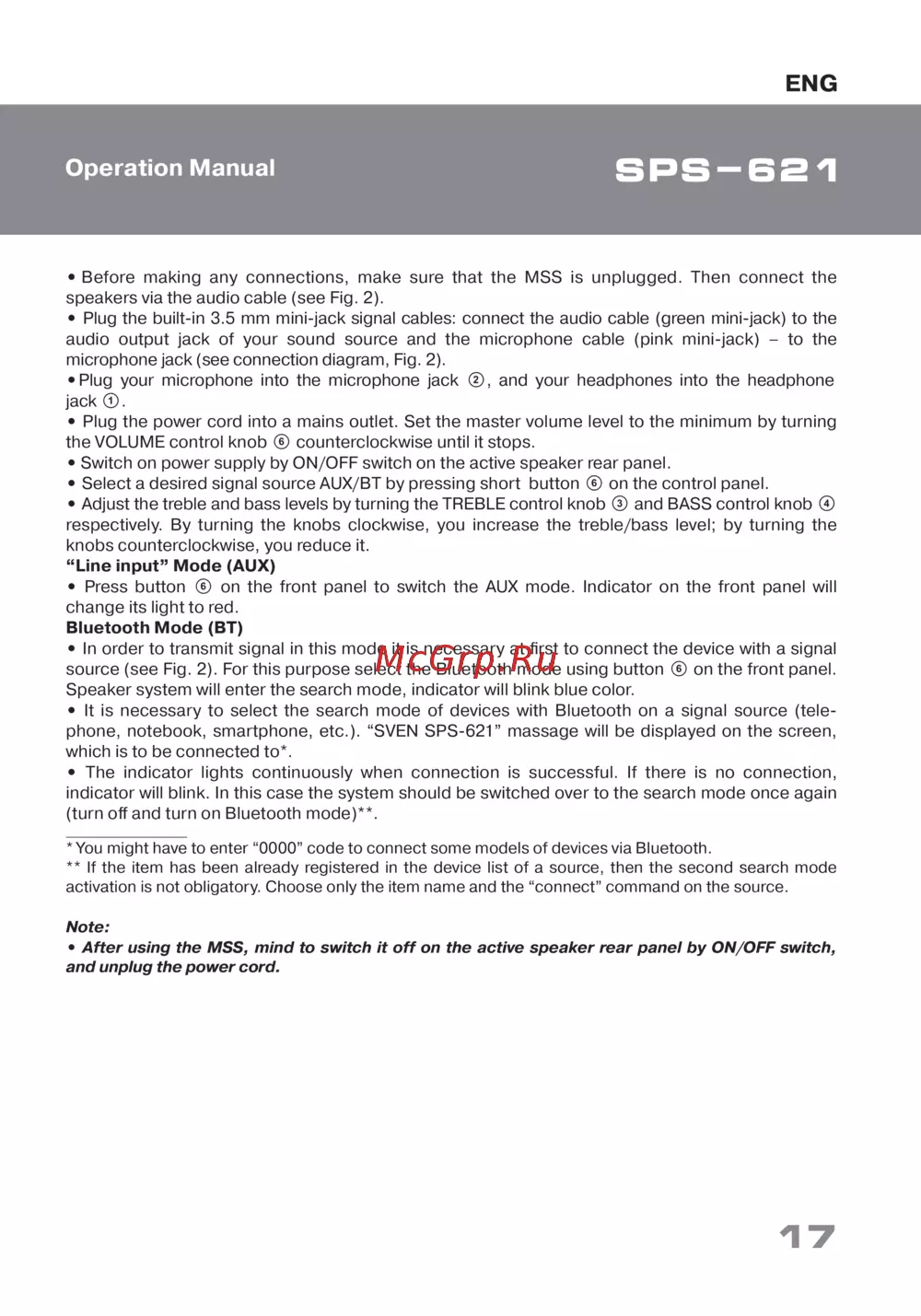

Sven SPS-621 [17/20] Sps 621

•

Before making any connections, make sure that the MSS is unplugged. Then connect the

speakers via the audio cable (see Fig. 2).

• Plug the built-in 3.5 mm mini-jack signal cables: connect the audio cable (green mini-jack) to the

audio output jack of your sound source and the microphone cable (pink mini-jack) – to the

microphone jack (see connection diagram, Fig. 2).

•

Plug your microphone into the microphone jack b, and your headphones into the headphone

jack a.

• Plug the power cord into a mains outlet. Set the master volume level to the minimum by turning

the VOLUME control knob f counterclockwise until it stops.

• Switch on power supply by ON/OFF switch on the active speaker rear panel.

• Select a desired signal source AUX/BT by pressing short button f on the control panel.

• Adjust the treble and bass levels by turning the TREBLE control knob c and BASS control knob d

respectively. By turning the knobs clockwise, you increase the treble/bass level; by turning the

knobs counterclockwise, you reduce it.

“Line input” Mode (AUX)

• Press button f on the front panel to switch the AUX mode. Indicator on the front panel will

change its light to red.

Bluetooth Mode (BT)

• In order to transmit signal in this mode it is necessary at ﬁrst to connect the device with a signal

source (see Fig. 2). For this purpose select the Bluetooth mode using button f on the front panel.

Speaker system will enter the search mode, indicator will blink blue color.

• It is necessary to select the search mode of devices with Bluetooth on a signal source (tele-

phone, notebook, smartphone, etc.). “SVEN SPS-621” massage will be displayed on the screen,

which is to be connected to*.

• The indicator lights continuously when connection is successful. If there is no connection,

indicator will blink. In this case the system should be switched over to the search mode once again

(turn oﬀ and turn on Bluetooth mode)**.

* You might have to enter “0000” code to connect some models of devices via Bluetooth.

** If the item has been already registered in the device list of a source, then the second search mode

activation is not obligatory. Choose only the item name and the “connect” command on the source.

Note:

• After using the MSS, mind to switch it off on the active speaker rear panel by ON/OFF switch,

and unplug the power cord.
