5. PREPARATION AND OPERATION

Speaker placement

• Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits

non-directional sound, therefore it can be located in any place of the room where it sounds the best.

• Place MSS as far away as possible from monitors and TV sets, to avoid insignicant image

distortion.

Installation and operation

MS-2020 speaker system can be connected to virtually any audio devices: PCs, laptops, etc. (see

connection diagram in Fig. 5).

• Before making any connections, make sure the MSS is o and unplugged. Then connect

speakers to the subwoofer OUTPUT L/R i jacks using built-in audio cables. Connect the right

speaker to the subwoofer OUTPUT R and the left speaker — to the OUTPUT L (see connection

diagram in Fig. 5).

Note. Check the xation connectors.

• To wired connect the MSS use mini-jack to mini-jack signal cable (included). Connect

thesubwoofer to the mains outlet with the power cord j.

• Turn on the MSS power supply using switch (k, ON) (ON position) on the subwoofer rear panel.

• Turn on the MSS by pressing button b on the front panel or a button on the remote control.

Select a desired signal source by pressing short SOURCE b button on the control panel or pressing

SOURCE b button on the remote control.

• Adjust the master volume as desired with knob d on the control panel or with the VOL+/-

buttons e on the remote control.

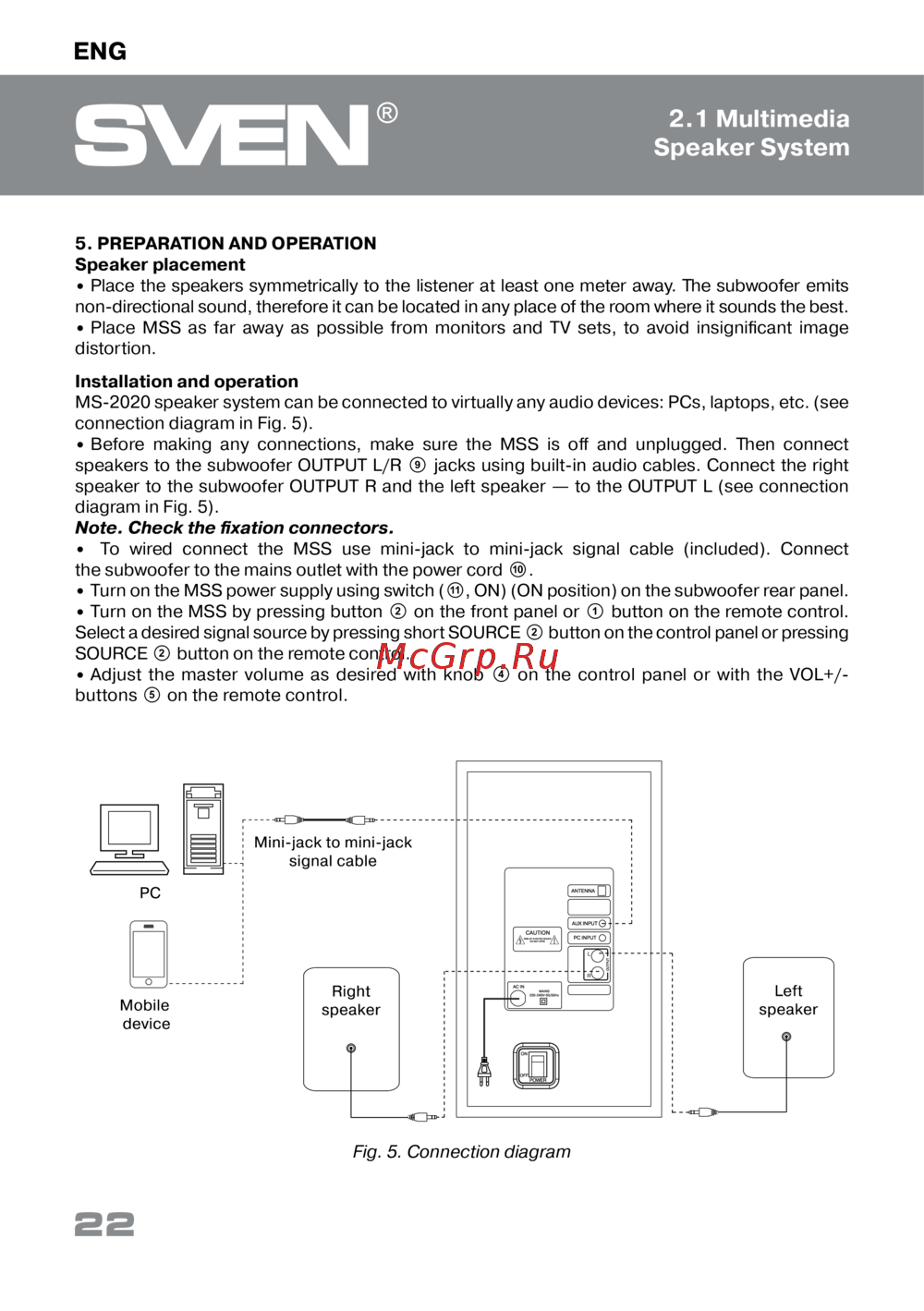

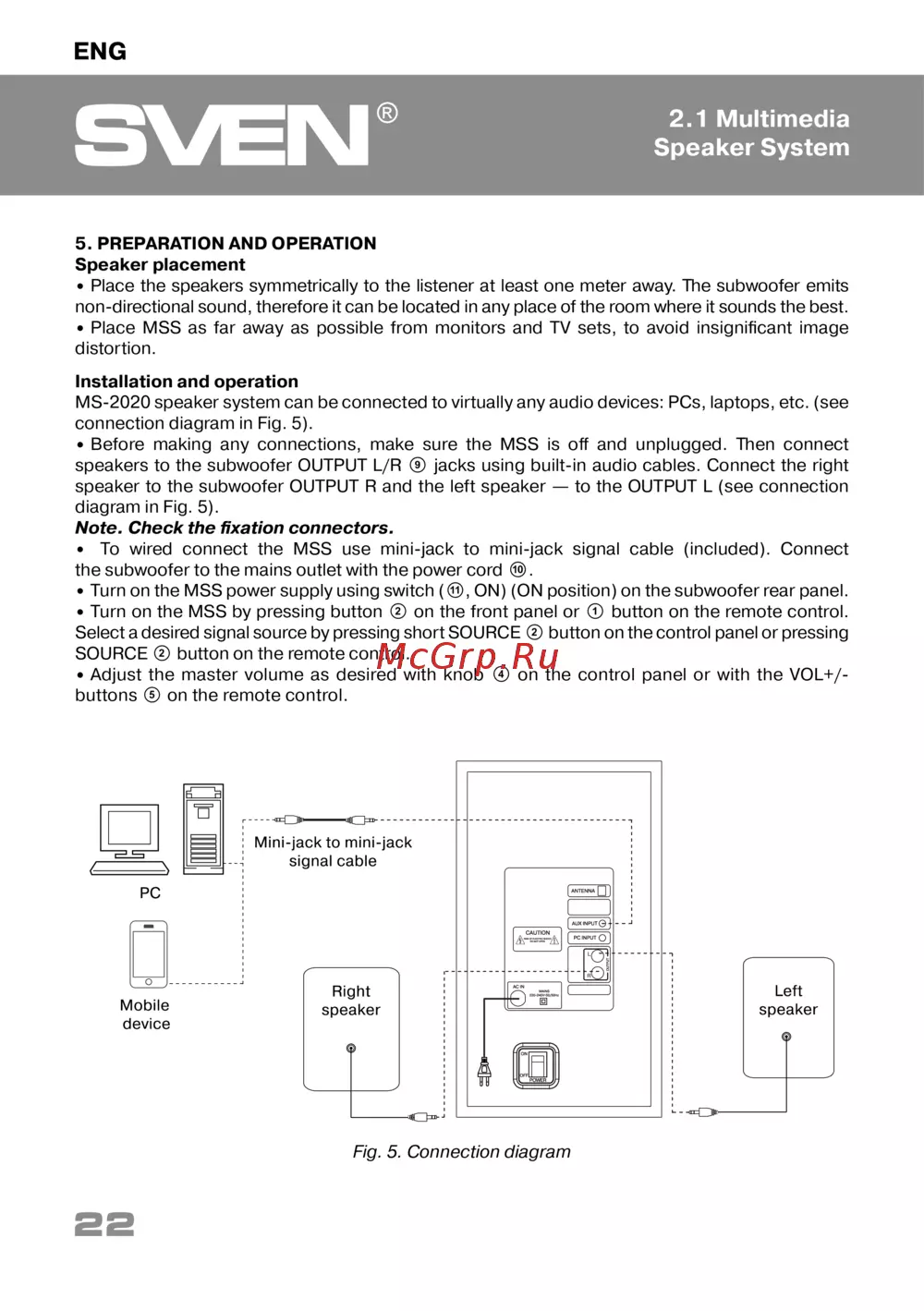

Fig. 5. Connection diagram
