Gigabyte MZ32-AR0 (rev. 1.0) [101/146] 3 5 7 espi configuration options

- 101 - BIOS Setup

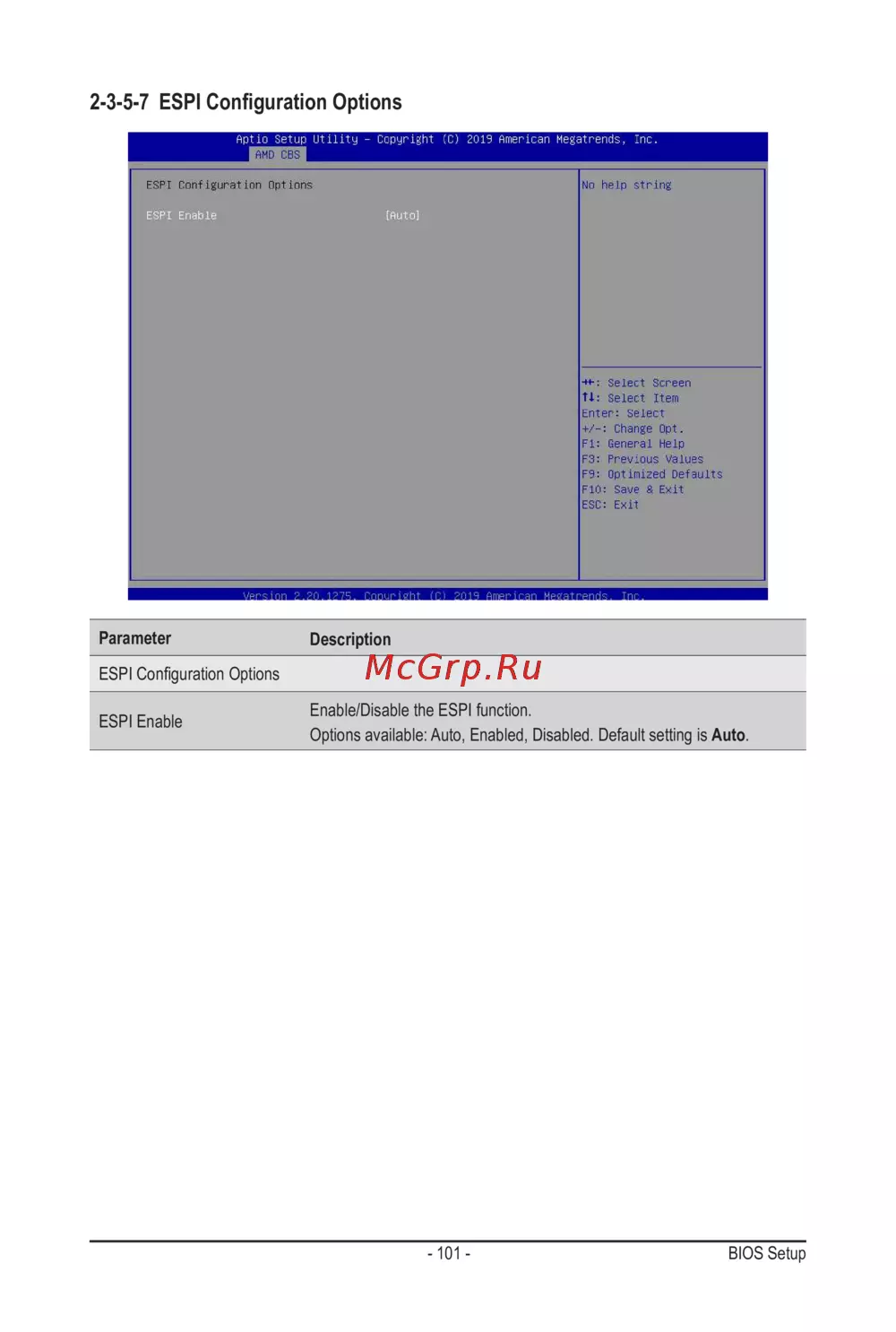

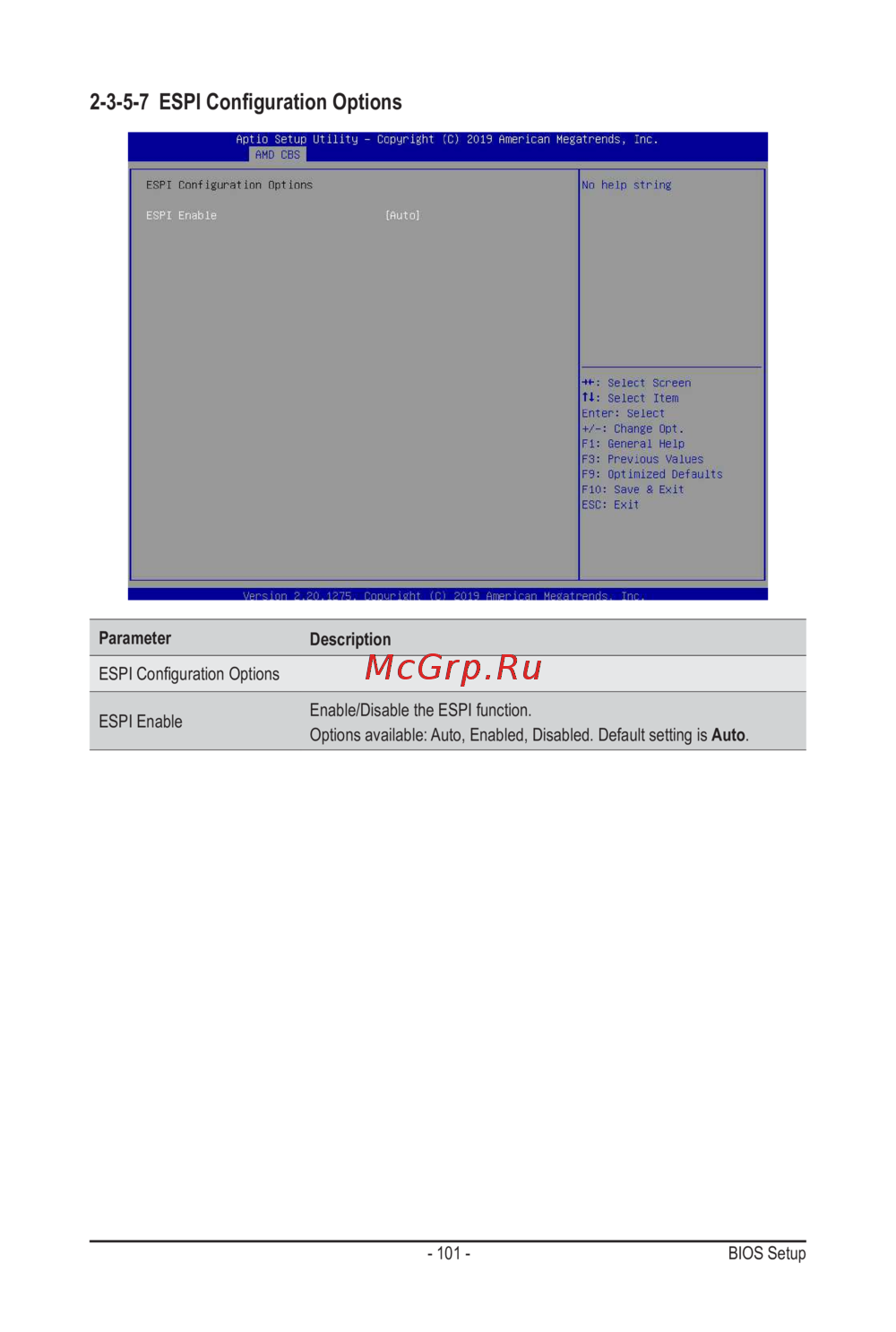

2-3-5-7 ESPI Conguration Options

Parameter

Description

ESPICongurationOptions

ESPI Enable

Enable/Disable the ESPI function.

Options available: Auto, Enabled, Disabled. Default setting is Auto.
