Gigabyte MZ32-AR0 (rev. 1.0) [104/146] 3 6 ntb common options

BIOS Setup - 104 -

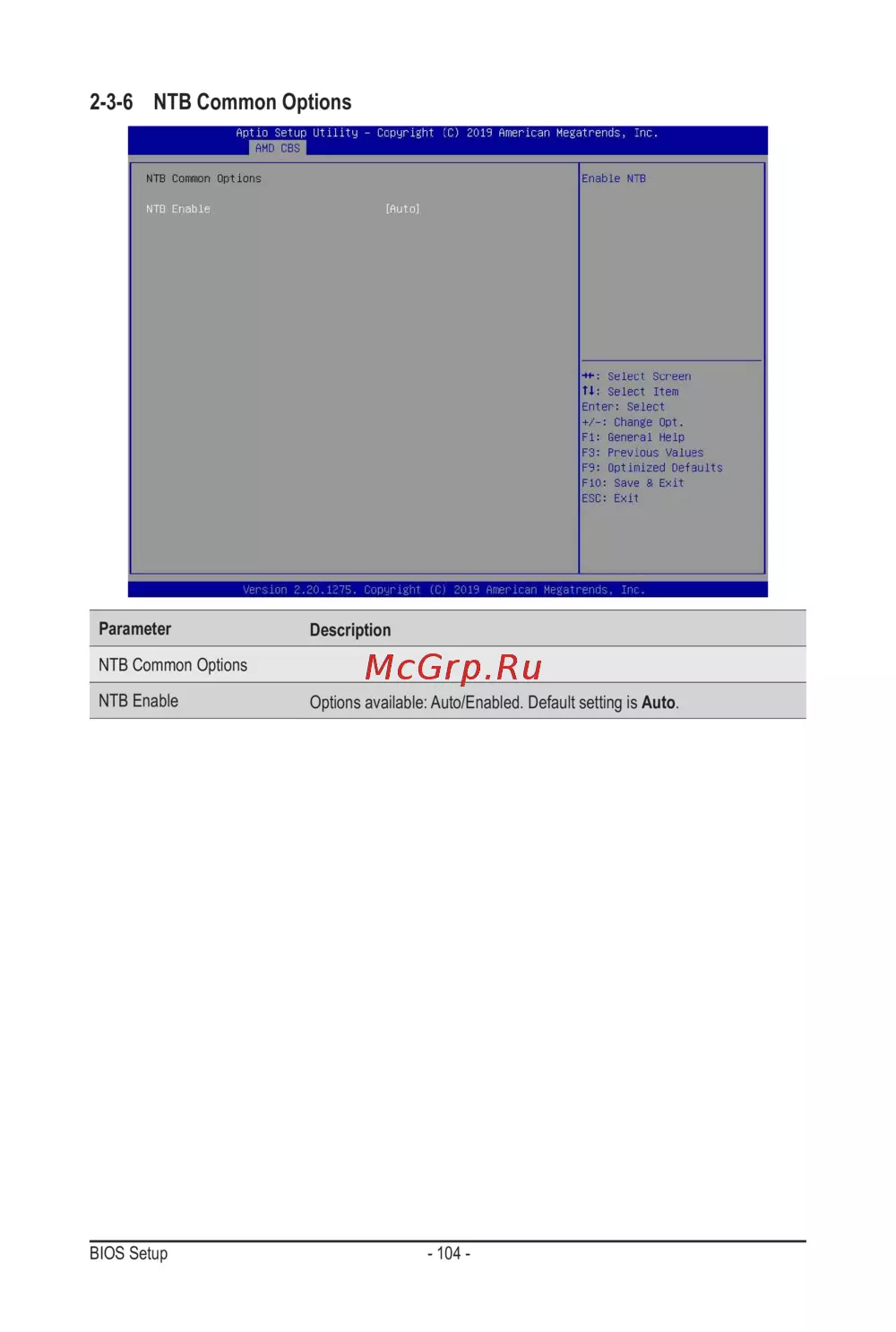

2-3-6 NTB Common Options

Parameter

Description

NTB Common Options

NTB Enable

Options available: Auto/Enabled. Default setting is Auto.
