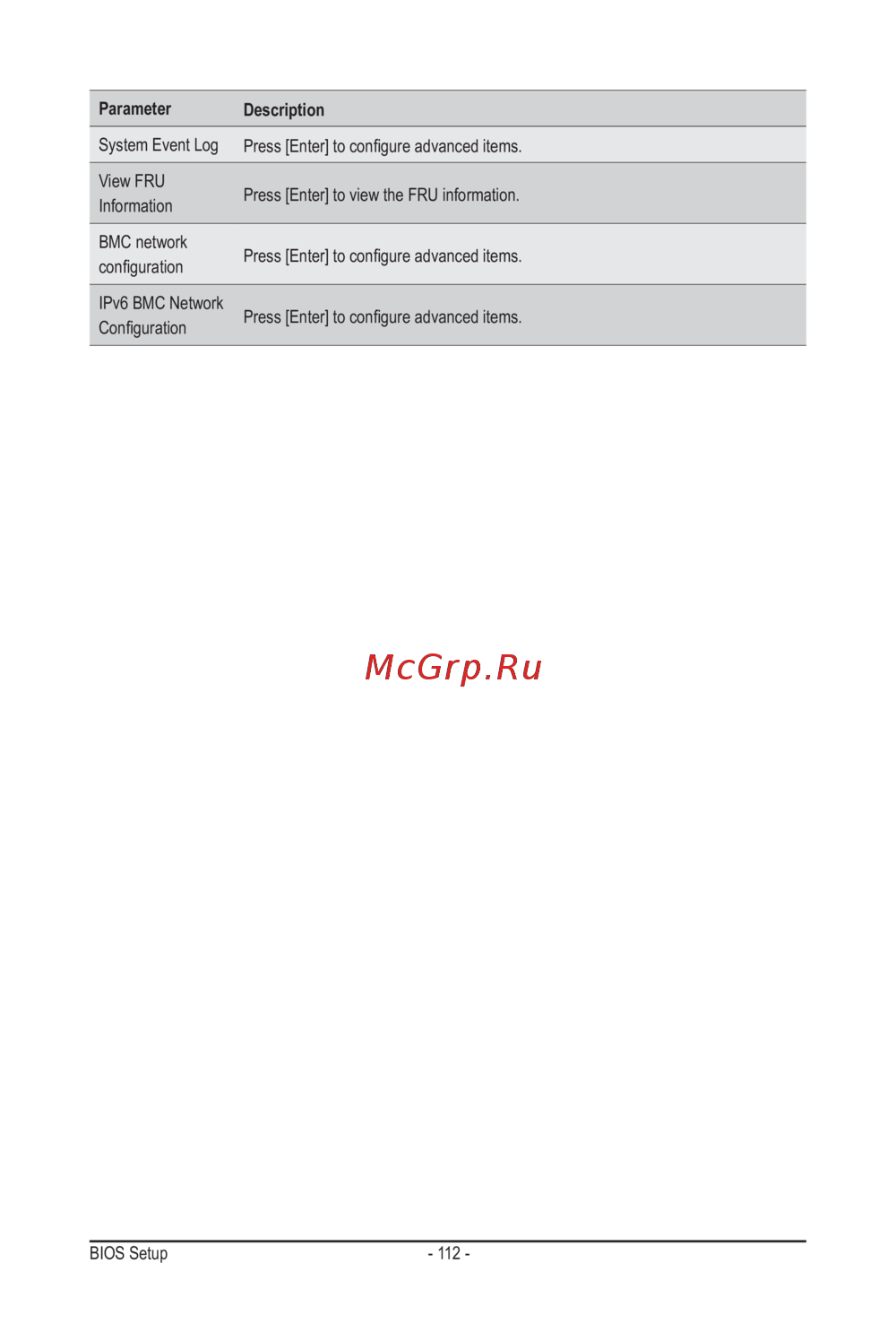

BIOS Setup - 112 -

Parameter

Description

System Event Log

Press[Enter]tocongureadvanceditems.

View FRU

Information

Press [Enter] to view the FRU information.

BMC network

conguration

Press[Enter]tocongureadvanceditems.

IPv6 BMC Network

Conguration

Press[Enter]tocongureadvanceditems.
