Hardware Installation - 26 -
CPU
DIMM_P0_A1
DIMM_P0_A0
DIMM_P0_B0
DIMM_P0_B1
DIMM_P0_C0
DIMM_P0_C1
DIMM_P0_D0
DIMM_P0_D1
DIMM_P0_F0
DIMM_P0_F1
DIMM_P0_G0
DIMM_P0_G1
DIMM_P0_H0
DIMM_P0_H1
DIMM_P0_E0
DIMM_P0_E1

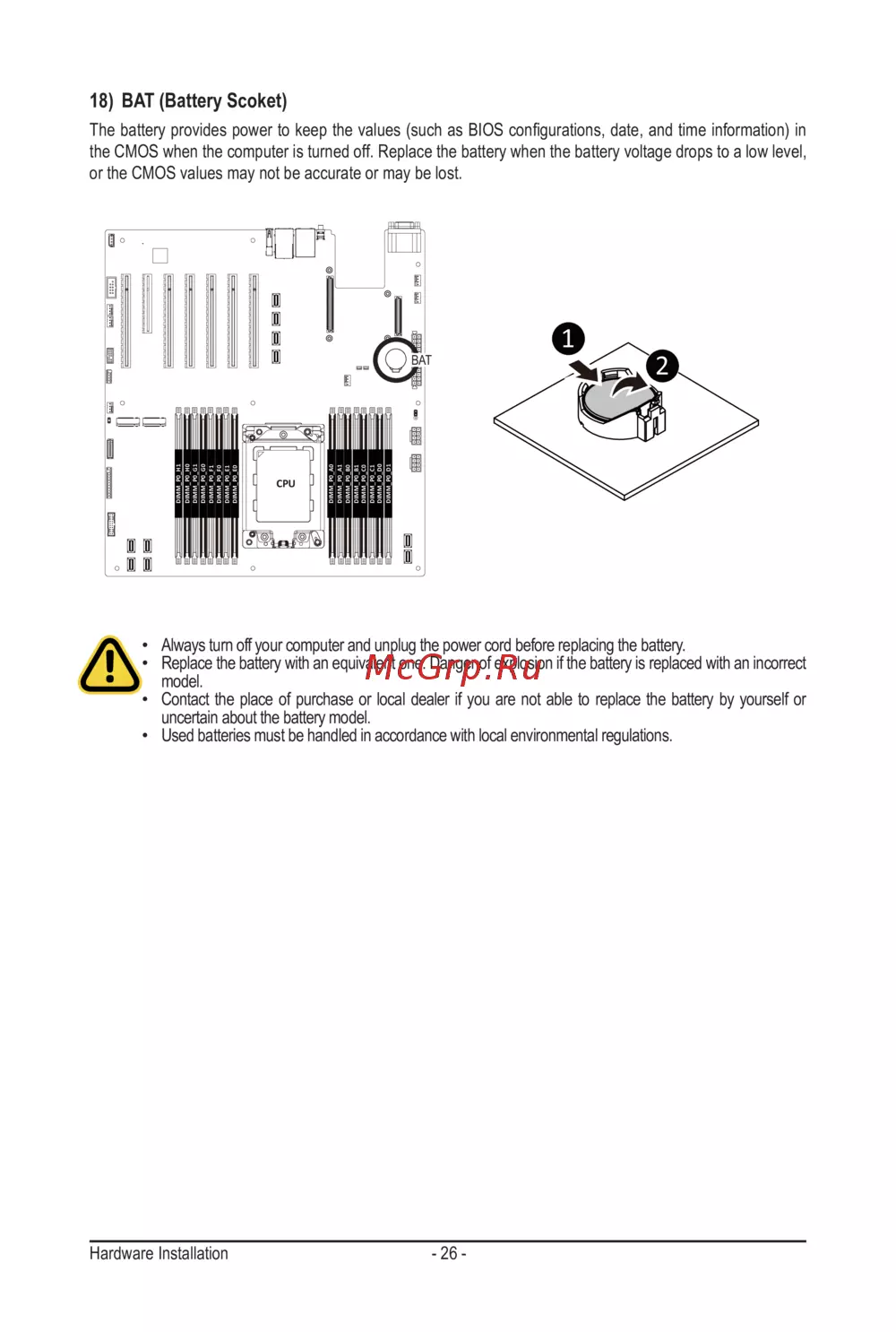

18) BAT (Battery Scoket)
Thebatteryprovidespowertokeepthevalues(suchasBIOScongurations,date,andtimeinformation)in
the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level,
or the CMOS values may not be accurate or may be lost.
•
Always turn off your computer and unplug the power cord before replacing the battery.
•
Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect
model.
•
Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or
uncertain about the battery model.
•
Used batteries must be handled in accordance with local environmental regulations.
BAT
1
2
