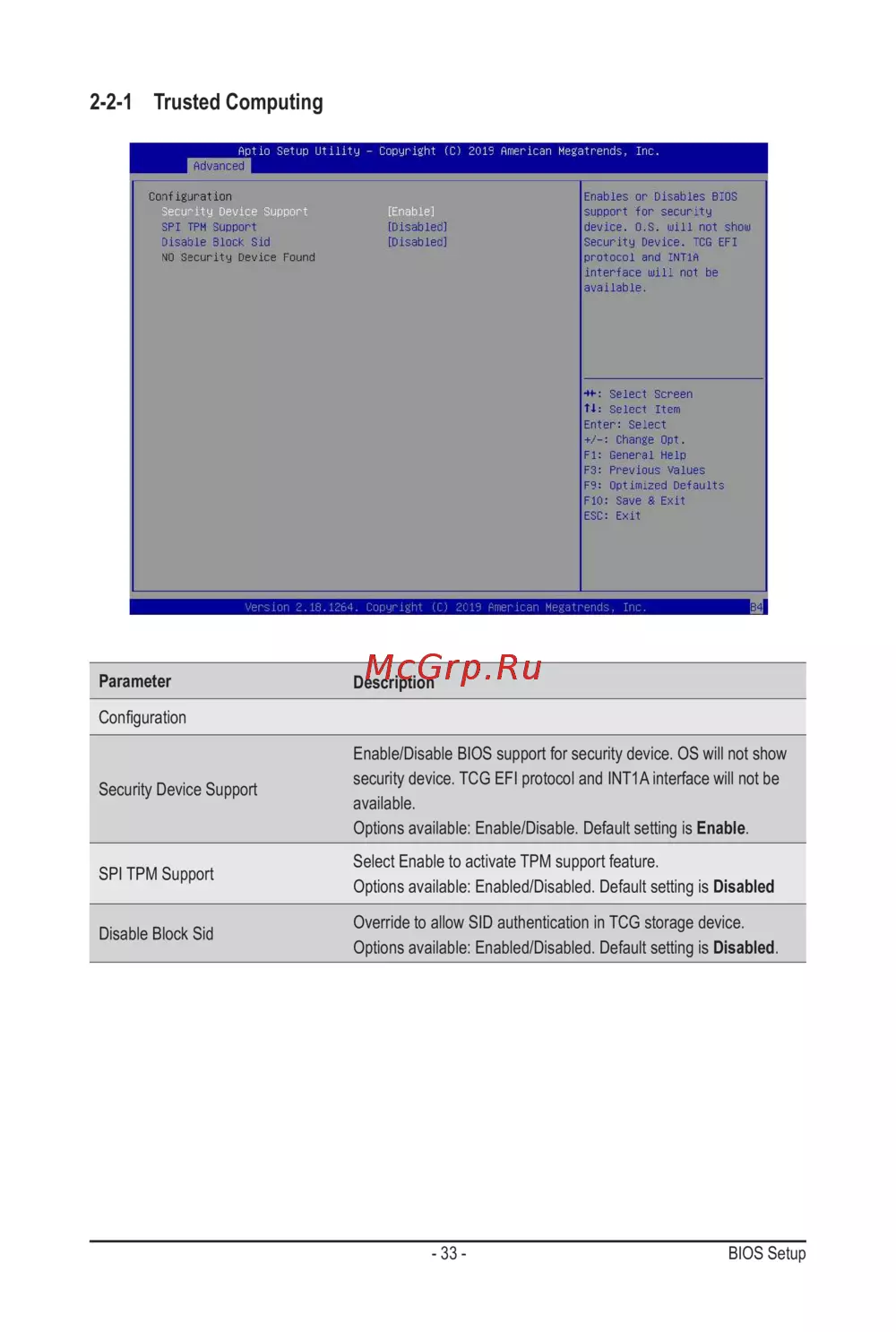

- 33 - BIOS Setup

2-2-1 Trusted Computing

Parameter

Description

Conguration

Security Device Support

Enable/Disable BIOS support for security device. OS will not show

security device. TCG EFI protocol and INT1A interface will not be

available.

Options available: Enable/Disable. Default setting is Enable.

SPI TPM Support

Select Enable to activate TPM support feature.

Options available: Enabled/Disabled. Default setting is Disabled

Disable Block Sid

Override to allow SID authentication in TCG storage device.

Options available: Enabled/Disabled. Default setting is Disabled.
