Gigabyte MZ32-AR0 (rev. 1.0) [34/146] 2 2 psp firmware versions

BIOS Setup - 34 -

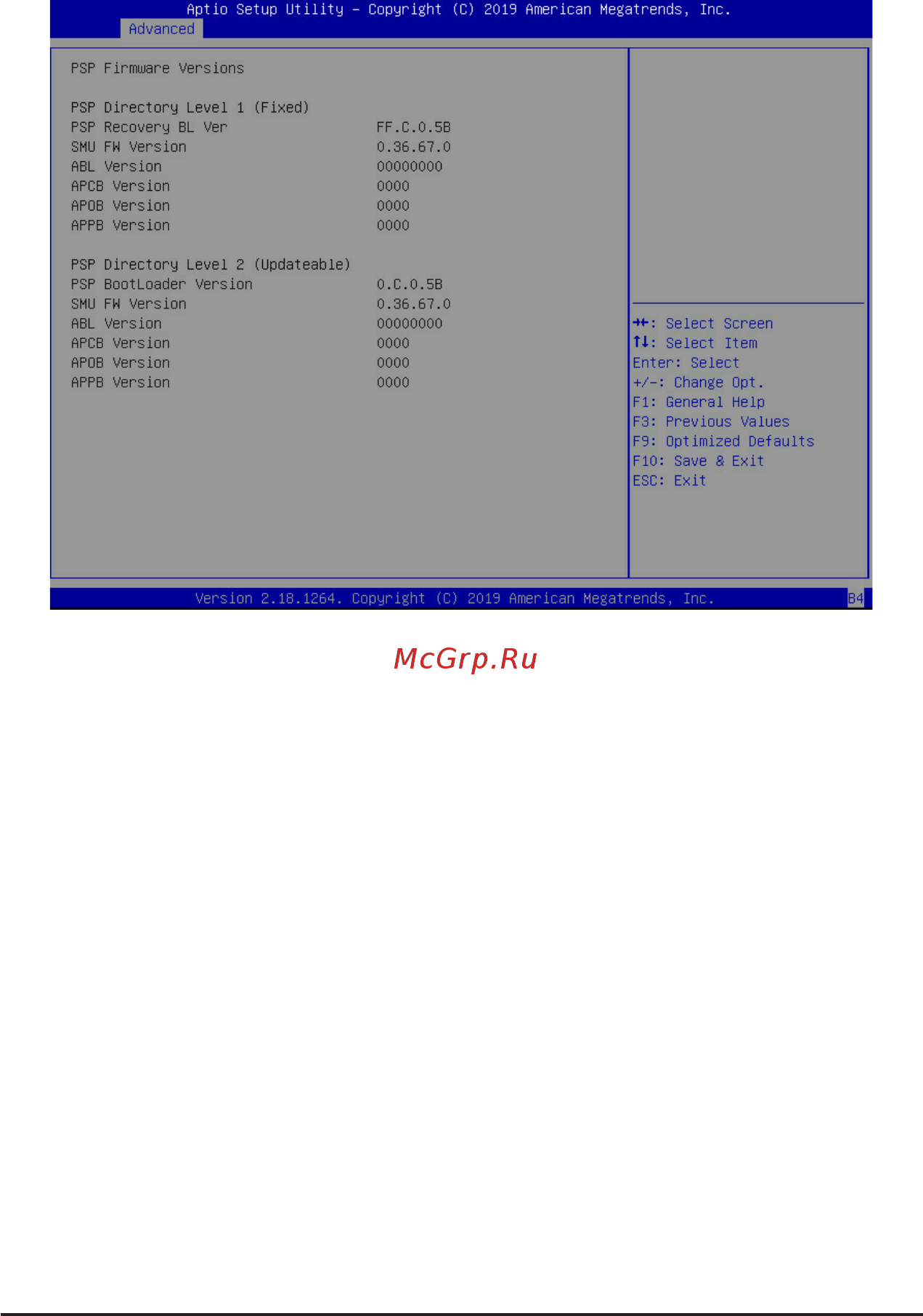

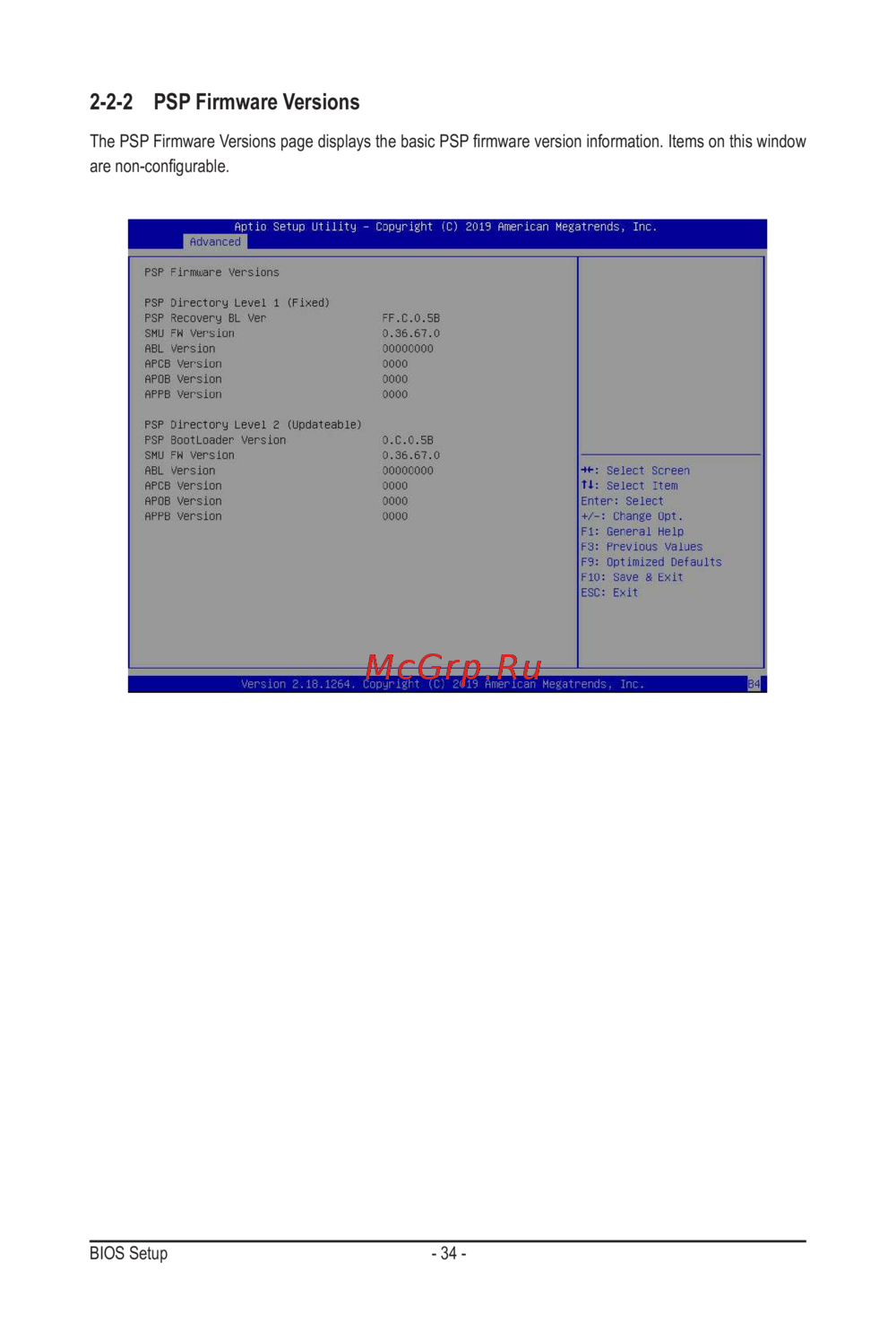

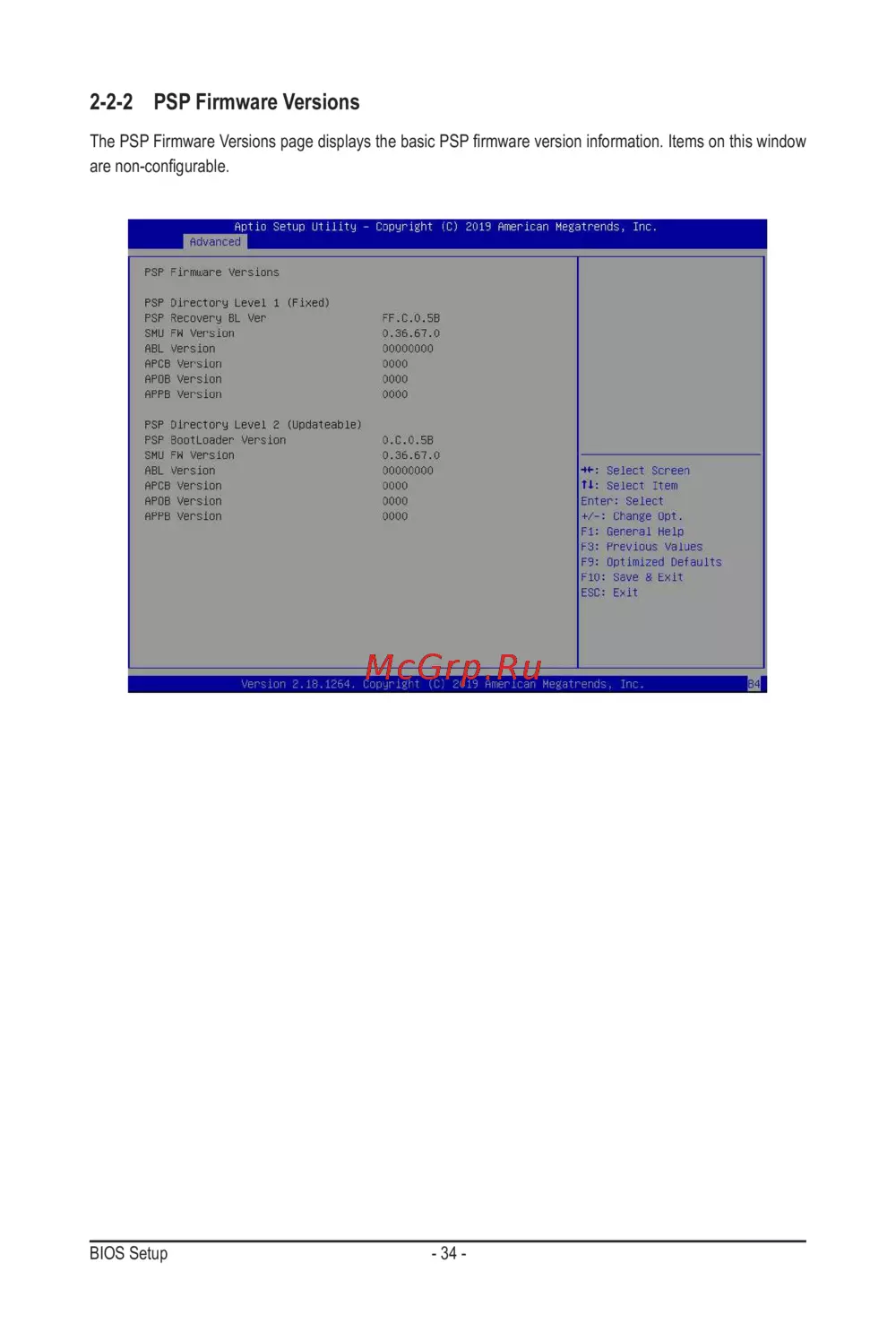

2-2-2 PSP Firmware Versions

ThePSPFirmwareVersionspagedisplaysthebasicPSPrmwareversioninformation.Itemsonthiswindow

arenon-congurable.
