Gigabyte MZ32-AR0 (rev. 1.0) [49/146] 2 10 nvme configuration

- 49 - BIOS Setup

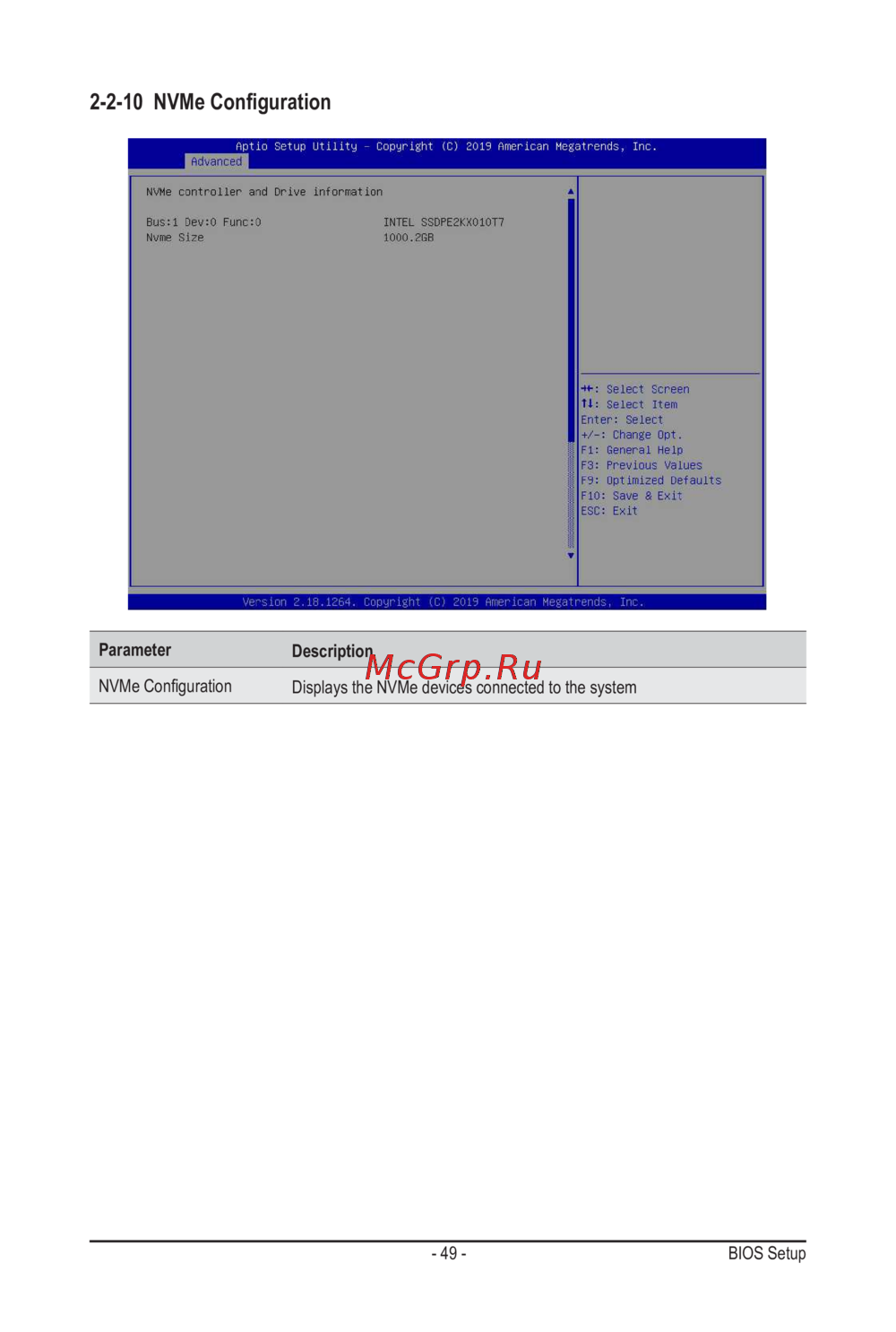

2-2-10 NVMe Conguration

Parameter

Description

NVMeConguration

Displays the NVMe devices connected to the system
