Gigabyte MZ32-AR0 (rev. 1.0) [50/146] 2 11 sata configuration

BIOS Setup - 50 -

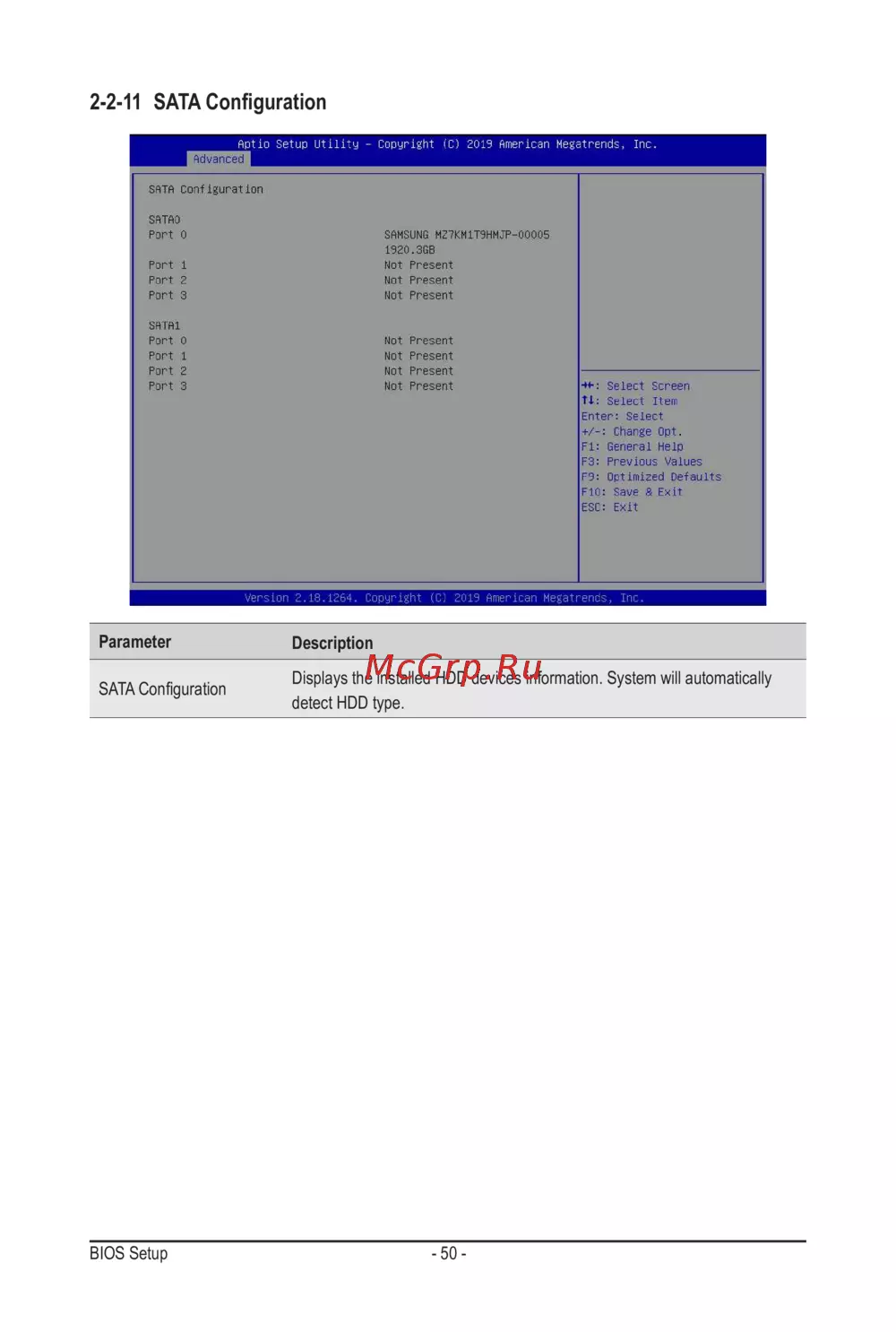

2-2-11 SATA Conguration

Parameter

Description

SATAConguration

Displays the installed HDD devices information. System will automatically

detect HDD type.
