Инструкция Страница: 53

Gigabyte MZ32-AR0 (rev. 1.0) [53/146] 2 14 iscsi configuration

- 53 - BIOS Setup

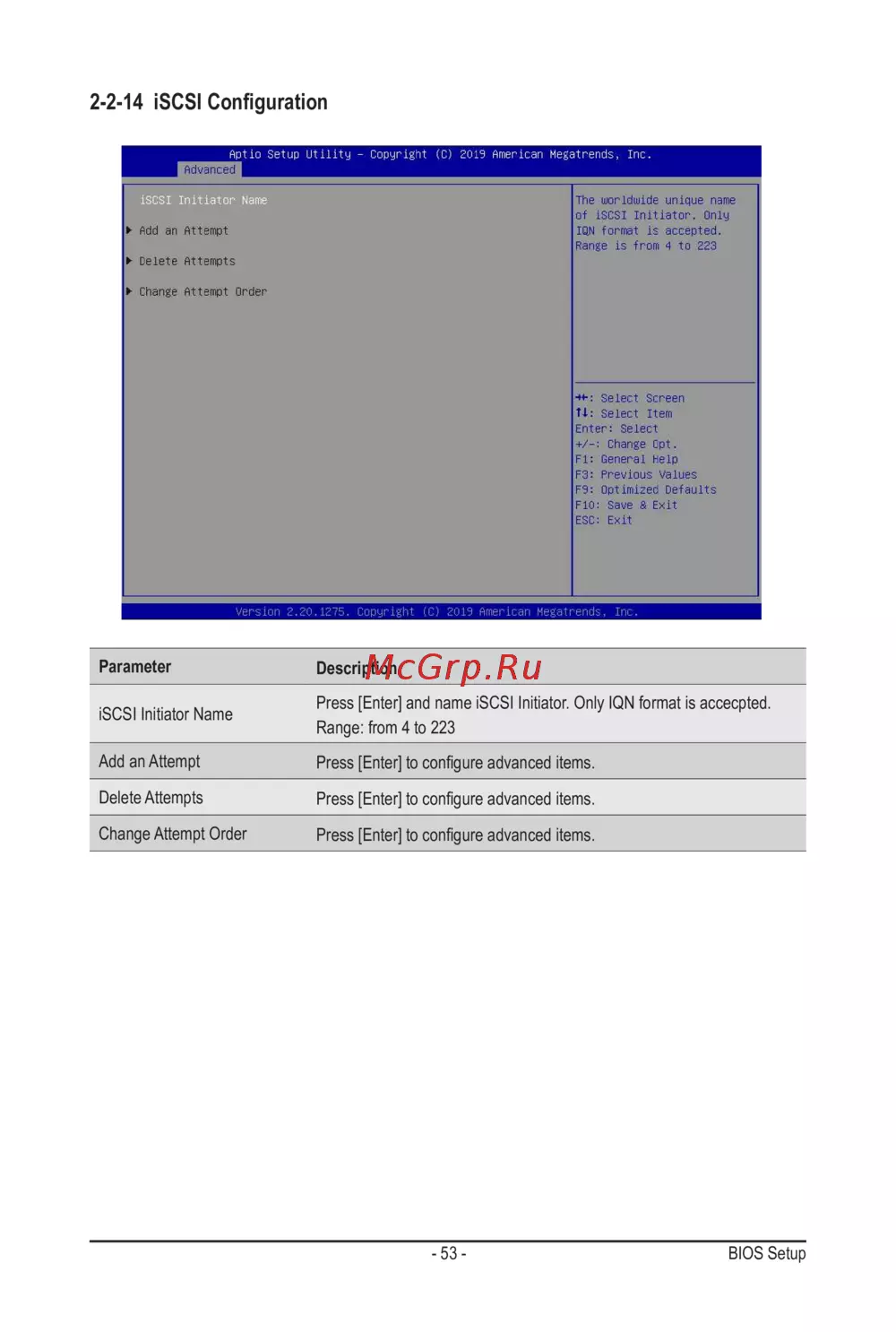

2-2-14 iSCSI Conguration

Parameter

Description

iSCSI Initiator Name

Press [Enter] and name iSCSI Initiator. Only IQN format is accecpted.

Range: from 4 to 223

Add an Attempt

Press[Enter]tocongureadvanceditems.

Delete Attempts

Press[Enter]tocongureadvanceditems.

Change Attempt Order

Press[Enter]tocongureadvanceditems.
