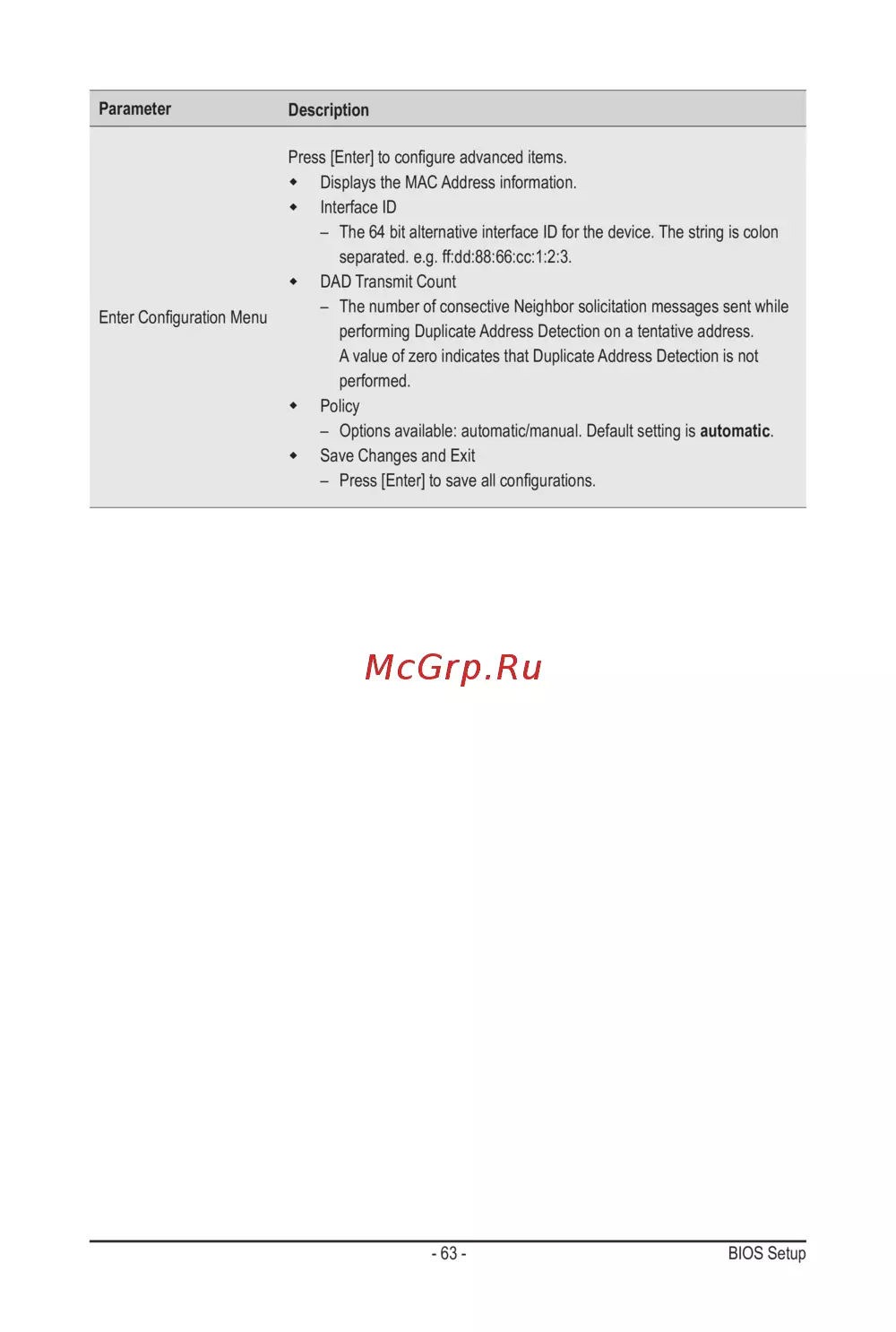

- 63 - BIOS Setup

Parameter

Description

EnterCongurationMenu

Press[Enter]tocongureadvanceditems.



Displays the MAC Address information.



Interface ID

– The 64 bit alternative interface ID for the device. The string is colon

separated. e.g. ff:dd:88:66:cc:1:2:3.



DAD Transmit Count

– The number of consective Neighbor solicitation messages sent while

performing Duplicate Address Detection on a tentative address.

A value of zero indicates that Duplicate Address Detection is not

performed.



Policy

– Options available: automatic/manual. Default setting is automatic.



Save Changes and Exit

– Press[Enter]tosaveallcongurations.
