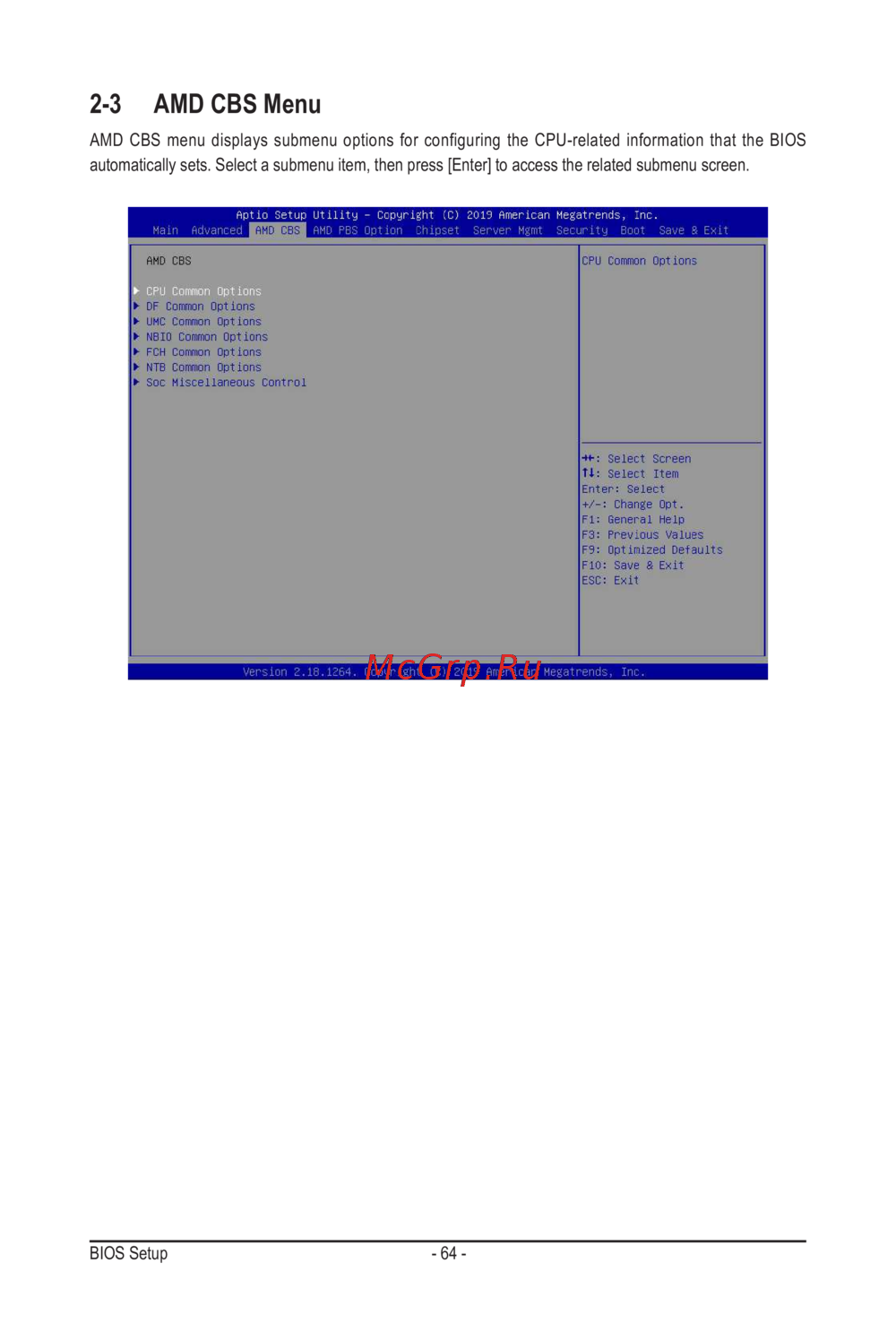

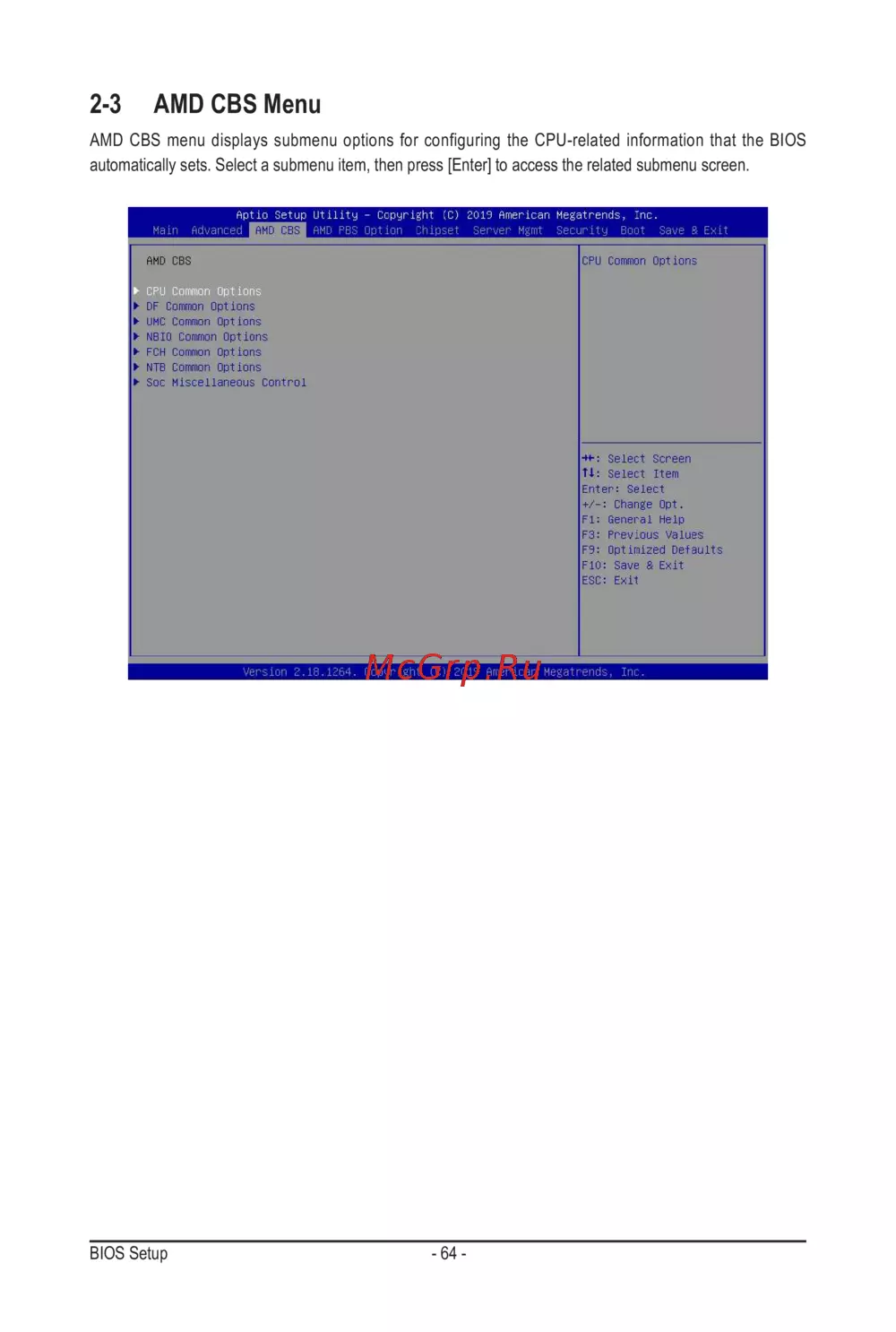

BIOS Setup - 64 -

2-3 AMD CBS Menu

AMD CBS menu displays submenu options for configuring the CPU-related information that the BIOS

automatically sets. Select a submenu item, then press [Enter] to access the related submenu screen.
