Gigabyte MZ32-AR0 (rev. 1.0) [69/146] 3 1 3 core watchdog

- 69 - BIOS Setup

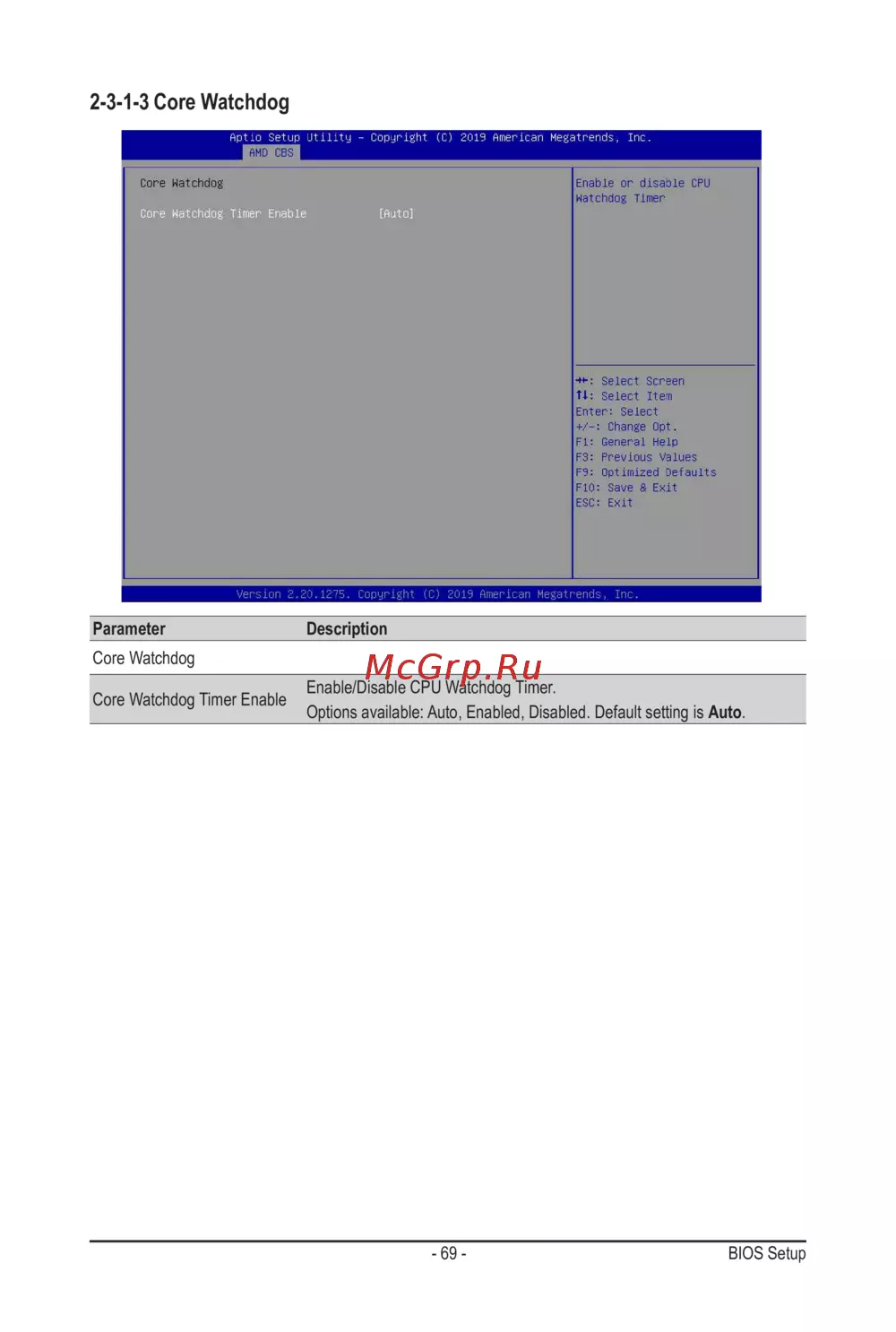

2-3-1-3 Core Watchdog

Parameter Description

Core Watchdog

Core Watchdog Timer Enable

Enable/Disable CPU Watchdog Timer.

Options available: Auto, Enabled, Disabled. Default setting is Auto.
