Gigabyte MZ32-AR0 (rev. 1.0) [78/146] 3 3 1 2 cad bus configuration

BIOS Setup - 78 -

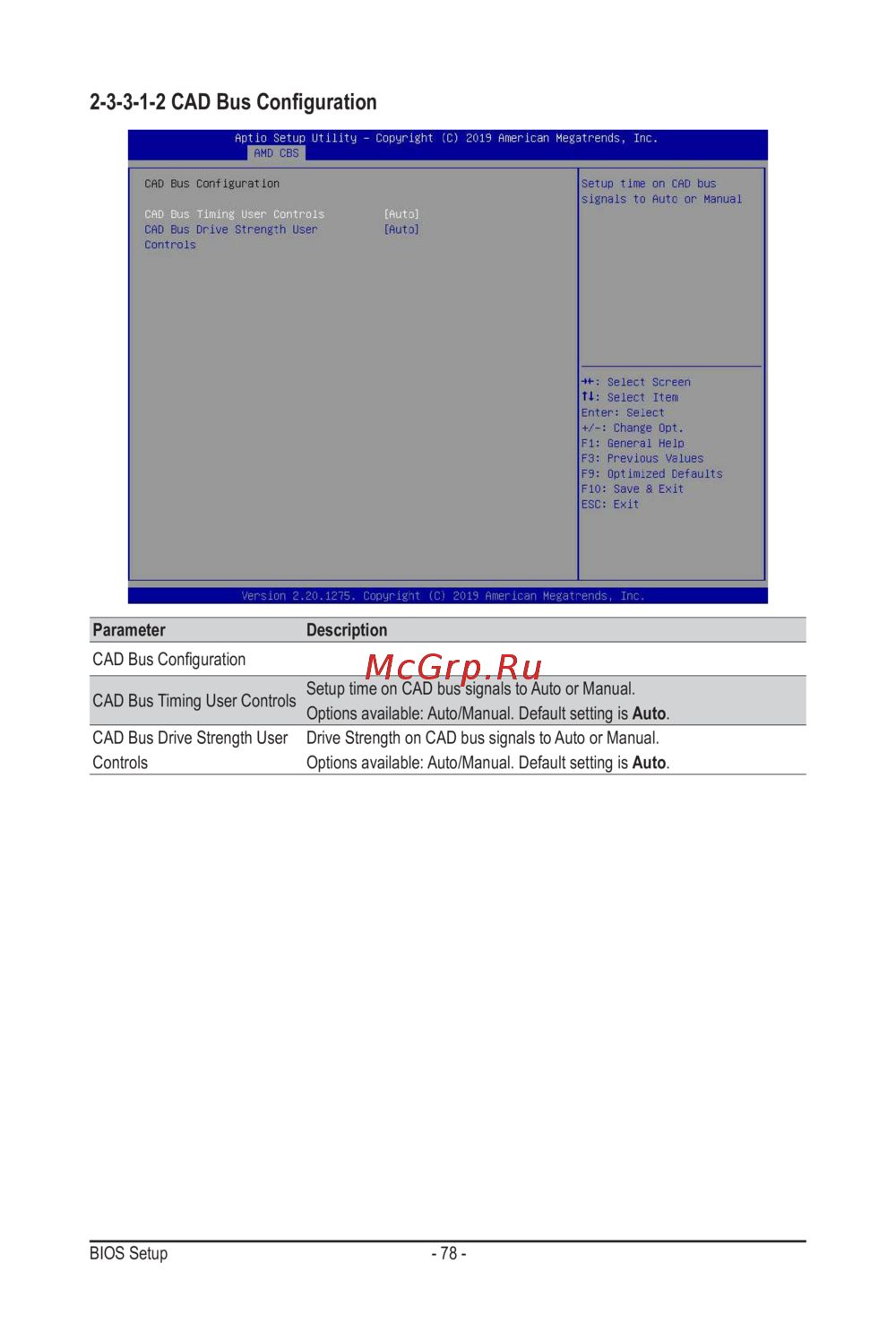

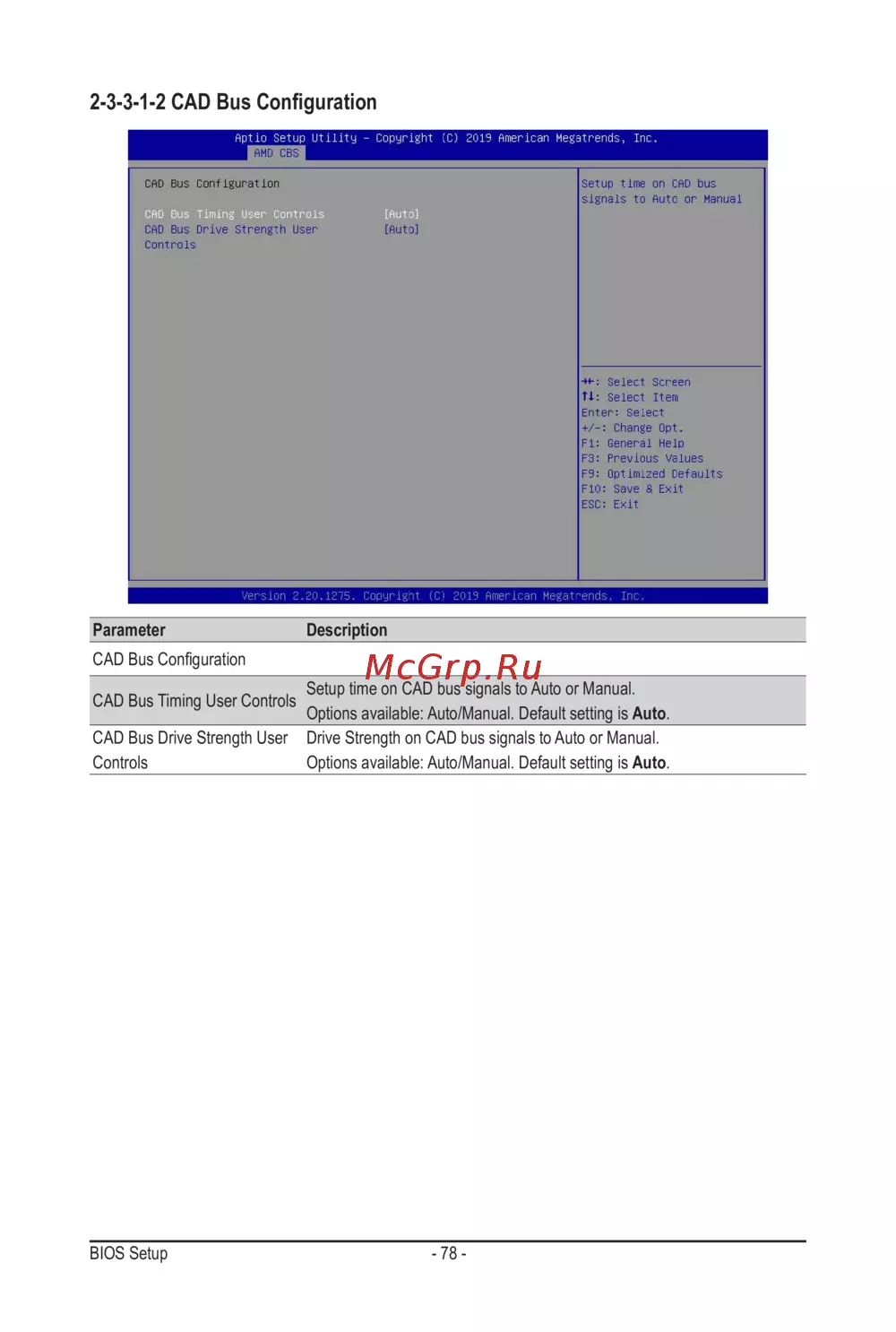

2-3-3-1-2 CAD Bus Conguration

Parameter Description

CADBusConguration

CAD Bus Timing User Controls

Setup time on CAD bus signals to Auto or Manual.

Options available: Auto/Manual. Default setting is Auto.

CAD Bus Drive Strength User

Controls

Drive Strength on CAD bus signals to Auto or Manual.

Options available: Auto/Manual. Default setting is Auto.
