Gigabyte MZ32-AR0 (rev. 1.0) [79/146] 3 3 1 3 data bus configuration

- 79 - BIOS Setup

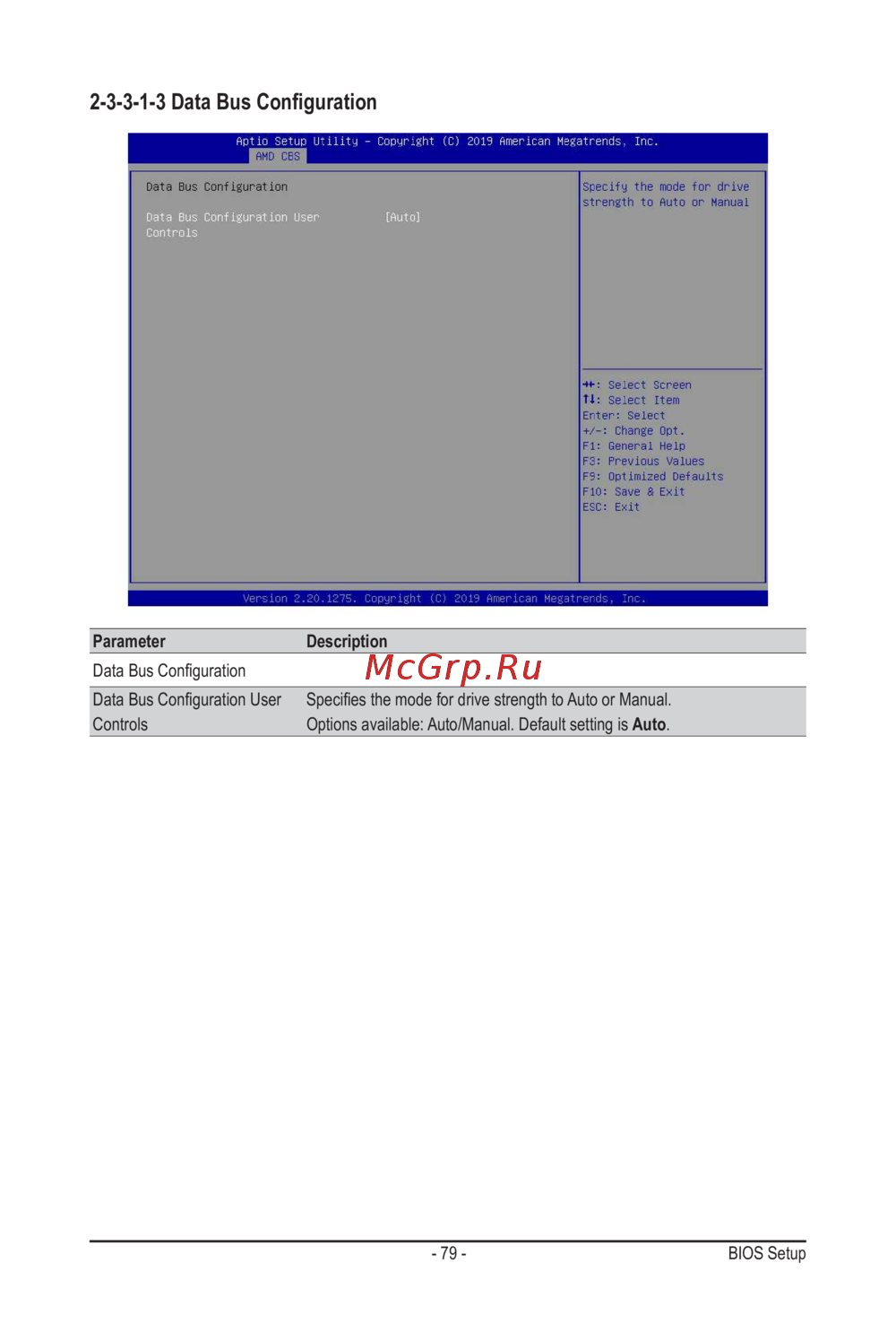

2-3-3-1-3 Data Bus Conguration

Parameter Description

DataBusConguration

DataBusCongurationUser

Controls

SpeciesthemodefordrivestrengthtoAutoorManual.

Options available: Auto/Manual. Default setting is Auto.
