Gigabyte MZ32-AR0 (rev. 1.0) [84/146] 3 3 3 nvdimm

BIOS Setup - 84 -

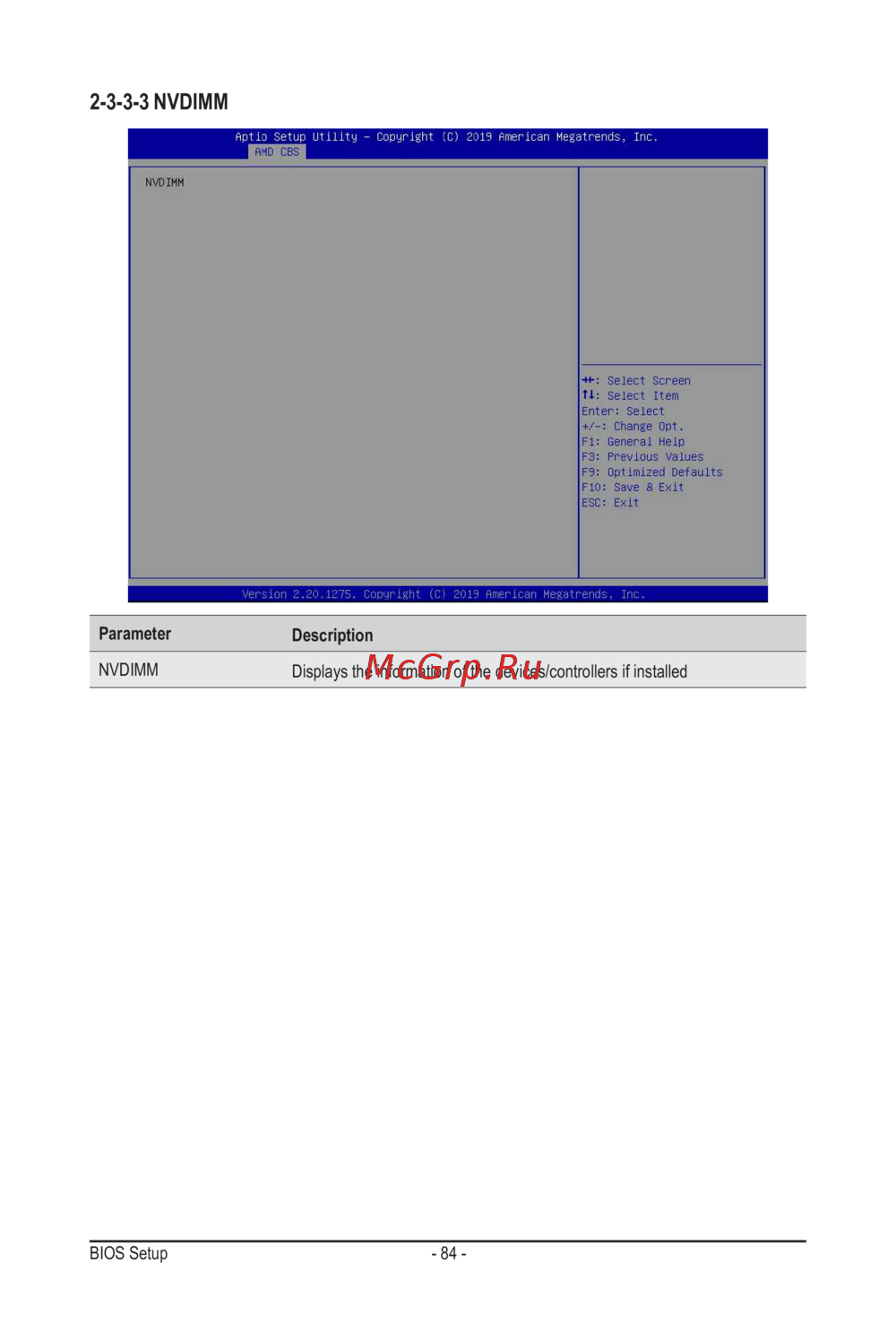

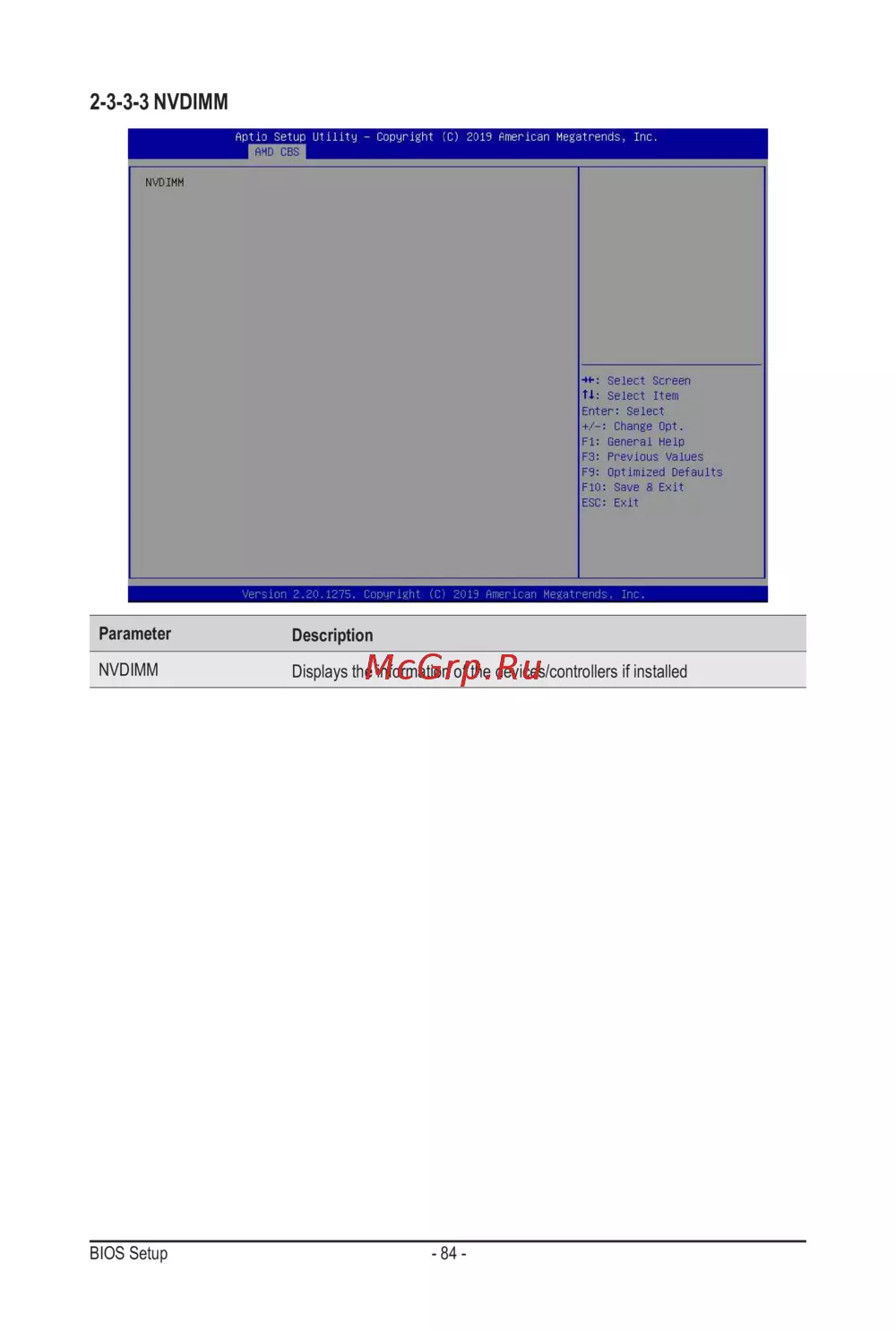

2-3-3-3 NVDIMM

Parameter

Description

NVDIMM

Displays the information of the devices/controllers if installed
