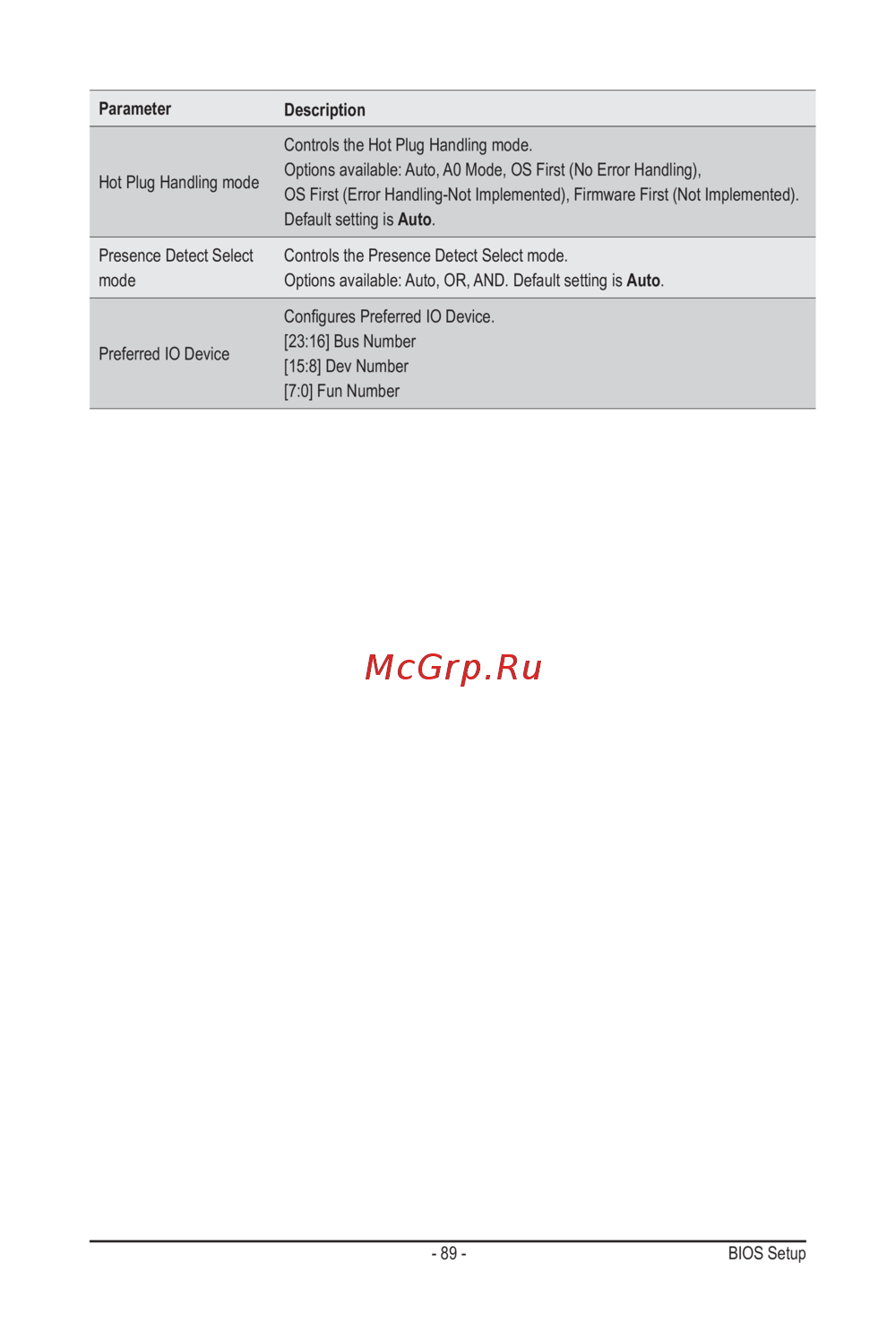

- 89 - BIOS Setup

Parameter

Description

Hot Plug Handling mode

Controls the Hot Plug Handling mode.

Options available: Auto, A0 Mode, OS First (No Error Handling),

OS First (Error Handling-Not Implemented), Firmware First (Not Implemented).

Default setting is Auto.

Presence Detect Select

mode

Controls the Presence Detect Select mode.

Options available: Auto, OR, AND. Default setting is Auto.

Preferred IO Device

ConguresPreferredIODevice.

[23:16] Bus Number

[15:8] Dev Number

[7:0] Fun Number
