BIOS Setup - 90 -

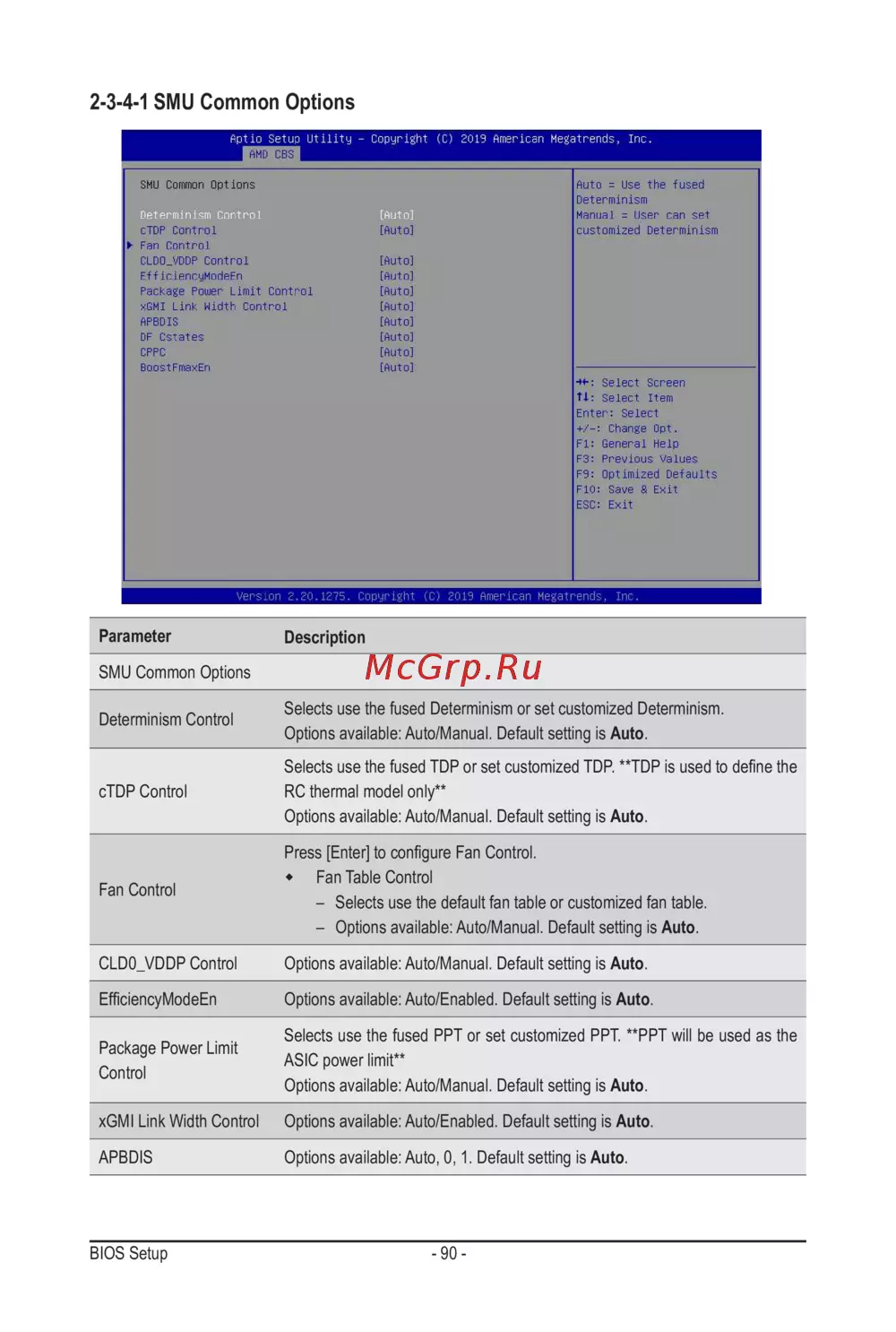

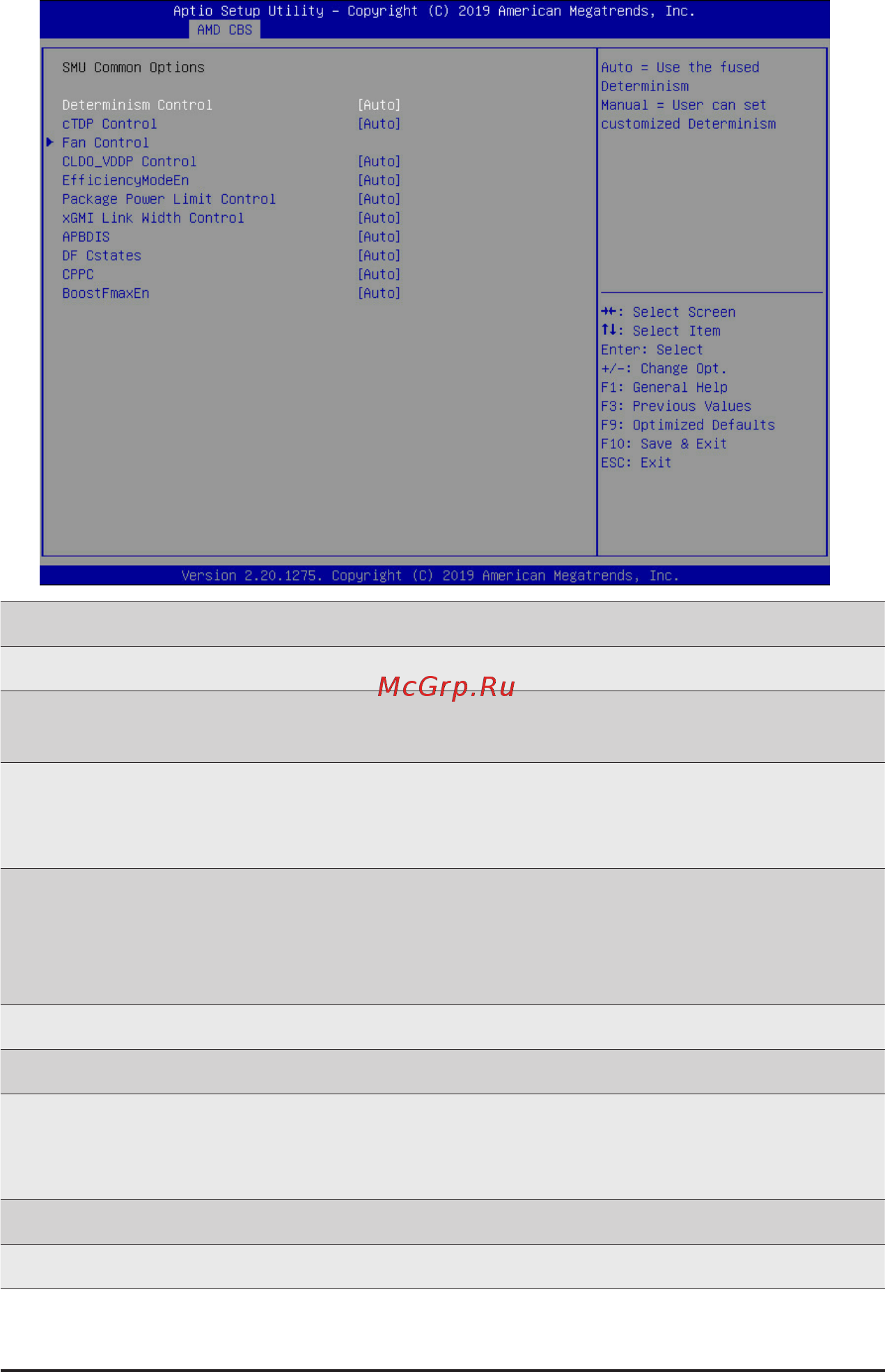

2-3-4-1 SMU Common Options
Parameter
Description
SMU Common Options
Determinism Control
Selects use the fused Determinism or set customized Determinism.
Options available: Auto/Manual. Default setting is Auto.
cTDP Control
SelectsusethefusedTDPorsetcustomizedTDP.**TDPisusedtodenethe
RC thermal model only**
Options available: Auto/Manual. Default setting is Auto.
Fan Control
Press[Enter]tocongureFanControl.
Fan Table Control
– Selects use the default fan table or customized fan table.
– Options available: Auto/Manual. Default setting is Auto.
CLD0_VDDP Control Options available: Auto/Manual. Default setting is Auto.
EfciencyModeEn Options available: Auto/Enabled. Default setting is Auto.
Package Power Limit
Control
Selects use the fused PPT or set customized PPT. **PPT will be used as the
ASIC power limit**
Options available: Auto/Manual. Default setting is Auto.
xGMI Link Width Control Options available: Auto/Enabled. Default setting is Auto.
APBDIS Options available: Auto, 0, 1. Default setting is Auto.
