Gigabyte MZ32-AR0 (rev. 1.0) [97/146] 3 5 3 sd dump options

- 97 - BIOS Setup

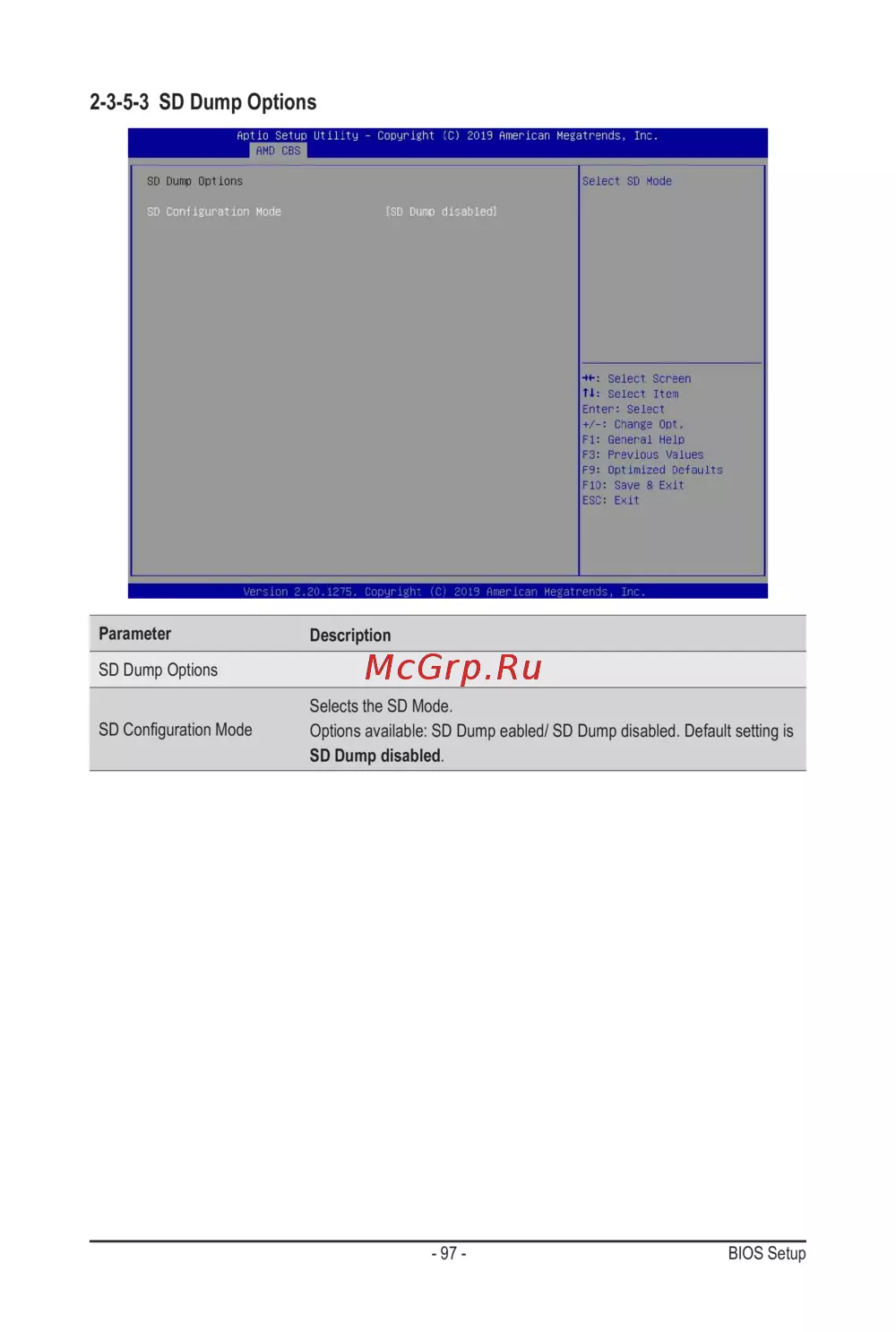

2-3-5-3 SD Dump Options

Parameter

Description

SD Dump Options

SDCongurationMode

Selects the SD Mode.

Options available: SD Dump eabled/ SD Dump disabled. Default setting is

SD Dump disabled.
