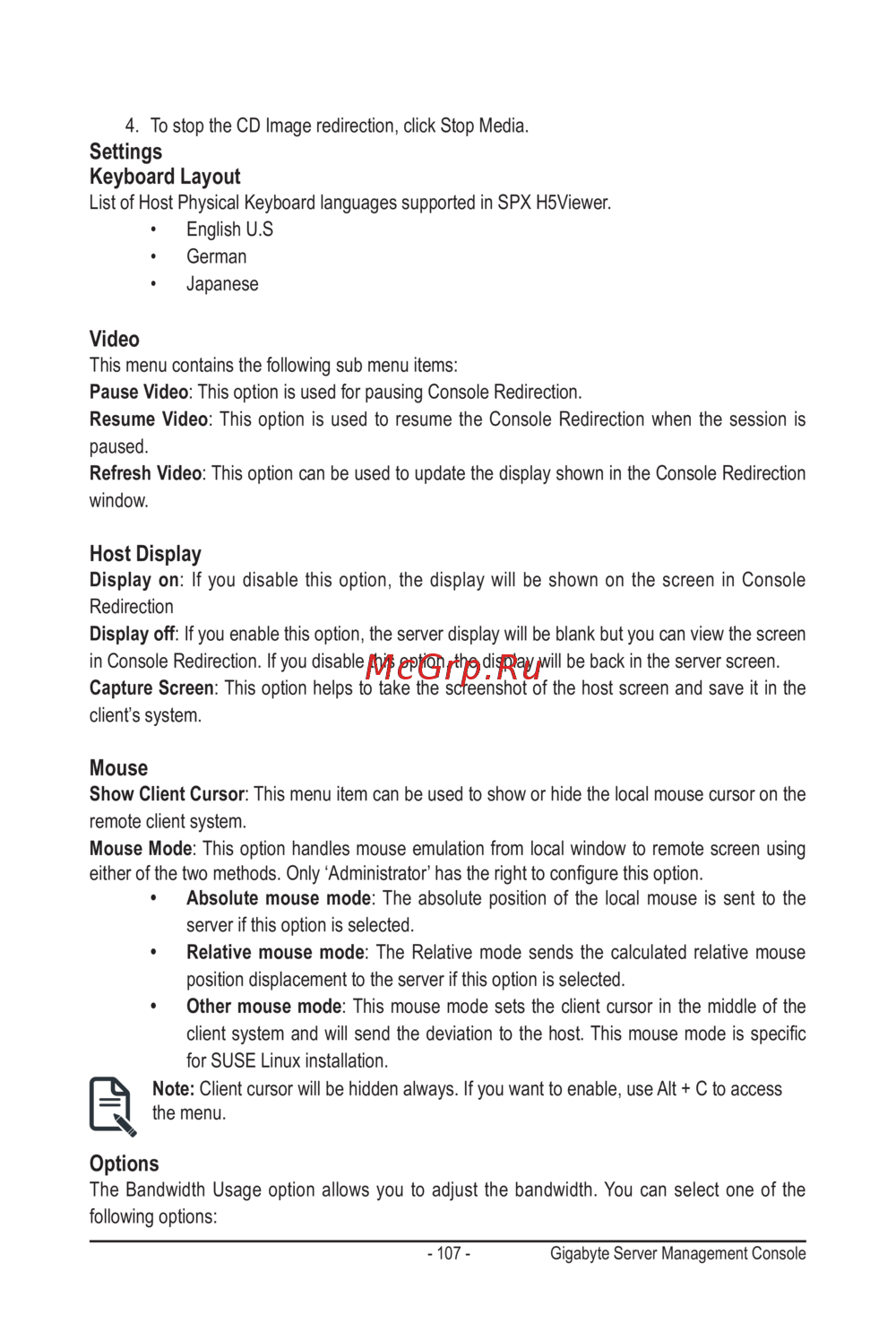

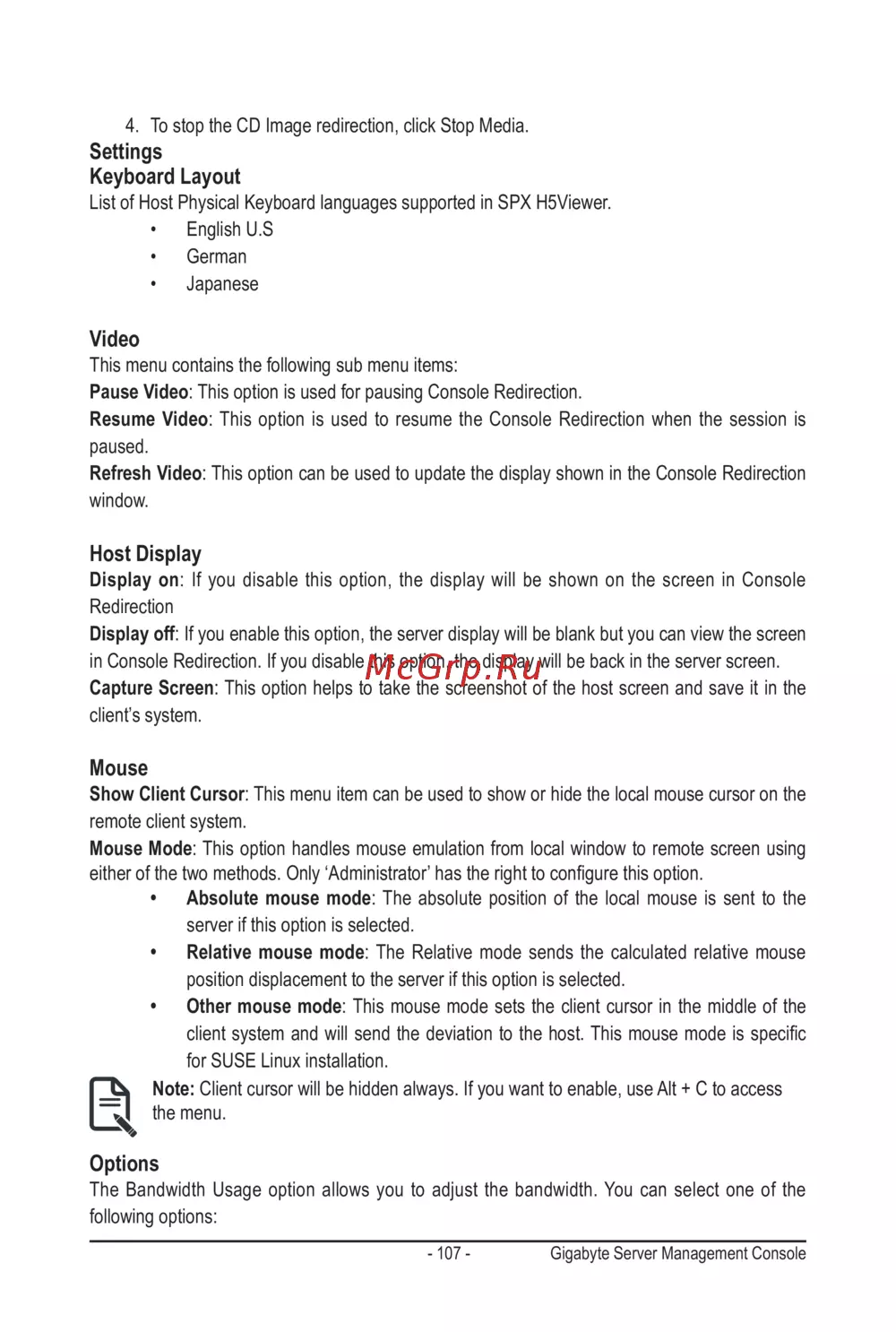

- 107 - Gigabyte Server Management Console
4. To stop the CD Image redirection, click Stop Media.
Settings
Keyboard Layout
List of Host Physical Keyboard languages supported in SPX H5Viewer.
• English U.S
• German
• Japanese
Video
This menu contains the following sub menu items:
Pause Video: This option is used for pausing Console Redirection.
Resume Video: This option is used to resume the Console Redirection when the session is
paused.
Refresh Video: This option can be used to update the display shown in the Console Redirection
window.
Host Display
Display on: If you disable this option, the display will be shown on the screen in Console
Redirection
Display off: If you enable this option, the server display will be blank but you can view the screen
in Console Redirection. If you disable this option, the display will be back in the server screen.
Capture Screen: This option helps to take the screenshot of the host screen and save it in the
client’s system.
Mouse
Show Client Cursor: This menu item can be used to show or hide the local mouse cursor on the
remote client system.
Mouse Mode: This option handles mouse emulation from local window to remote screen using
eitherofthetwomethods.Only‘Administrator’hastherighttocongurethisoption.
• Absolute mouse mode: The absolute position of the local mouse is sent to the
server if this option is selected.
• Relative mouse mode: The Relative mode sends the calculated relative mouse
position displacement to the server if this option is selected.
• Other mouse mode: This mouse mode sets the client cursor in the middle of the
clientsystemandwillsendthedeviationtothehost.Thismousemodeisspecic
for SUSE Linux installation.
Note: Client cursor will be hidden always. If you want to enable, use Alt + C to access
the menu.
Options
The Bandwidth Usage option allows you to adjust the bandwidth. You can select one of the
following options:
