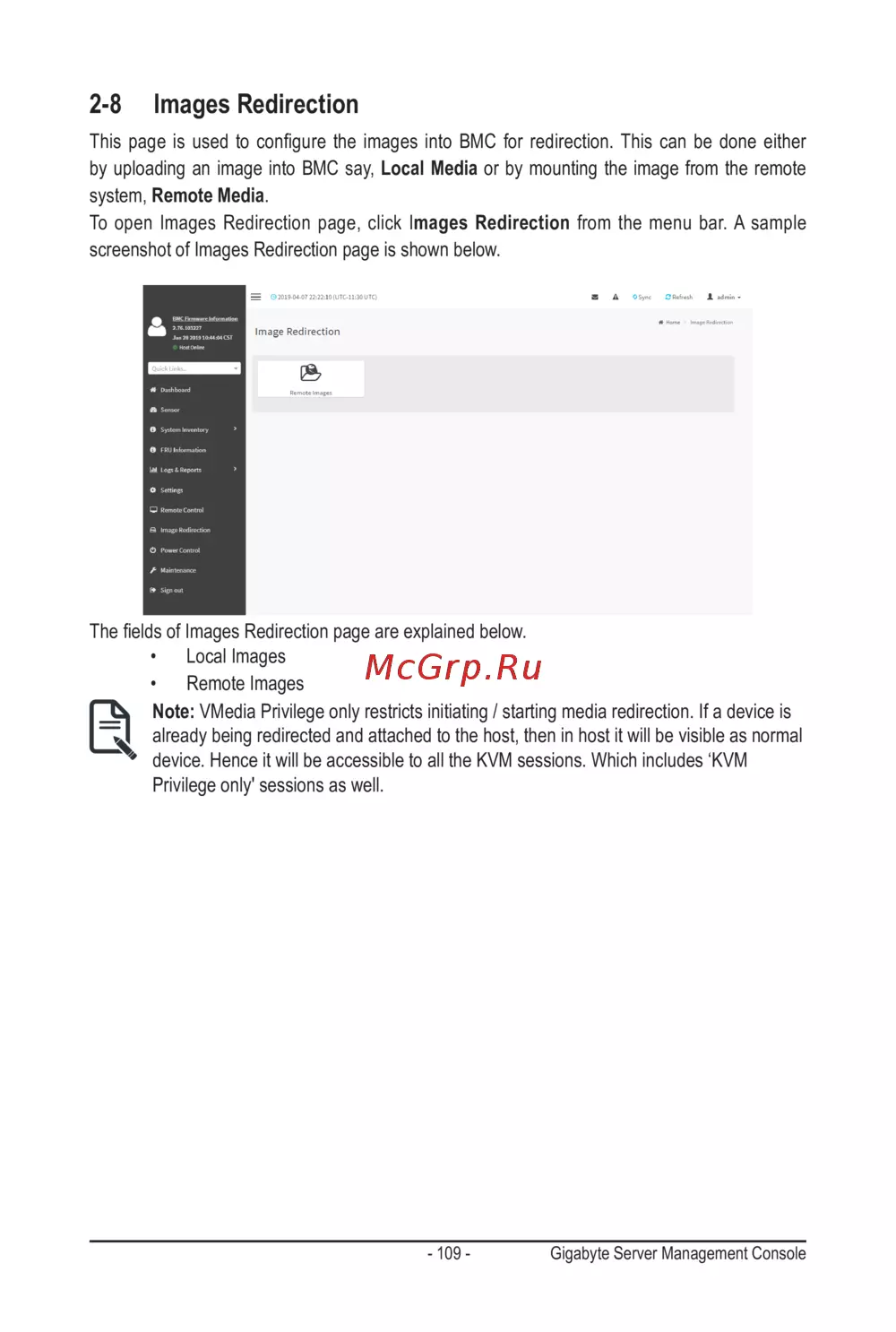

- 109 - Gigabyte Server Management Console
2-8 Images Redirection
ThispageisusedtoconguretheimagesintoBMCforredirection.Thiscanbedoneeither
by uploading an image into BMC say, Local Media or by mounting the image from the remote
system, Remote Media.
To open Images Redirection page, click Images Redirection from the menu bar. A sample
screenshot of Images Redirection page is shown below.
TheeldsofImagesRedirectionpageareexplainedbelow.
• Local Images
• Remote Images
Note: VMedia Privilege only restricts initiating / starting media redirection. If a device is
already being redirected and attached to the host, then in host it will be visible as normal
device. Hence it will be accessible to all the KVM sessions. Which includes ‘KVM
Privilege only' sessions as well.
