2-10 Maintenance Group

This group of pages allows you to do maintenance tasks on the device. The menu contains the

following items:

• BackupConguration

• Firmware Image Location

• Firmware Information

• Firmware Update

• HPM Firmware Update

• PreserveConguration

• RestoreConguration

• Restore Factory Defaults

• System Administrator

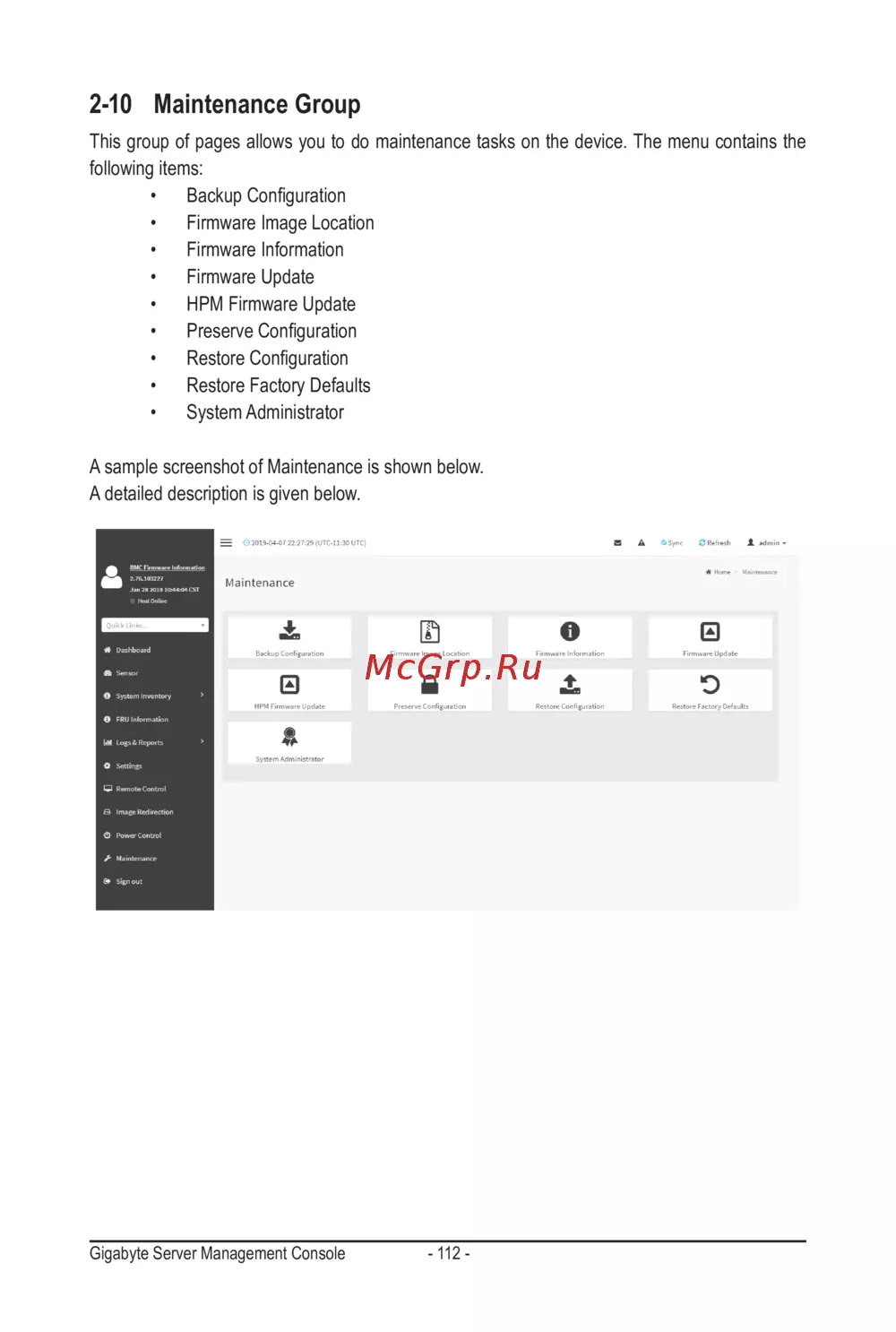

A sample screenshot of Maintenance is shown below.

A detailed description is given below.
