- 125 - Gigabyte Server Management Console
2-10-5 Firmware Information
Thiswizardtakesyouthroughtheprocessofrmwareupgradation.AresetoftheboxwillThis
pageisusedtoconguretheFirmwareInformationsettings.
To open System Administrator page, click Maintenance > Firmware Information from the menu

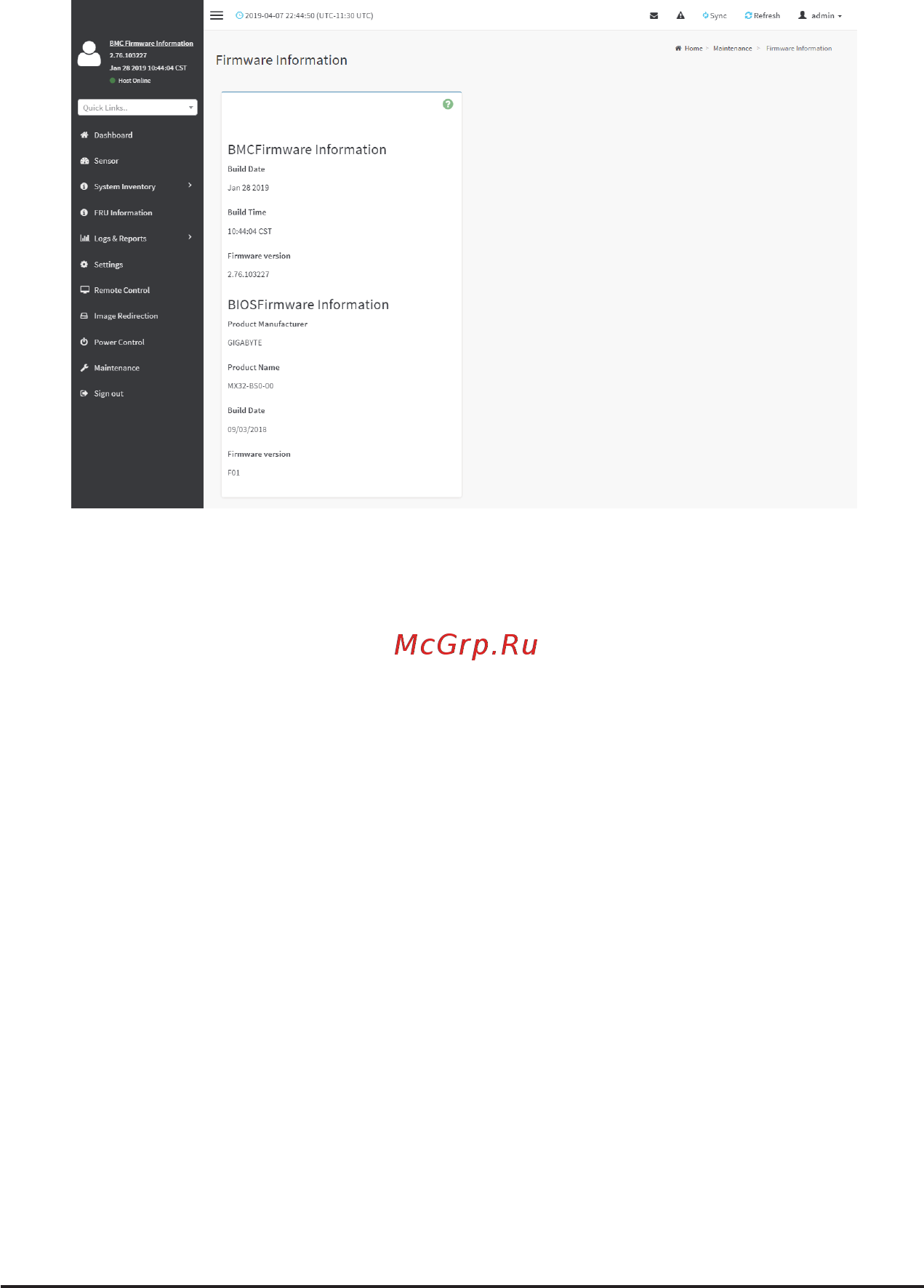

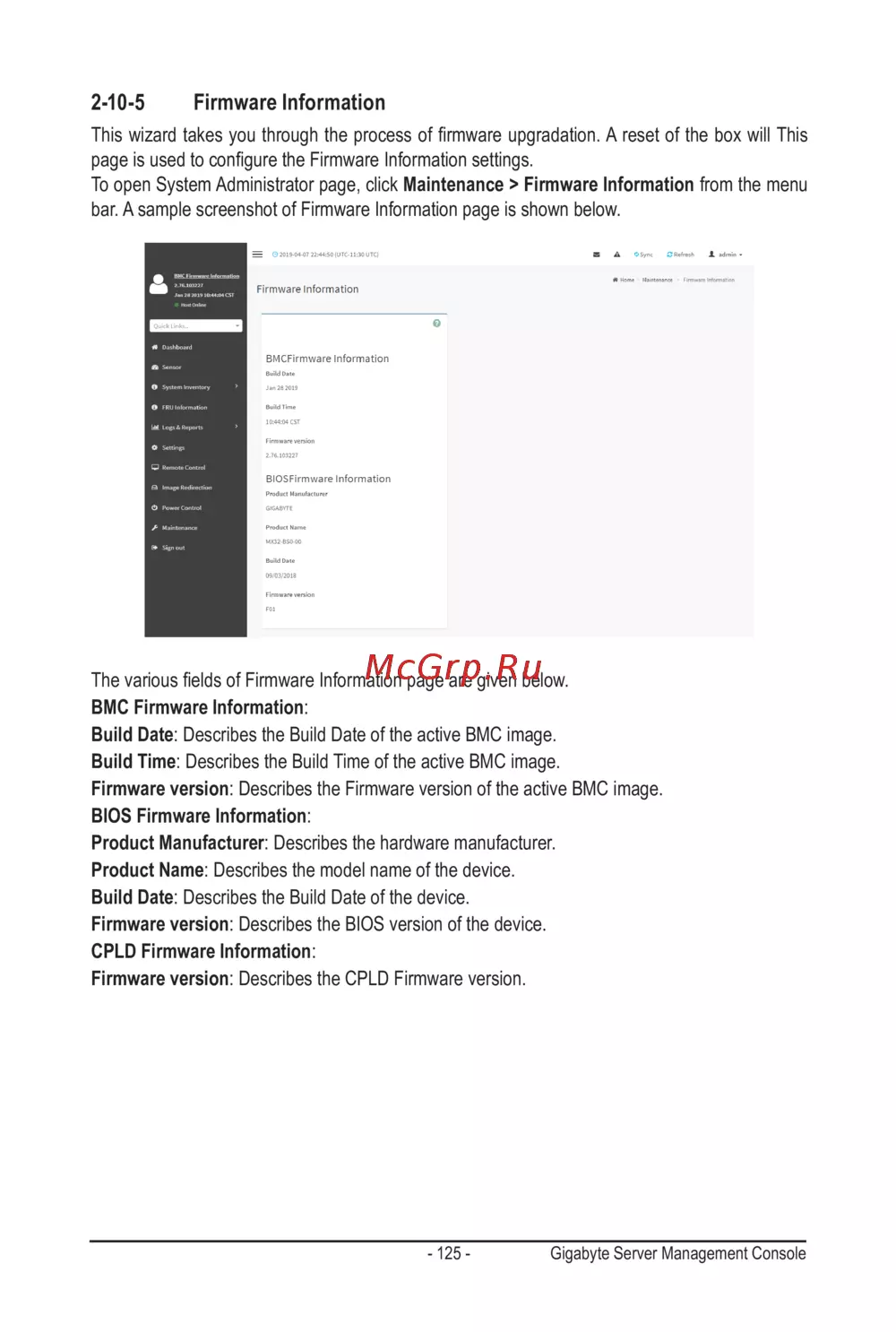

bar. A sample screenshot of Firmware Information page is shown below.
ThevariouseldsofFirmwareInformationpagearegivenbelow.
BMC Firmware Information:
Build Date: Describes the Build Date of the active BMC image.
Build Time: Describes the Build Time of the active BMC image.
Firmware version: Describes the Firmware version of the active BMC image.
BIOS Firmware Information:
Product Manufacturer: Describes the hardware manufacturer.
Product Name: Describes the model name of the device.
Build Date: Describes the Build Date of the device.
Firmware version: Describes the BIOS version of the device.
CPLD Firmware Information:
Firmware version: Describes the CPLD Firmware version.
