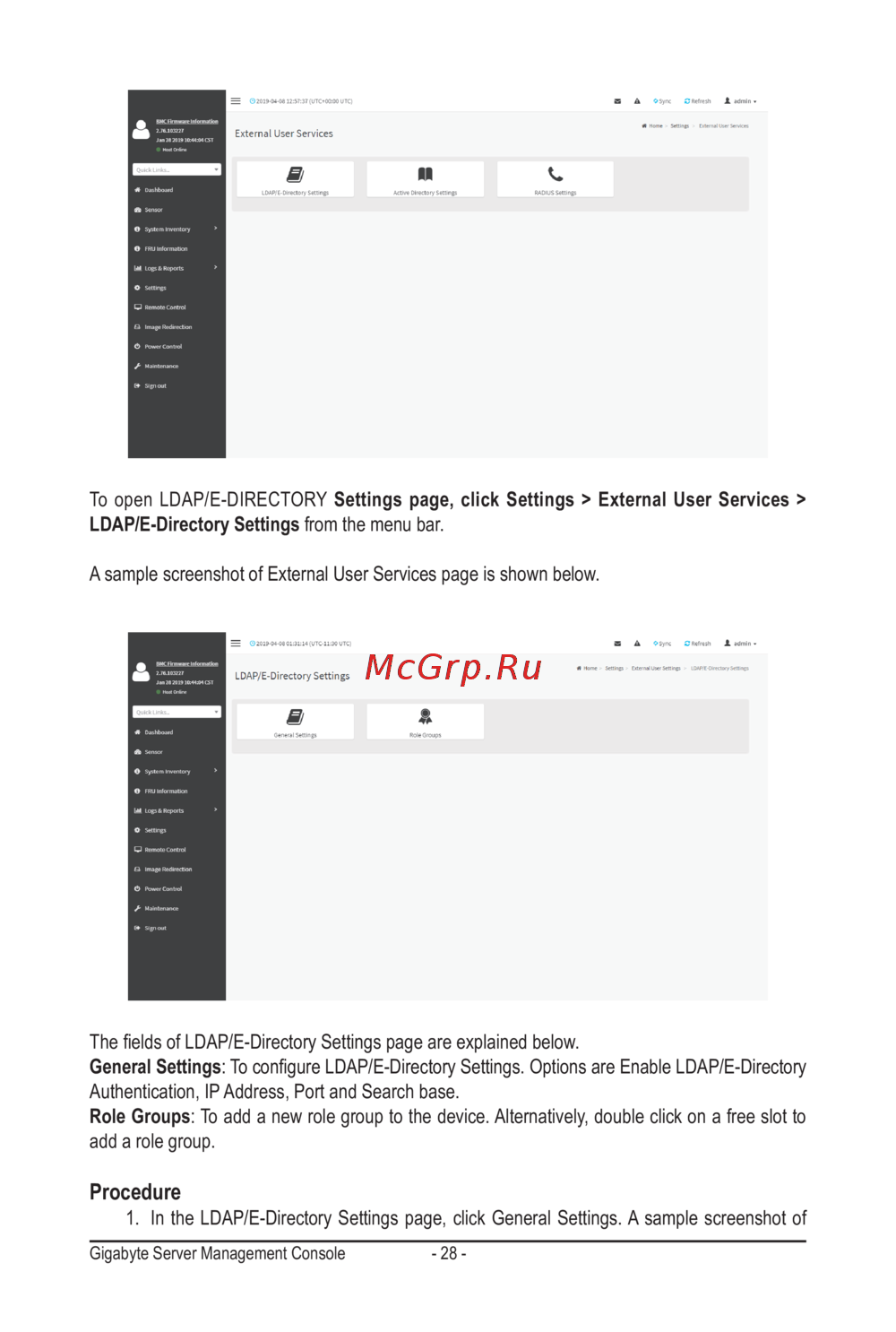

To open LDAP/E-DIRECTORY Settings page, click Settings > External User Services >

LDAP/E-Directory Settings from the menu bar.

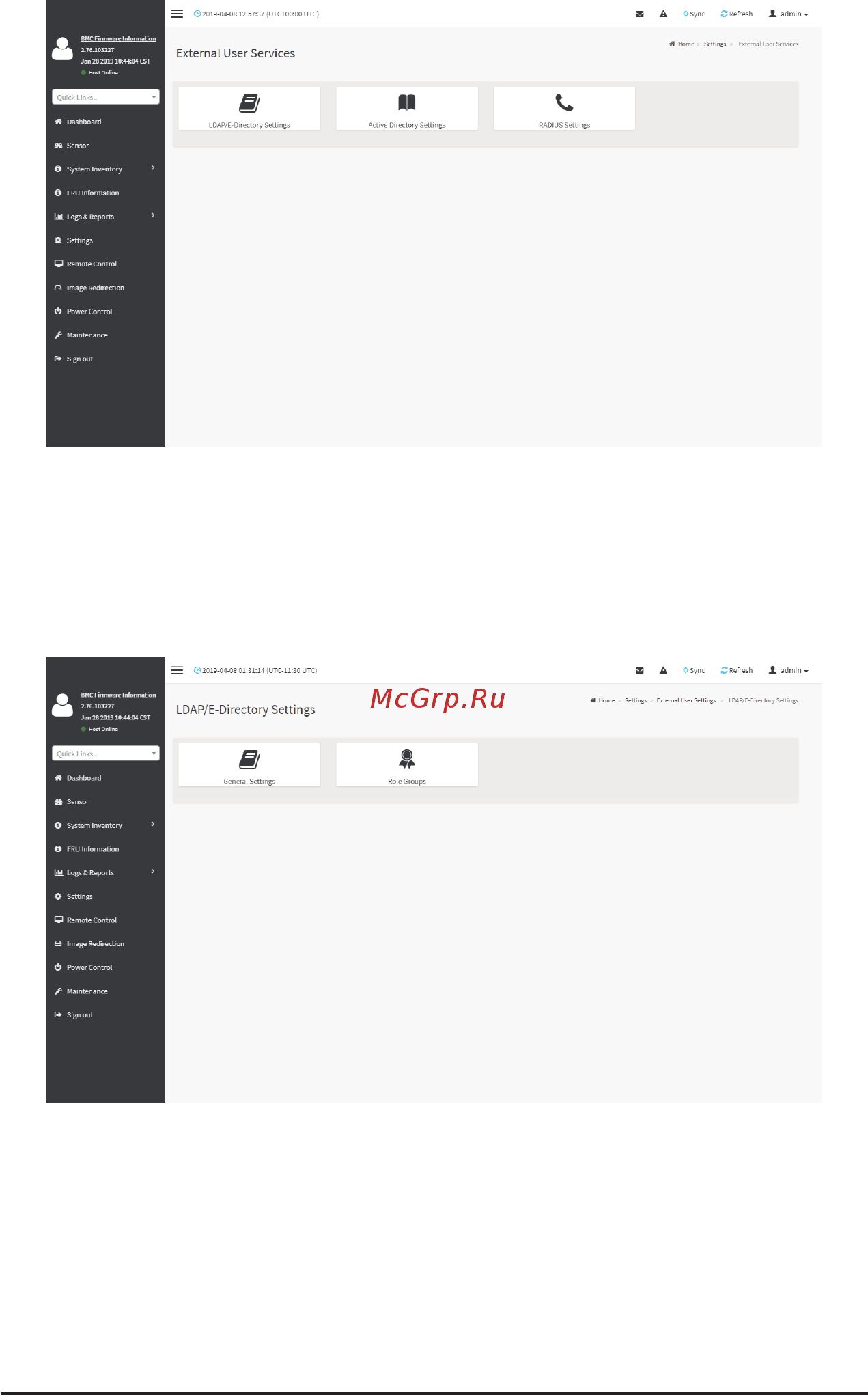

A sample screenshot of External User Services page is shown below.

TheeldsofLDAP/E-DirectorySettingspageareexplainedbelow.

General Settings:TocongureLDAP/E-DirectorySettings.OptionsareEnableLDAP/E-Directory

Authentication, IP Address, Port and Search base.

Role Groups: To add a new role group to the device. Alternatively, double click on a free slot to

add a role group.

Procedure

1. In the LDAP/E-Directory Settings page, click General Settings. A sample screenshot of
