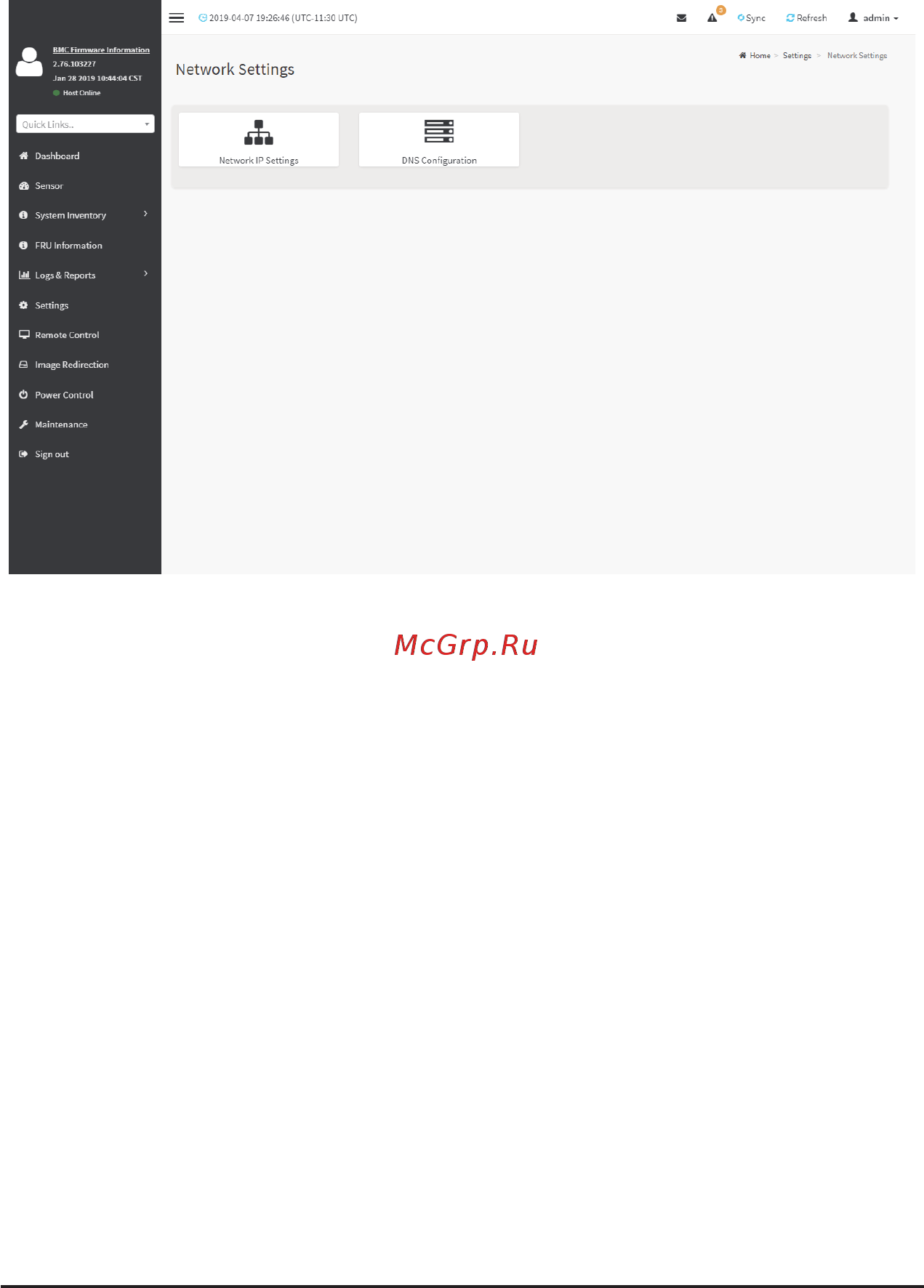

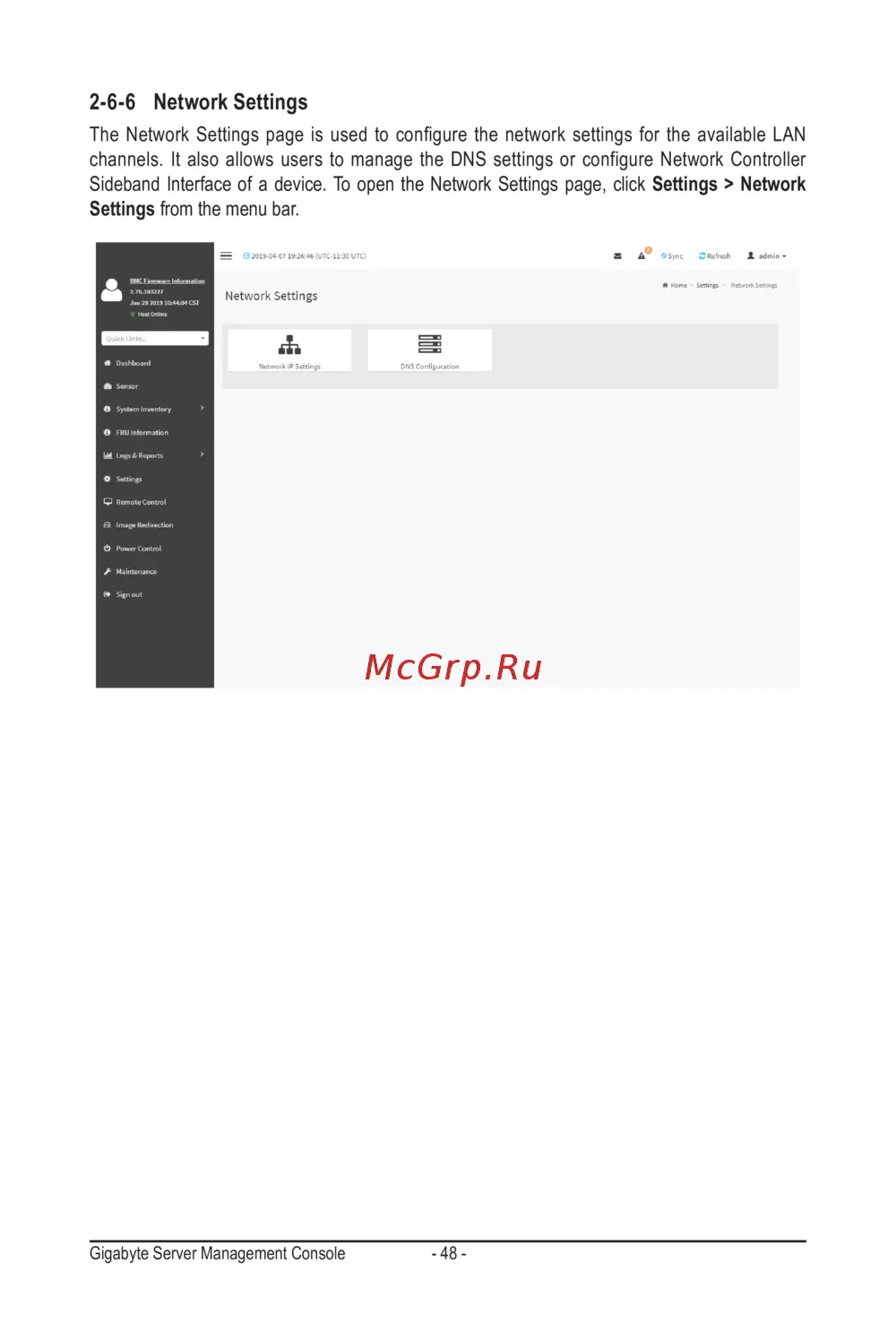

2-6-6 Network Settings

The Network Settings page is used to configure the network settings for the available LAN

channels. It also allows users to manage the DNS settings or configure Network Controller

Sideband Interface of a device. To open the Network Settings page, click Settings > Network

Settings from the menu bar.
