- 49 - Gigabyte Server Management Console

Network IP Settings

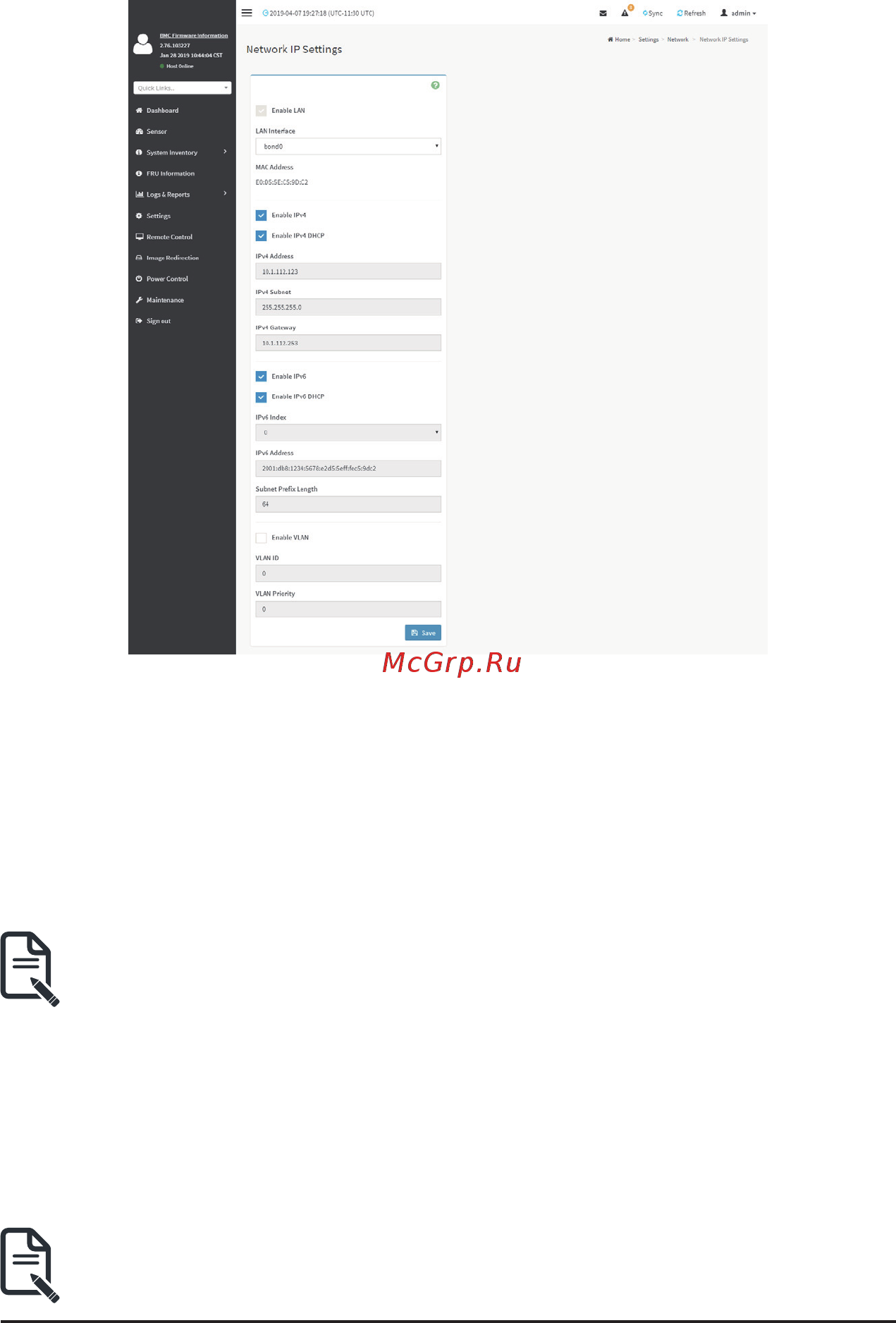

To open Network IP Settings page, click Settings > Network Settings > Network IP Settings

from the menu bar. A sample screenshot of Network IP Settings page is shown below.

TheeldsofNetworkIPSettingspageareexplainedbelow.

Enable LAN: To enable or disable the LAN Settings.

LAN Interface: Lists the LAN interfaces.

MAC Address:ThiselddisplaystheMACAddressofthedevice.Thisisareadonlyeld.

Enable IPv4: This option is to enable/disable the IPv4 settings in the device.

Enable IPv4 DHCP: This option is to enable IPv4 DHCP support for the selected interface.

IPv4 Address, IPv4 Subnet Mask, and IPv4 Default Gateway:Theseeldsareforspecifying

thestaticIPv4address,SubnetMaskandDefaultGatewaytobeconguredtothedevice.

Note: IP Address made of 4 numbers separated by dots as in “xxx.xxx.xxx.xxx”.

Each Number ranges from 0 to 255.

First Number must not be 0.

Enable IPv6:ToEnable/DisabletheIPv6congurationsettings.

Enable IPv6 DHCP:ToEnable/DisabletheIPv6settingsinthedevice.Itdynamicallycongures

IPv6addressusingDHCP(DynamicHostCongurationProtocol).

IPv6 Index:TospecifyastaticIPv6Indextobeconguredtothedevice.E.g.:0

IPv6 Address:TospecifyastaticIPv6addresstobeconguredtothedevice.E.g.:2004::2010

Subnet Prex length:TospecifythesubnetprexlengthfortheIPv6settings.

Note: Value ranges from 0 to 128.
