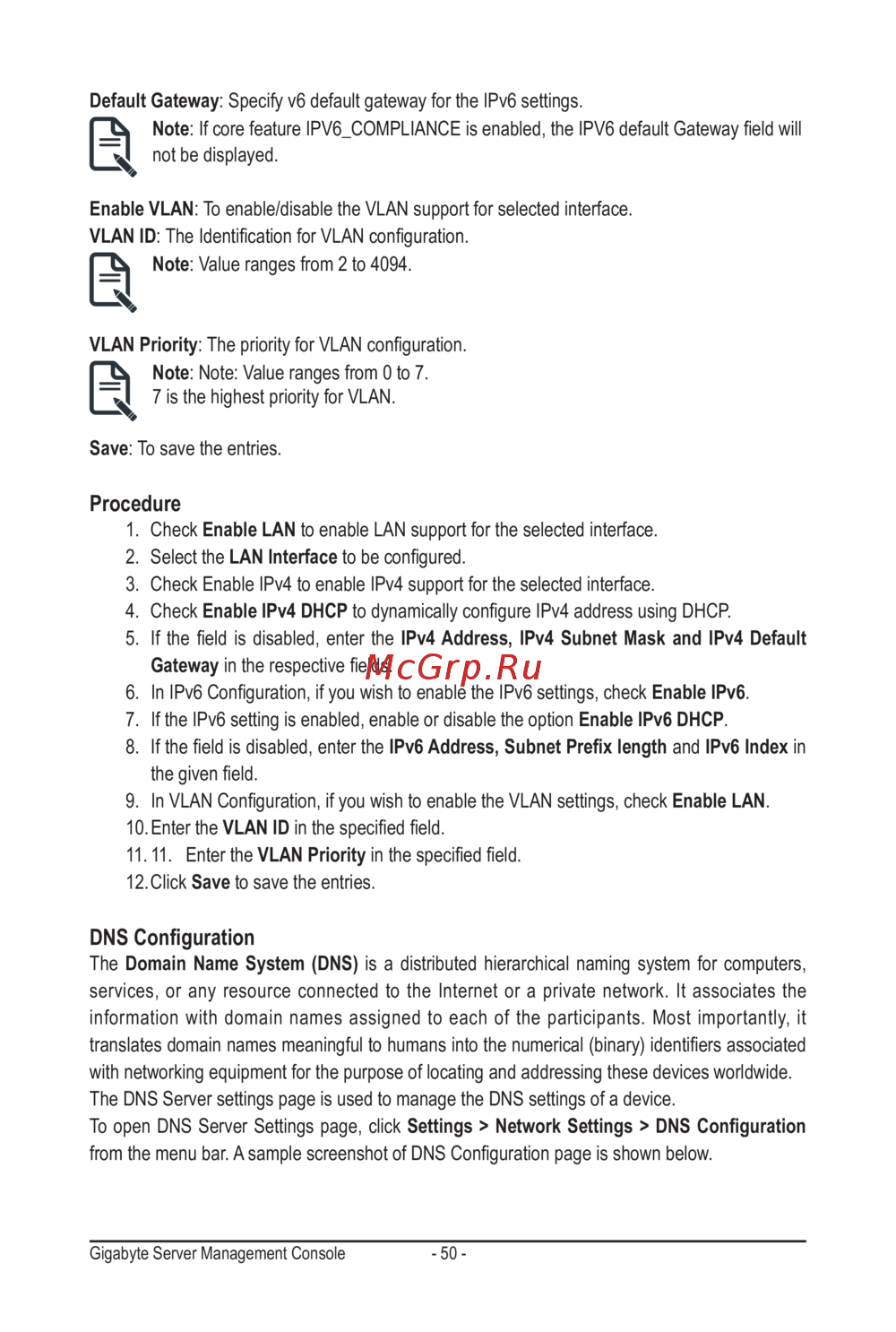

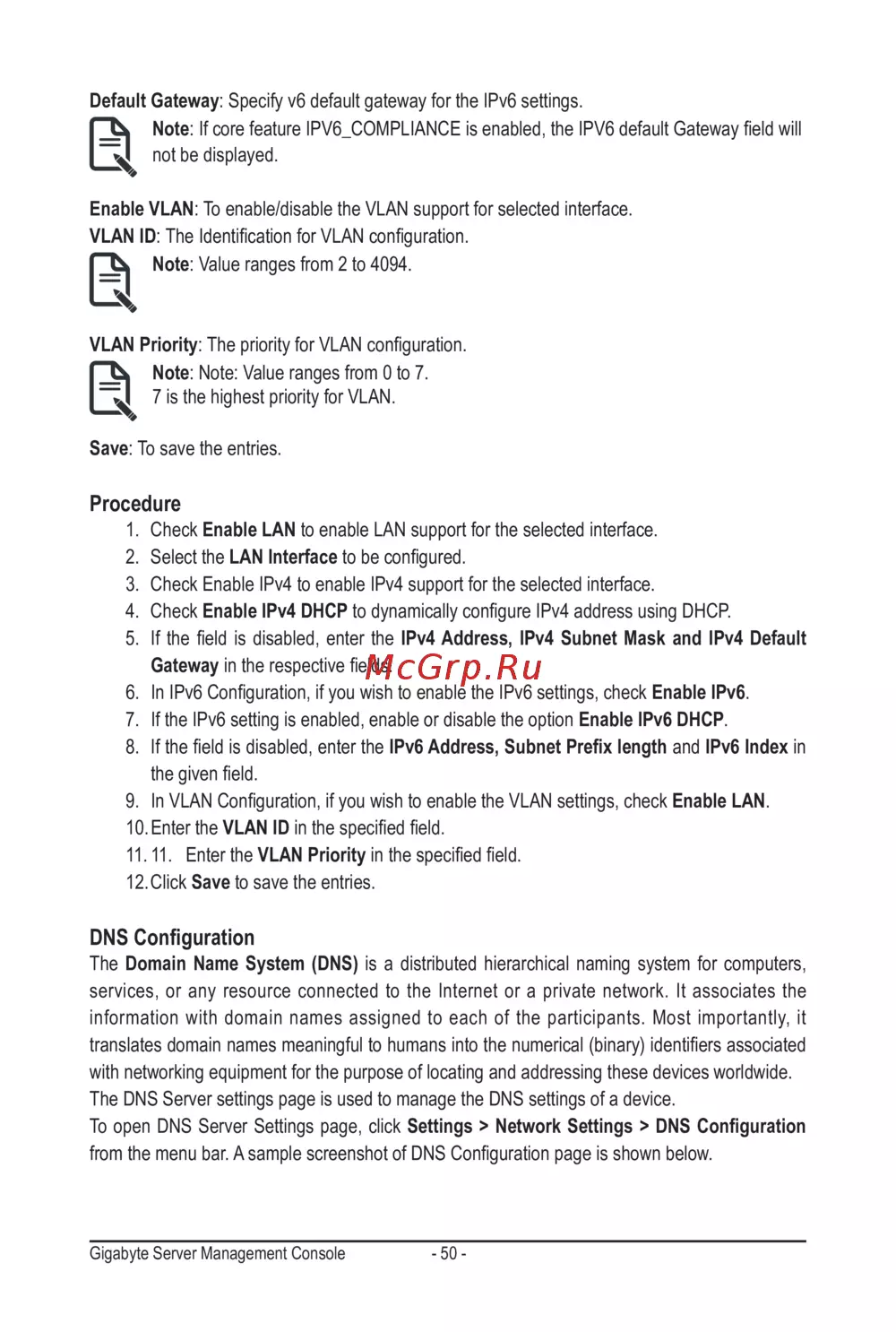

Gigabyte Server Management Console - 50 -
Default Gateway: Specify v6 default gateway for the IPv6 settings.
Note: IfcorefeatureIPV6_COMPLIANCEisenabled,theIPV6defaultGatewayeldwill
not be displayed.
Enable VLAN: To enable/disable the VLAN support for selected interface.
VLAN ID:TheIdenticationforVLANconguration.
Note: Value ranges from 2 to 4094.
VLAN Priority:ThepriorityforVLANconguration.
Note: Note: Value ranges from 0 to 7.
7 is the highest priority for VLAN.
Save: To save the entries.
Procedure
1. Check Enable LAN to enable LAN support for the selected interface.
2. Select the LAN Interfacetobecongured.
3. Check Enable IPv4 to enable IPv4 support for the selected interface.
4. Check Enable IPv4 DHCPtodynamicallycongureIPv4addressusingDHCP.
5. Iftheeldisdisabled,enterthe IPv4 Address, IPv4 Subnet Mask and IPv4 Default
Gateway intherespectiveelds.
6. InIPv6Conguration,ifyouwishtoenabletheIPv6settings,checkEnable IPv6.
7. If the IPv6 setting is enabled, enable or disable the option Enable IPv6 DHCP.
8. Iftheeldisdisabled,entertheIPv6 Address, Subnet Prex length and IPv6 Index in
thegiveneld.
9. InVLANConguration,ifyouwishtoenabletheVLANsettings,checkEnable LAN.
10. Enter the VLAN IDinthespeciedeld.
11. 11. Enter the VLAN Priorityinthespeciedeld.
12. Click Save to save the entries.
DNS Conguration
The Domain Name System (DNS) is a distributed hierarchical naming system for computers,
services, or any resource connected to the Internet or a private network. It associates the
information with domain names assigned to each of the participants. Most importantly, it
translatesdomainnamesmeaningfultohumansintothenumerical(binary)identiersassociated
with networking equipment for the purpose of locating and addressing these devices worldwide.
The DNS Server settings page is used to manage the DNS settings of a device.
To open DNS Server Settings page, click Settings > Network Settings > DNS Conguration
fromthemenubar.AsamplescreenshotofDNSCongurationpageisshownbelow.
