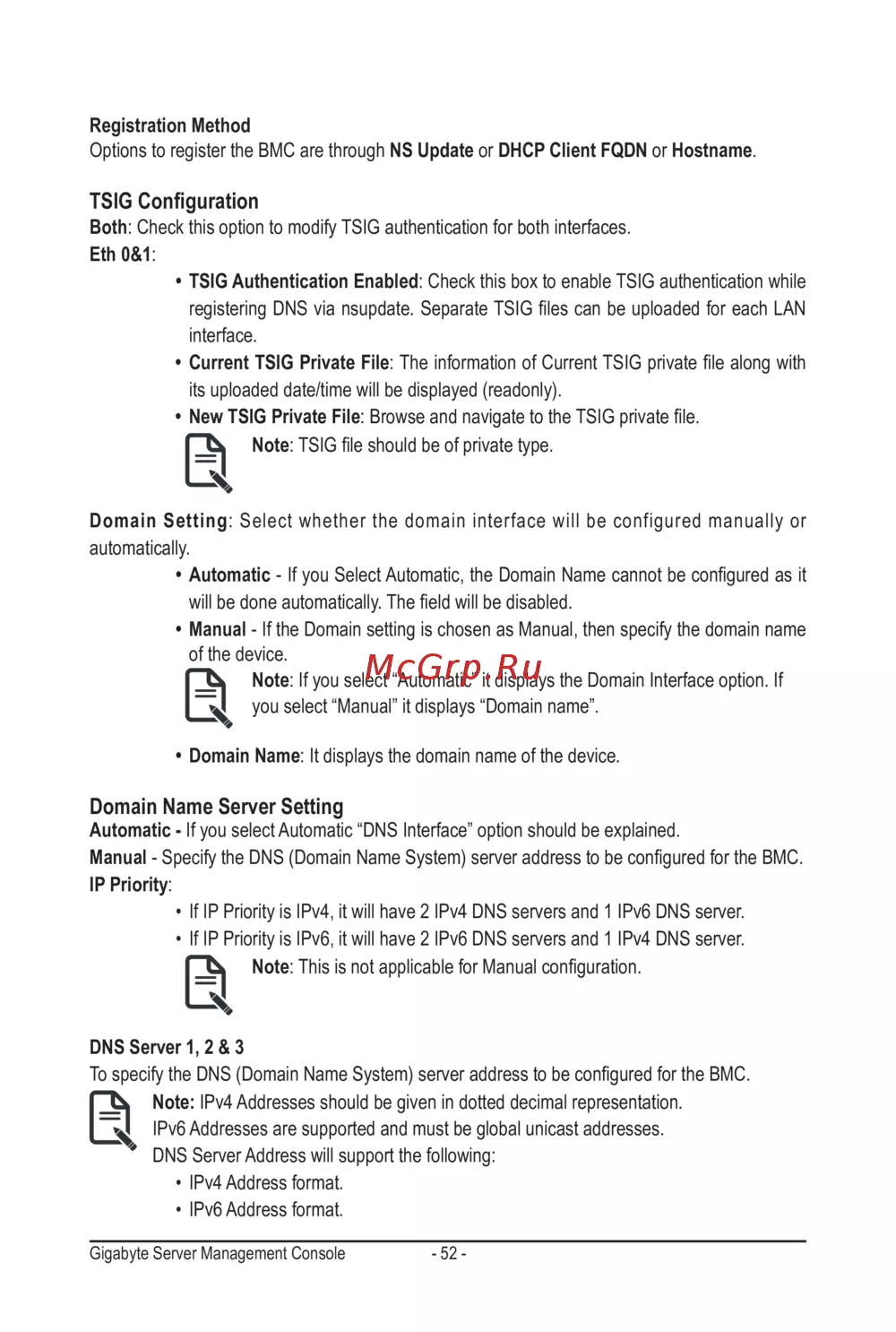

Gigabyte MZ32-AR0 (rev. 1.0) [52/134] Tsig configuration

Gigabyte Server Management Console - 52 -

Registration Method

Options to register the BMC are through NS Update or DHCP Client FQDN or Hostname.

TSIG Conguration

Both: Check this option to modify TSIG authentication for both interfaces.

Eth 0&1:

• TSIG Authentication Enabled: Check this box to enable TSIG authentication while

registeringDNSviansupdate.SeparateTSIGlescanbeuploadedforeachLAN

interface.

• Current TSIG Private File:TheinformationofCurrentTSIGprivatelealongwith

its uploaded date/time will be displayed (readonly).

• New TSIG Private File:BrowseandnavigatetotheTSIGprivatele.

Note:TSIGleshouldbeofprivatetype.

Domain Setting: Select whether the domain interface will be configured manually or

automatically.

• Automatic-IfyouSelectAutomatic,theDomainNamecannotbeconguredasit

willbedoneautomatically.Theeldwillbedisabled.

• Manual - If the Domain setting is chosen as Manual, then specify the domain name

of the device.

Note: If you select “Automatic” it displays the Domain Interface option. If

you select “Manual” it displays “Domain name”.

• Domain Name: It displays the domain name of the device.

Domain Name Server Setting

Automatic - If you select Automatic “DNS Interface” option should be explained.

Manual -SpecifytheDNS(DomainNameSystem)serveraddresstobeconguredfortheBMC.

IP Priority:

• If IP Priority is IPv4, it will have 2 IPv4 DNS servers and 1 IPv6 DNS server.

• If IP Priority is IPv6, it will have 2 IPv6 DNS servers and 1 IPv4 DNS server.

Note:ThisisnotapplicableforManualconguration.

DNS Server 1, 2 & 3

TospecifytheDNS(DomainNameSystem)serveraddresstobeconguredfortheBMC.

Note: IPv4 Addresses should be given in dotted decimal representation.

IPv6 Addresses are supported and must be global unicast addresses.

DNS Server Address will support the following:

• IPv4 Address format.

• IPv6 Address format.
