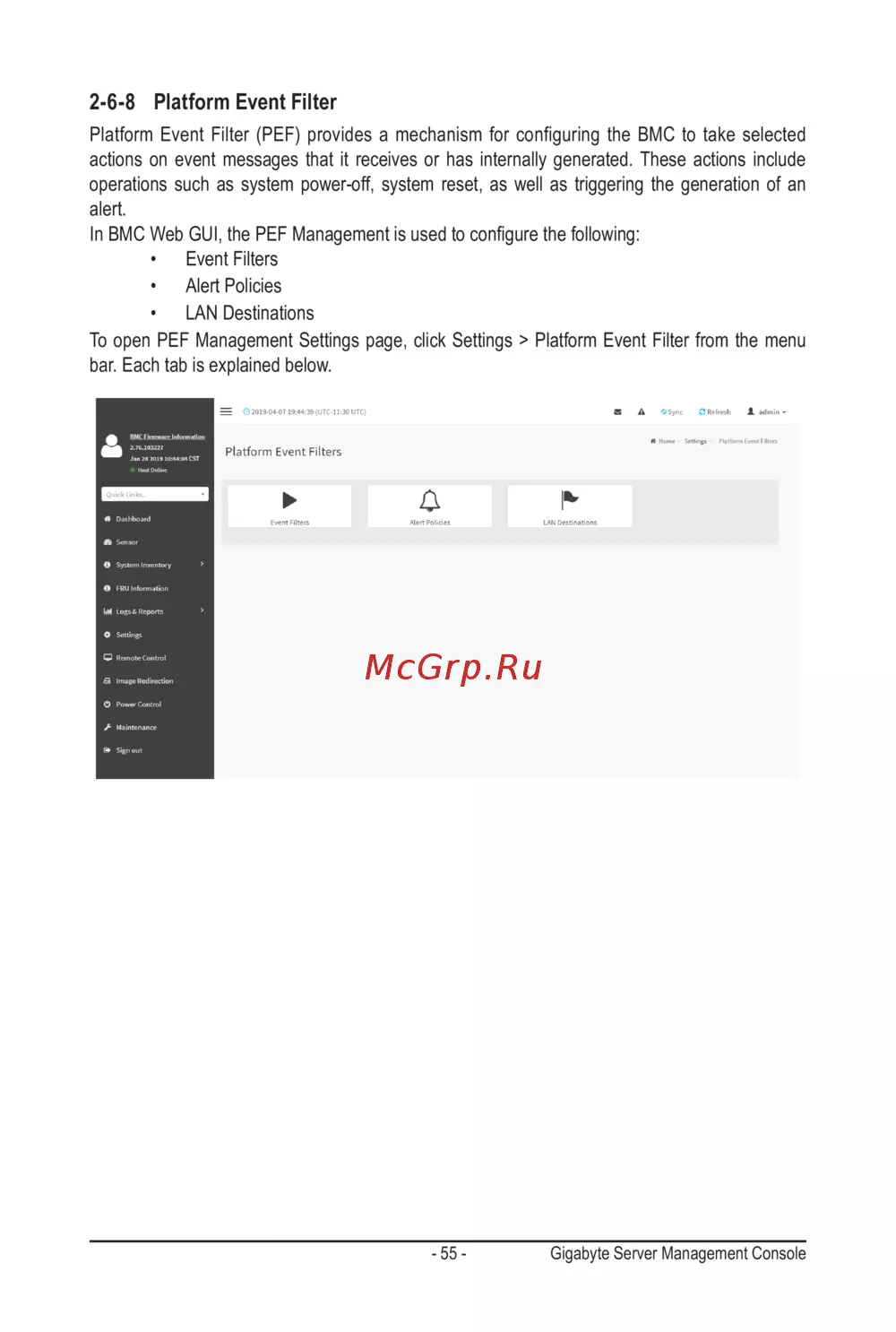

2-6-8 Platform Event Filter

Platform Event Filter (PEF) provides a mechanism for configuring the BMC to take selected

actions on event messages that it receives or has internally generated. These actions include

operations such as system power-off, system reset, as well as triggering the generation of an

alert.

InBMCWebGUI,thePEFManagementisusedtocongurethefollowing:

• Event Filters

• Alert Policies

• LAN Destinations

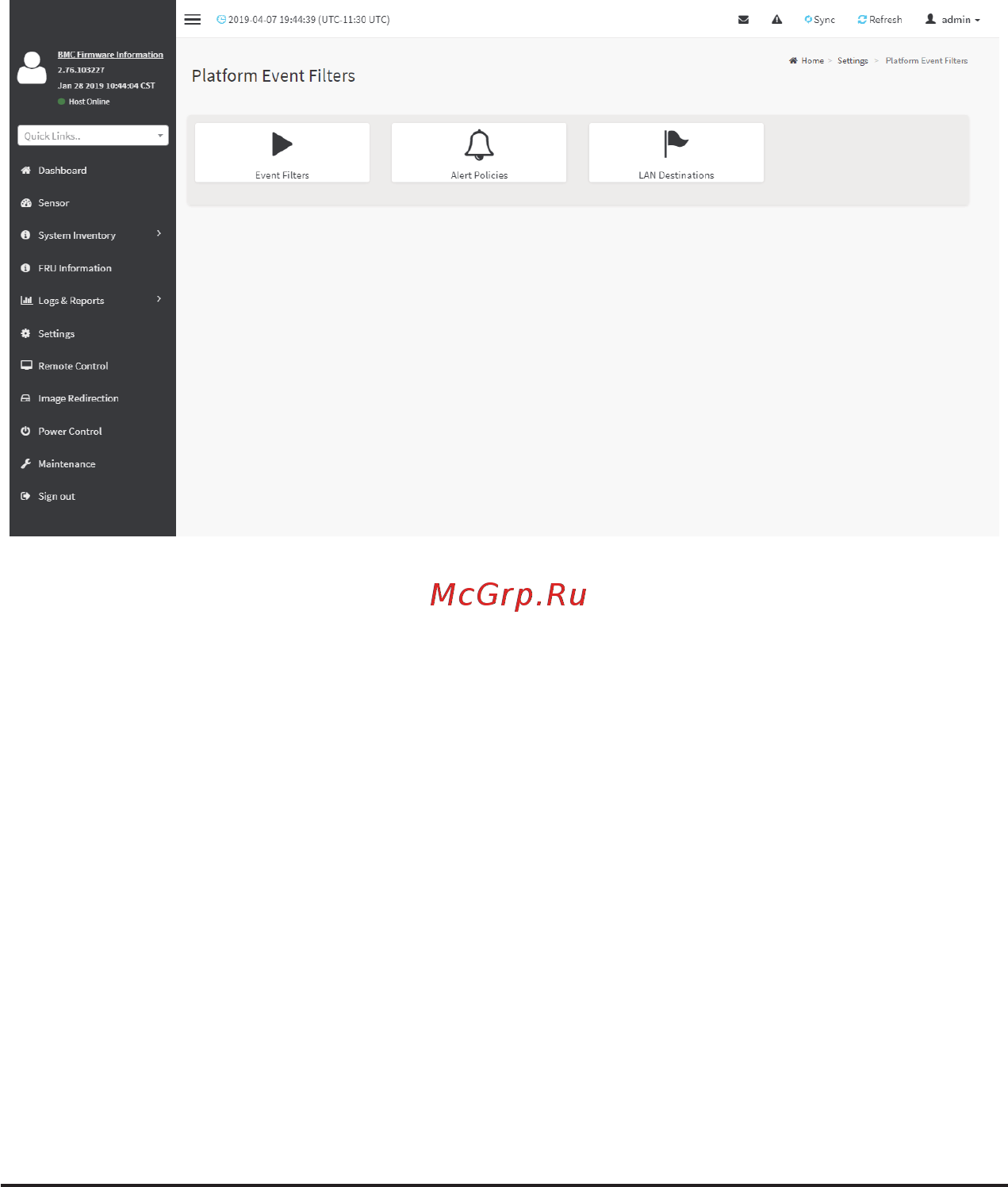

To open PEF Management Settings page, click Settings > Platform Event Filter from the menu

bar. Each tab is explained below.
