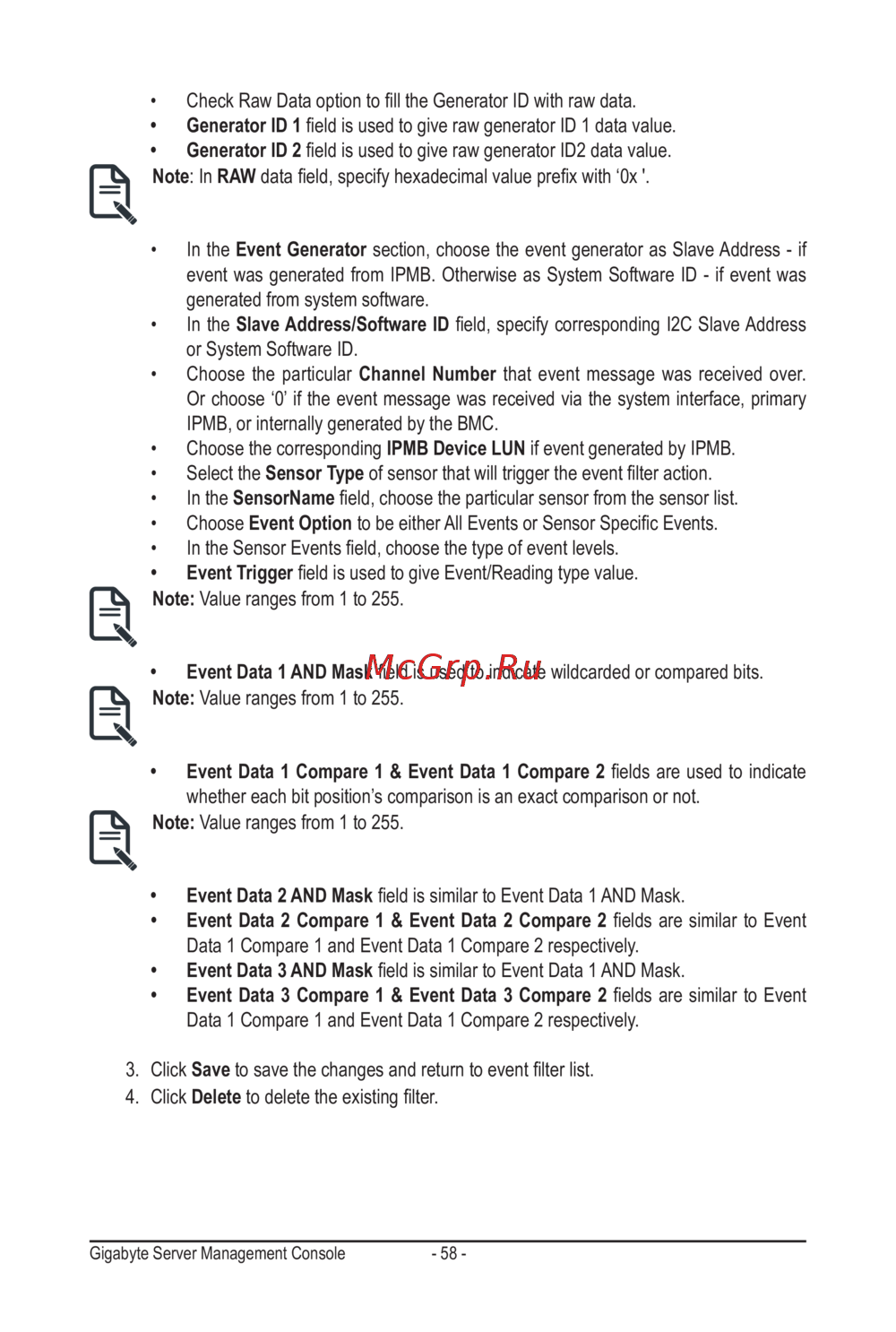

Gigabyte Server Management Console - 58 -

• CheckRawDataoptiontolltheGeneratorIDwithrawdata.

• Generator ID 1eldisusedtogiverawgeneratorID1datavalue.

• Generator ID 2eldisusedtogiverawgeneratorID2datavalue.

Note: In RAWdataeld,specifyhexadecimalvalueprexwith‘0x'.

• In the Event Generator section, choose the event generator as Slave Address - if

event was generated from IPMB. Otherwise as System Software ID - if event was

generated from system software.

• In the Slave Address/Software IDeld,specifycorrespondingI2CSlaveAddress

or System Software ID.

• Choose the particular Channel Number that event message was received over.

Or choose ‘0’ if the event message was received via the system interface, primary

IPMB, or internally generated by the BMC.

• Choose the corresponding IPMB Device LUN if event generated by IPMB.

• Select the Sensor Typeofsensorthatwilltriggertheeventlteraction.

• In the SensorNameeld,choosetheparticularsensorfromthesensorlist.

• Choose Event OptiontobeeitherAllEventsorSensorSpecicEvents.

• IntheSensorEventseld,choosethetypeofeventlevels.

• Event TriggereldisusedtogiveEvent/Readingtypevalue.

Note: Value ranges from 1 to 255.

• Event Data 1 AND Maskeldisusedtoindicatewildcardedorcomparedbits.

Note: Value ranges from 1 to 255.

• Event Data 1 Compare 1 & Event Data 1 Compare 2eldsareusedtoindicate

whether each bit position’s comparison is an exact comparison or not.

Note: Value ranges from 1 to 255.

• Event Data 2 AND MaskeldissimilartoEventData1ANDMask.

• Event Data 2 Compare 1 & Event Data 2 Compare 2eldsaresimilartoEvent

Data 1 Compare 1 and Event Data 1 Compare 2 respectively.

• Event Data 3 AND MaskeldissimilartoEventData1ANDMask.

• Event Data 3 Compare 1 & Event Data 3 Compare 2eldsaresimilartoEvent

Data 1 Compare 1 and Event Data 1 Compare 2 respectively.

3. Click Savetosavethechangesandreturntoeventlterlist.

4. Click Deletetodeletetheexistinglter.
