Gigabyte Server Management Console - 62 -

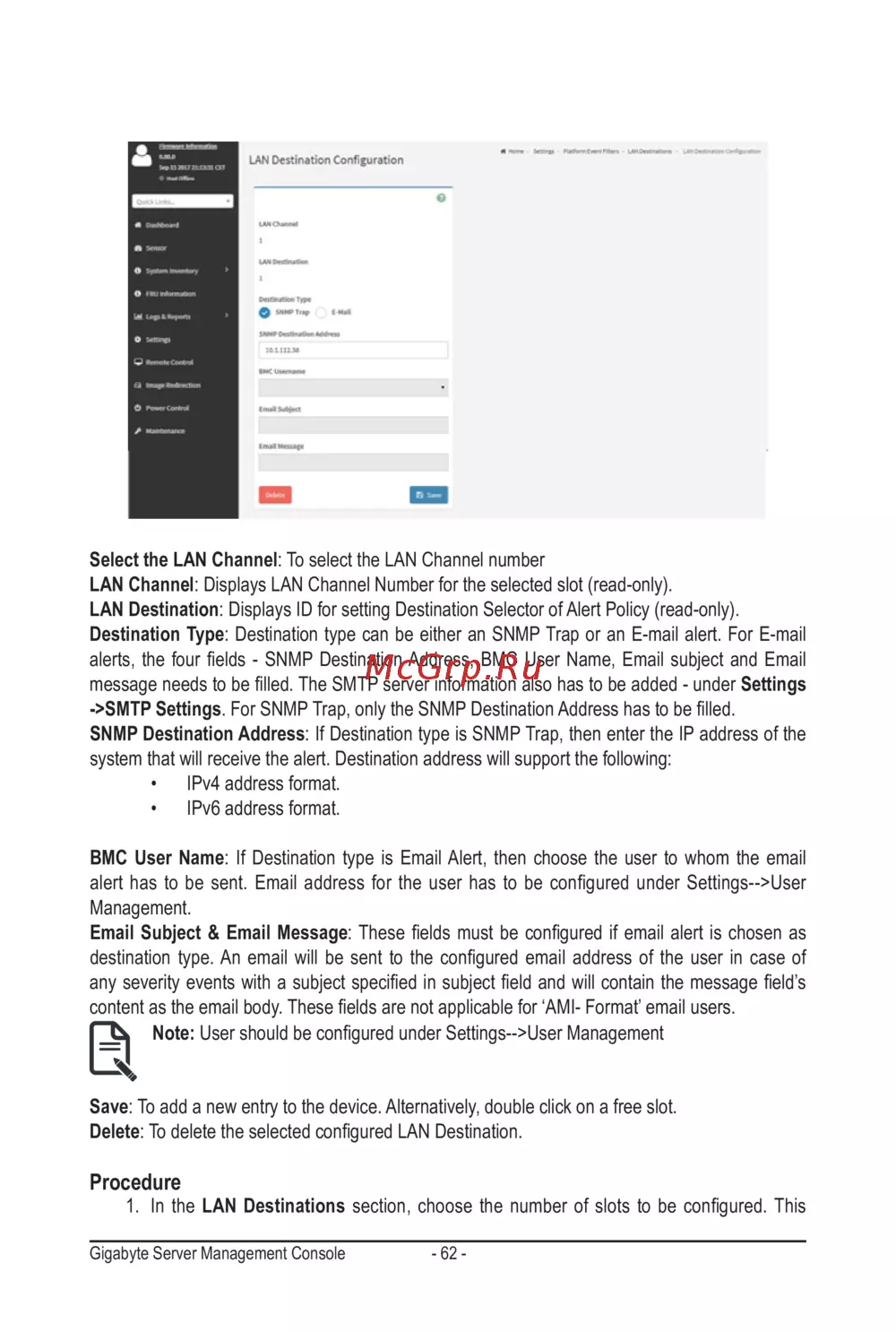

Select the LAN Channel: To select the LAN Channel number

LAN Channel: Displays LAN Channel Number for the selected slot (read-only).

LAN Destination: Displays ID for setting Destination Selector of Alert Policy (read-only).

Destination Type: Destination type can be either an SNMP Trap or an E-mail alert. For E-mail

alerts,thefourelds-SNMPDestinationAddress,BMCUserName,EmailsubjectandEmail

messageneedstobelled.TheSMTPserverinformationalsohastobeadded-underSettings

->SMTP Settings.ForSNMPTrap,onlytheSNMPDestinationAddresshastobelled.

SNMP Destination Address: If Destination type is SNMP Trap, then enter the IP address of the

system that will receive the alert. Destination address will support the following:

• IPv4 address format.

• IPv6 address format.

BMC User Name: If Destination type is Email Alert, then choose the user to whom the email

alert has to be sent. Email address for the user has to be configured under Settings-->User

Management.

Email Subject & Email Message:Theseeldsmustbecongured if emailalertischosenas

destinationtype.Anemail will be senttothe congured emailaddressof the user incase of

anyseverityeventswithasubjectspeciedinsubjecteldandwillcontainthemessageeld’s

contentastheemailbody.Theseeldsarenotapplicablefor‘AMI-Format’emailusers.

Note: UsershouldbeconguredunderSettings-->UserManagement

Save: To add a new entry to the device. Alternatively, double click on a free slot.

Delete:TodeletetheselectedconguredLANDestination.

Procedure

1. In the LAN Destinationssection,choosethenumberofslots to be congured.This
