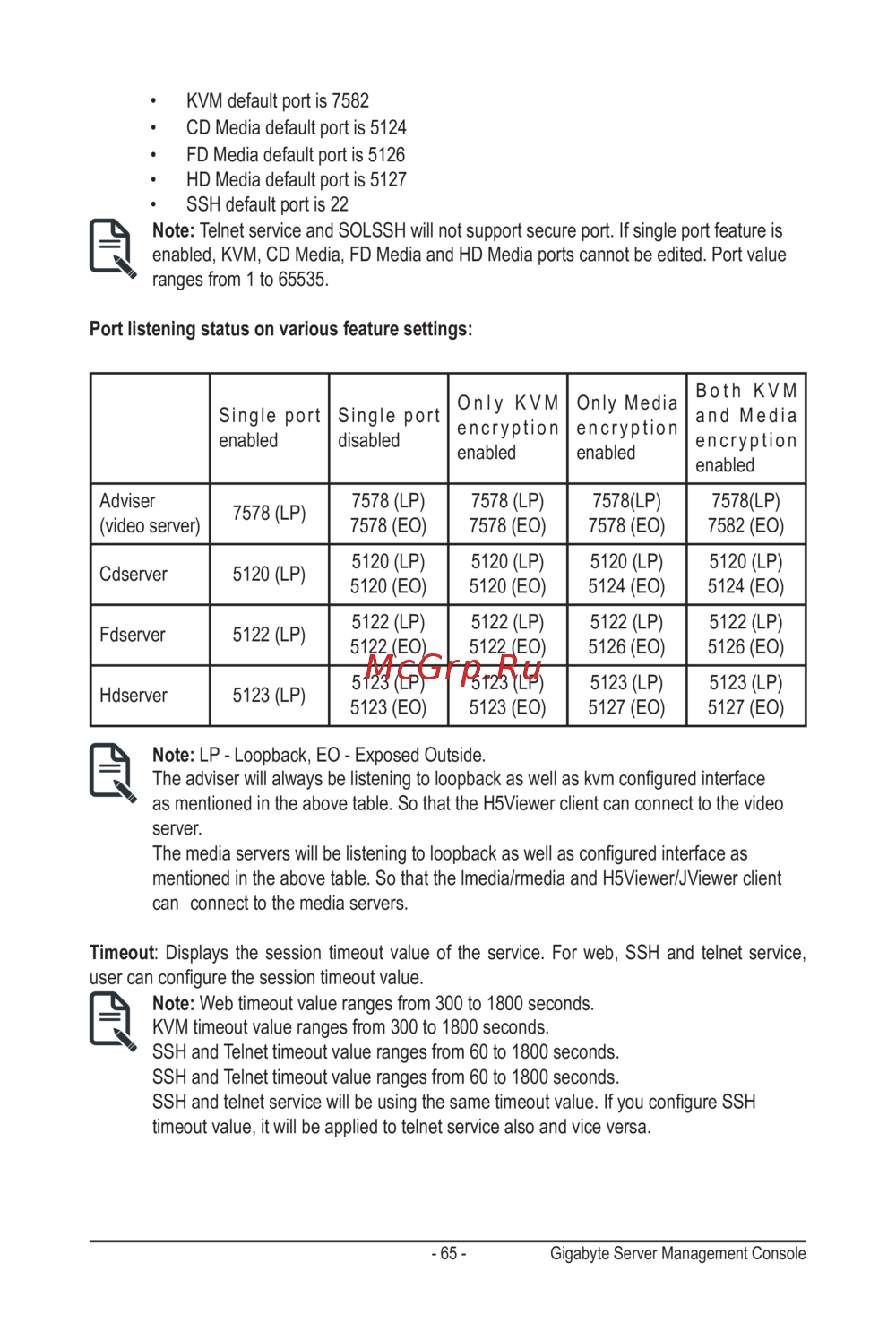

- 65 - Gigabyte Server Management Console
• KVM default port is 7582
• CD Media default port is 5124
• FD Media default port is 5126
• HD Media default port is 5127
• SSH default port is 22
Note: Telnet service and SOLSSH will not support secure port. If single port feature is
enabled, KVM, CD Media, FD Media and HD Media ports cannot be edited. Port value
ranges from 1 to 65535.
Port listening status on various feature settings:
Single port
enabled
Single port
disabled
Only KVM
encryption
enabled
Only Media
encryption
enabled
Both KVM
and Media
encryption
enabled
Adviser
(video server)
7578 (LP)
7578 (LP)
7578 (EO)
7578 (LP)
7578 (EO)
7578(LP)
7578 (EO)
7578(LP)
7582 (EO)
Cdserver 5120 (LP)
5120 (LP)
5120 (EO)
5120 (LP)
5120 (EO)
5120 (LP)
5124 (EO)
5120 (LP)
5124 (EO)
Fdserver 5122 (LP)
5122 (LP)
5122 (EO)
5122 (LP)
5122 (EO)
5122 (LP)
5126 (EO)
5122 (LP)
5126 (EO)
Hdserver 5123 (LP)
5123 (LP)
5123 (EO)
5123 (LP)
5123 (EO)
5123 (LP)
5127 (EO)
5123 (LP)
5127 (EO)
Note: LP - Loopback, EO - Exposed Outside.
Theadviserwillalwaysbelisteningtoloopbackaswellaskvmconguredinterface
as mentioned in the above table. So that the H5Viewer client can connect to the video
server.
Themediaserverswillbelisteningtoloopbackaswellasconguredinterfaceas
mentioned in the above table. So that the lmedia/rmedia and H5Viewer/JViewer client
can connect to the media servers.
Timeout: Displays the session timeout value of the service. For web, SSH and telnet service,
usercancongurethesessiontimeoutvalue.
Note: Web timeout value ranges from 300 to 1800 seconds.
KVM timeout value ranges from 300 to 1800 seconds.
SSH and Telnet timeout value ranges from 60 to 1800 seconds.
SSH and Telnet timeout value ranges from 60 to 1800 seconds.
SSHandtelnetservicewillbeusingthesametimeoutvalue.IfyoucongureSSH
timeout value, it will be applied to telnet service also and vice versa.
