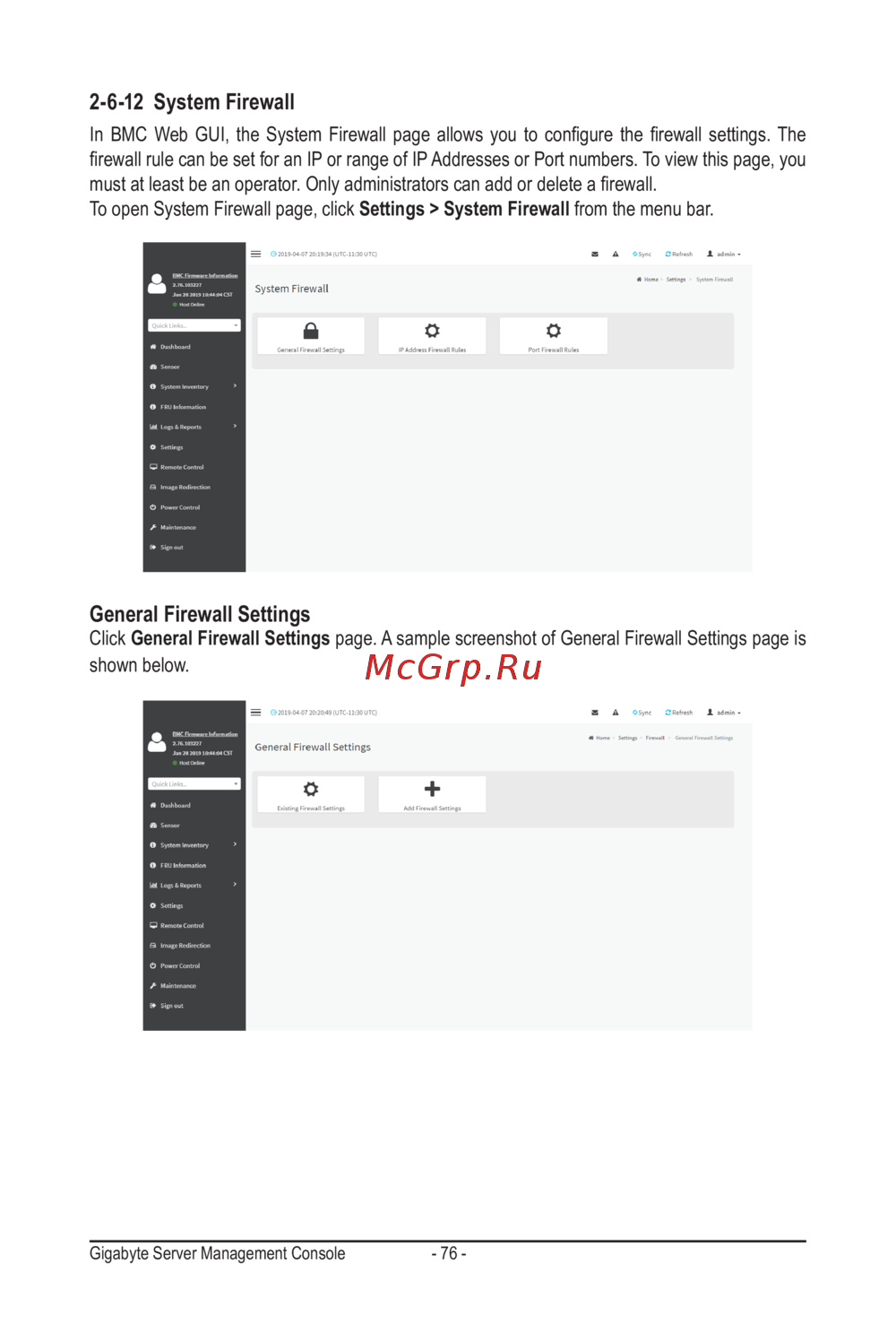

Gigabyte MZ32-AR0 (rev. 1.0) [76/134] General firewall settings

Gigabyte Server Management Console - 76 -

2-6-12 System Firewall

InBMCWebGUI, the System Firewall page allows you to congure the rewall settings. The

rewallrulecanbesetforanIPorrangeofIPAddressesorPortnumbers.Toviewthispage,you

mustatleastbeanoperator.Onlyadministratorscanaddordeletearewall.

To open System Firewall page, click Settings > System Firewall from the menu bar.

General Firewall Settings

Click General Firewall Settings page. A sample screenshot of General Firewall Settings page is

shown below.
