Gigabyte Server Management Console - 80 -

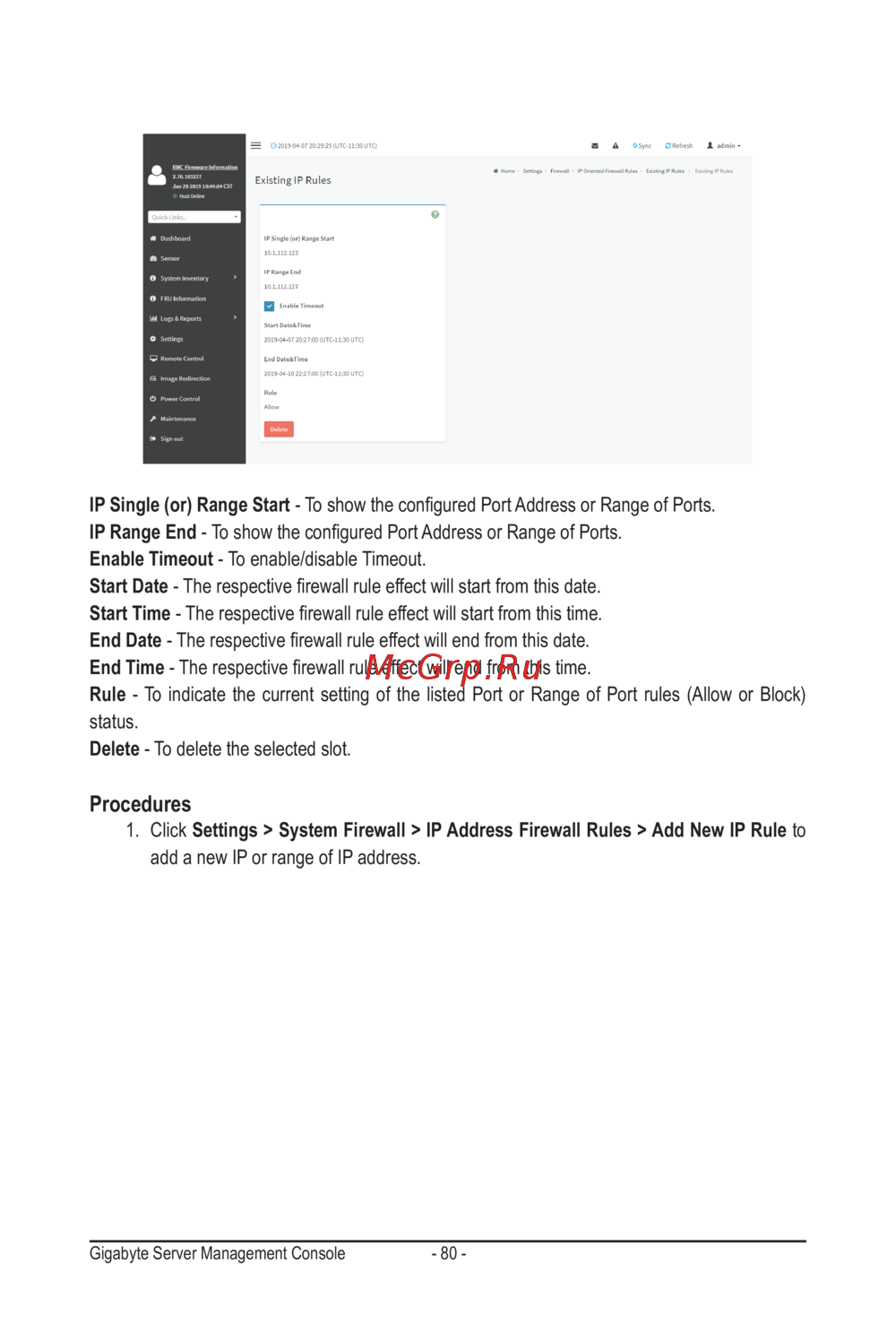

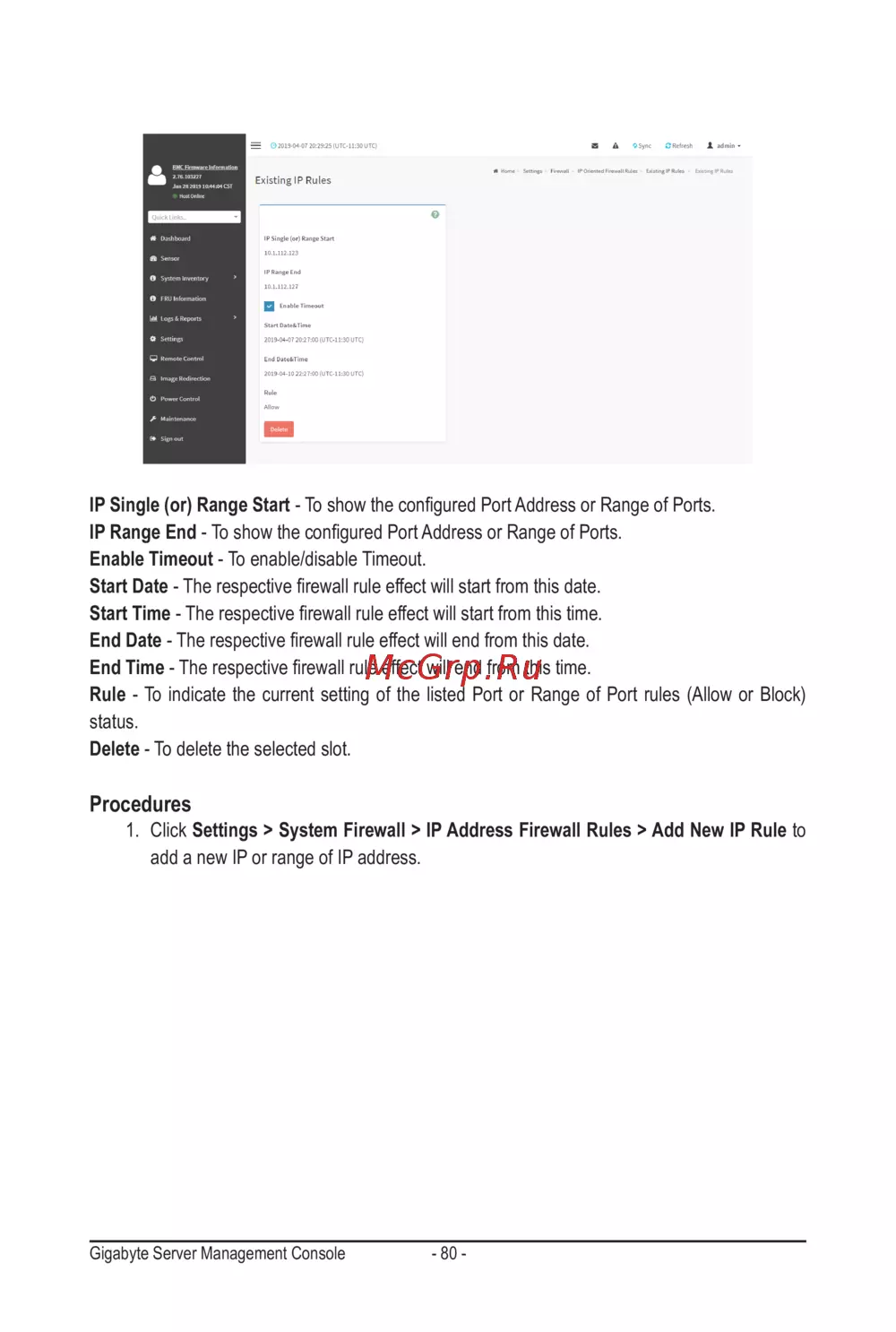

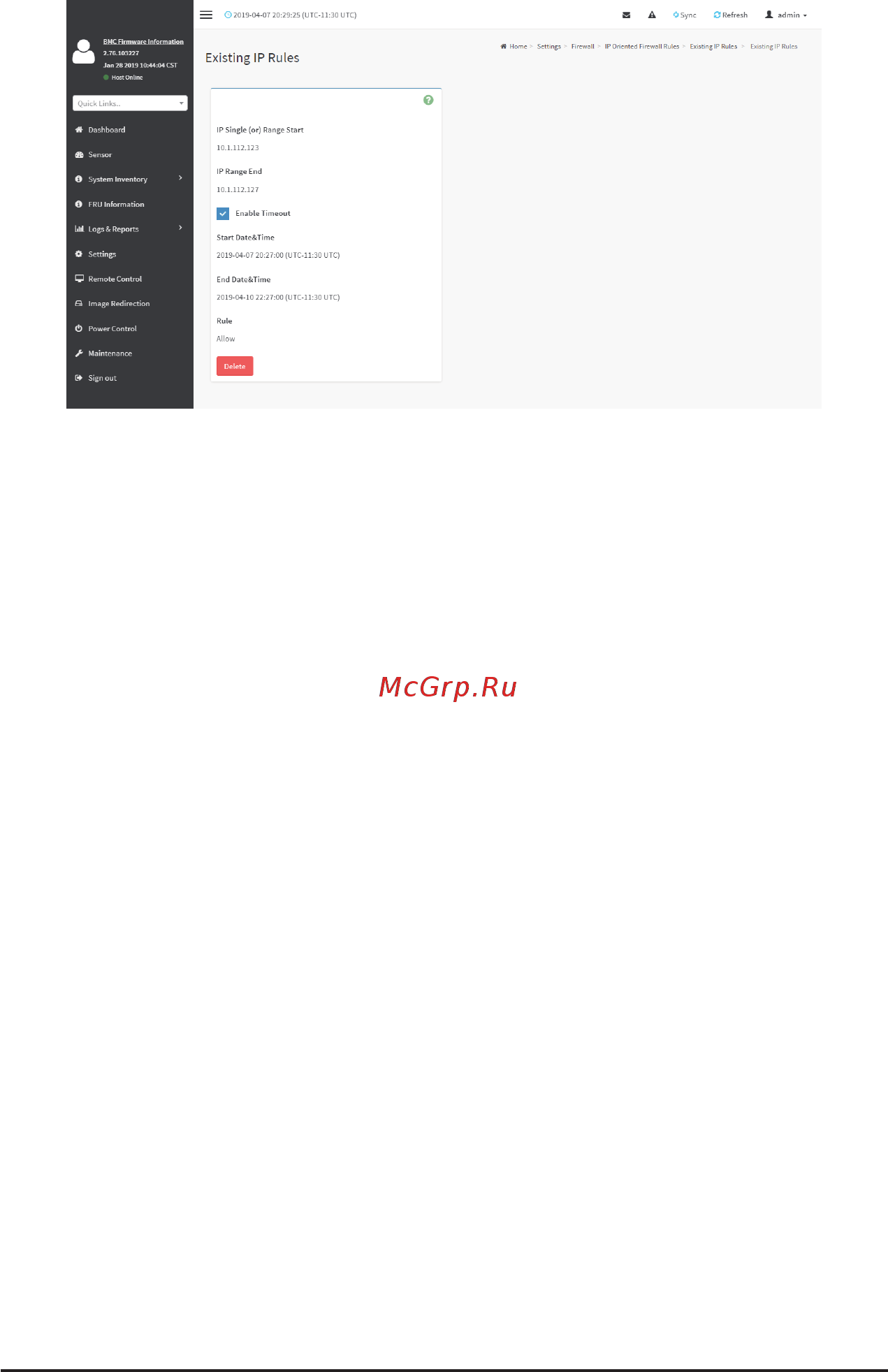

IP Single (or) Range Start-ToshowtheconguredPortAddressorRangeofPorts.
IP Range End-ToshowtheconguredPortAddressorRangeofPorts.
Enable Timeout - To enable/disable Timeout.
Start Date-Therespectiverewallruleeffectwillstartfromthisdate.
Start Time -Therespectiverewallruleeffectwillstartfromthistime.
End Date-Therespectiverewallruleeffectwillendfromthisdate.
End Time -Therespectiverewallruleeffectwillendfromthistime.
Rule - To indicate the current setting of the listed Port or Range of Port rules (Allow or Block)
status.
Delete - To delete the selected slot.
Procedures
1. Click Settings > System Firewall > IP Address Firewall Rules > Add New IP Rule to
add a new IP or range of IP address.
