Port Firewall Rules

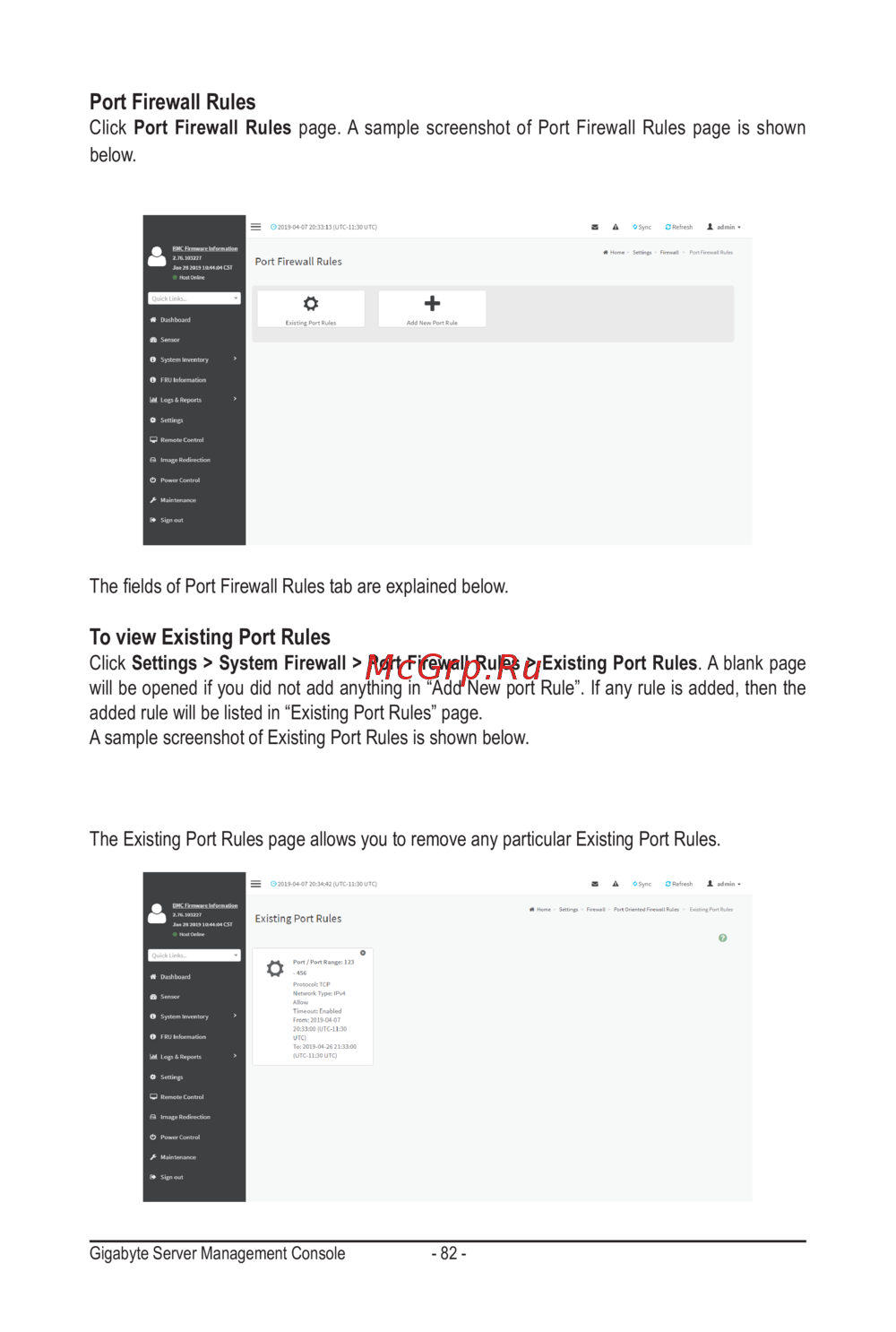

Click Port Firewall Rules page. A sample screenshot of Port Firewall Rules page is shown

below.

TheeldsofPortFirewallRulestabareexplainedbelow.

To view Existing Port Rules

Click Settings > System Firewall > Port Firewall Rules > Existing Port Rules. A blank page

will be opened if you did not add anything in “Add New port Rule”. If any rule is added, then the

added rule will be listed in “Existing Port Rules” page.

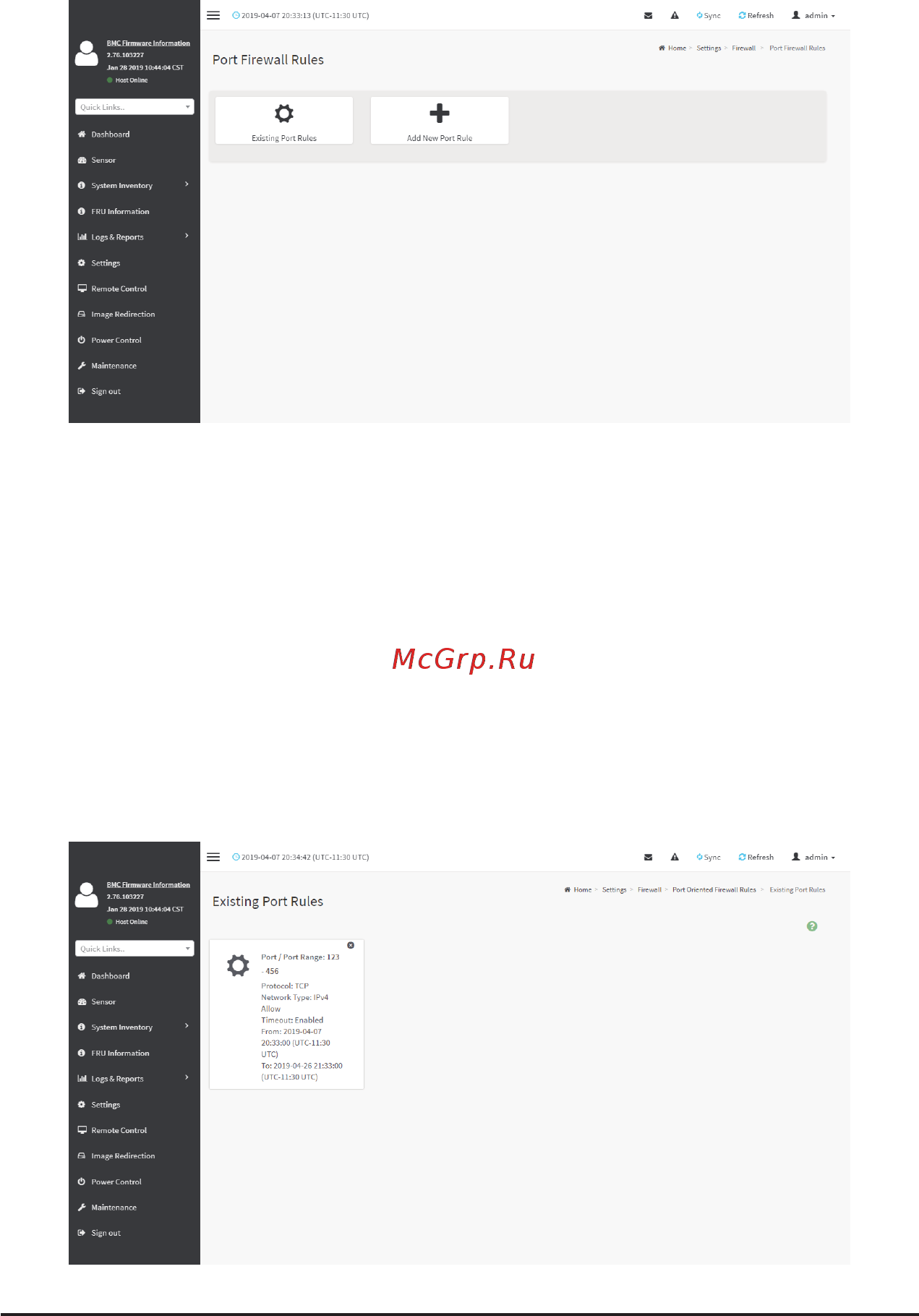

A sample screenshot of Existing Port Rules is shown below.

The Existing Port Rules page allows you to remove any particular Existing Port Rules.
