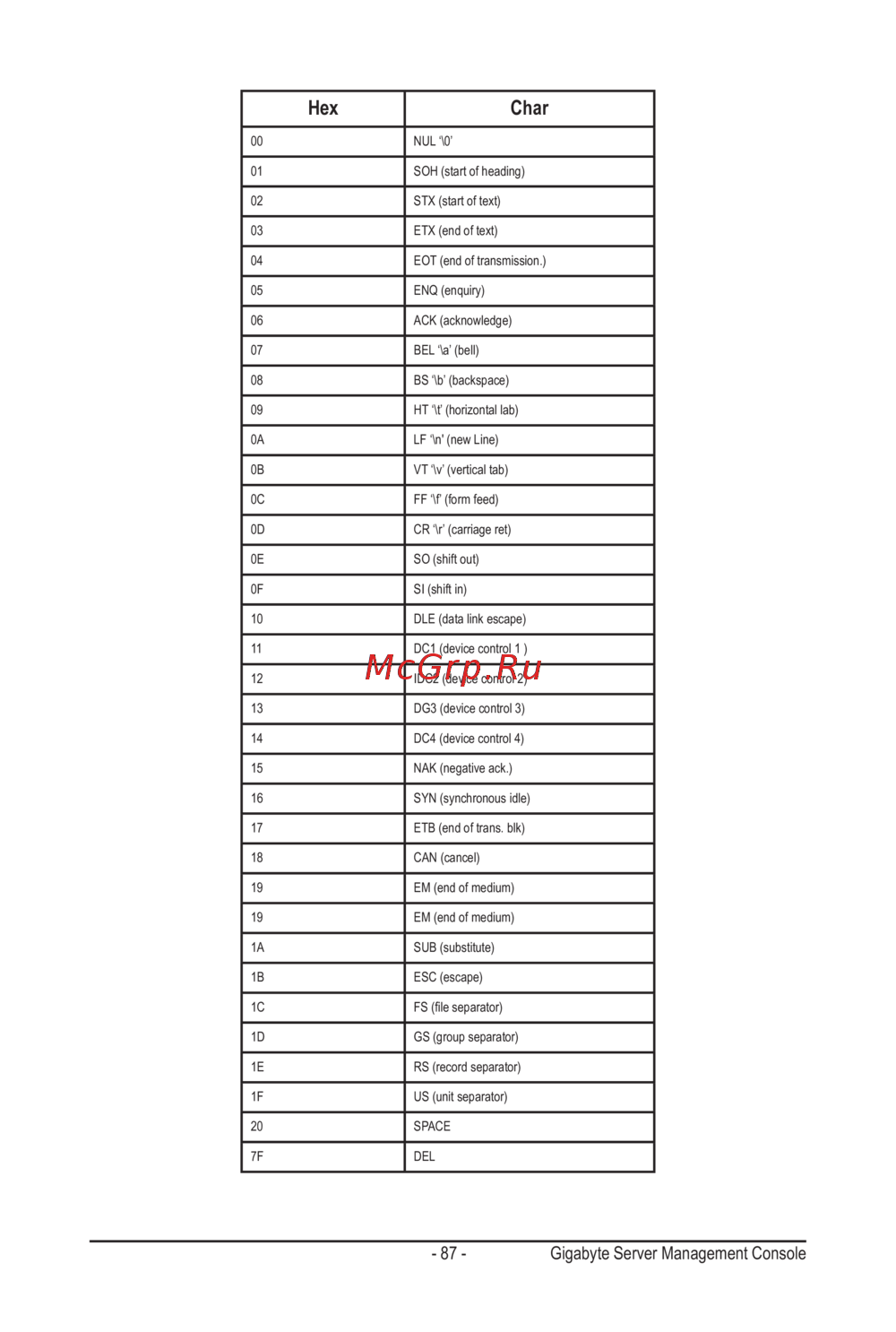

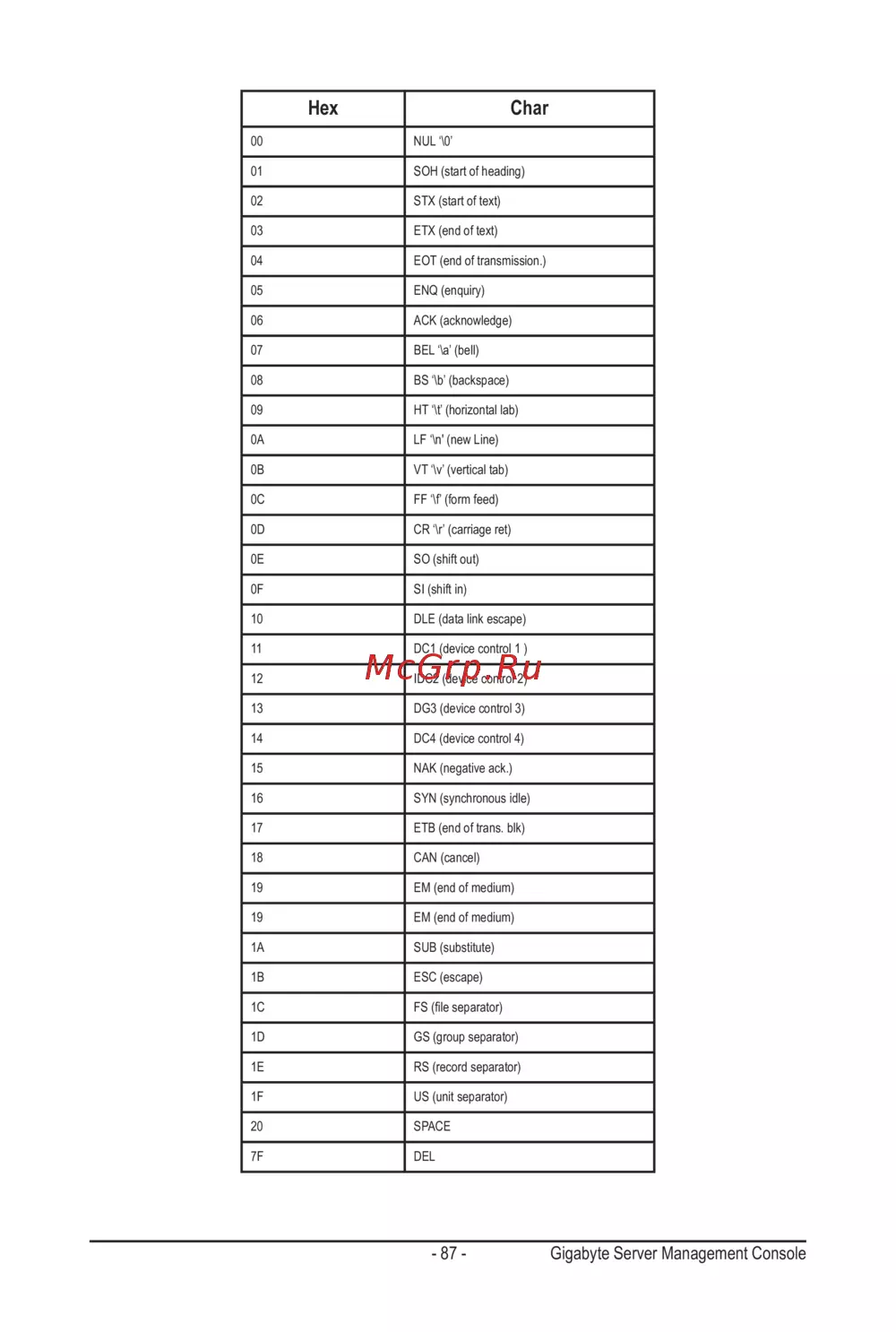

Gigabyte MZ32-AR0 (rev. 1.0) [87/134] Hex char
![Gigabyte MX32-4L0 (rev. 1.0) [87/134] Hex char](/views2/1679890/page87/bg57.png)
- 87 - Gigabyte Server Management Console
Hex Char
00 NUL ‘\0’
01 SOH (start of heading)
02 STX (start of text)
03 ETX (end of text)
04 EOT (end of transmission.)
05 ENQ (enquiry)
06 ACK (acknowledge)
07 BEL ‘\a’ (bell)
08 BS ‘\b’ (backspace)
09 HT ‘\t’ (horizontal lab)
0A LF ‘\n' (new Line)
0B VT ‘\v’ (vertical tab)
0C FF ‘\f’ (form feed)
0D CR ‘\r’ (carriage ret)
0E SO (shift out)
0F SI (shift in)
10 DLE (data link escape)
11 DC1 (device control 1 )
12 IDC2 (device control 2)
13 DG3 (device control 3)
14 DC4 (device control 4)
15 NAK (negative ack.)
16 SYN (synchronous idle)
17 ETB (end of trans. blk)
18 CAN (cancel)
19 EM (end of medium)
19 EM (end of medium)
1A SUB (substitute)
1B ESC (escape)
1C FS(leseparator)
1D GS (group separator)
1E RS (record separator)
1F US (unit separator)
20 SPACE
7F DEL
