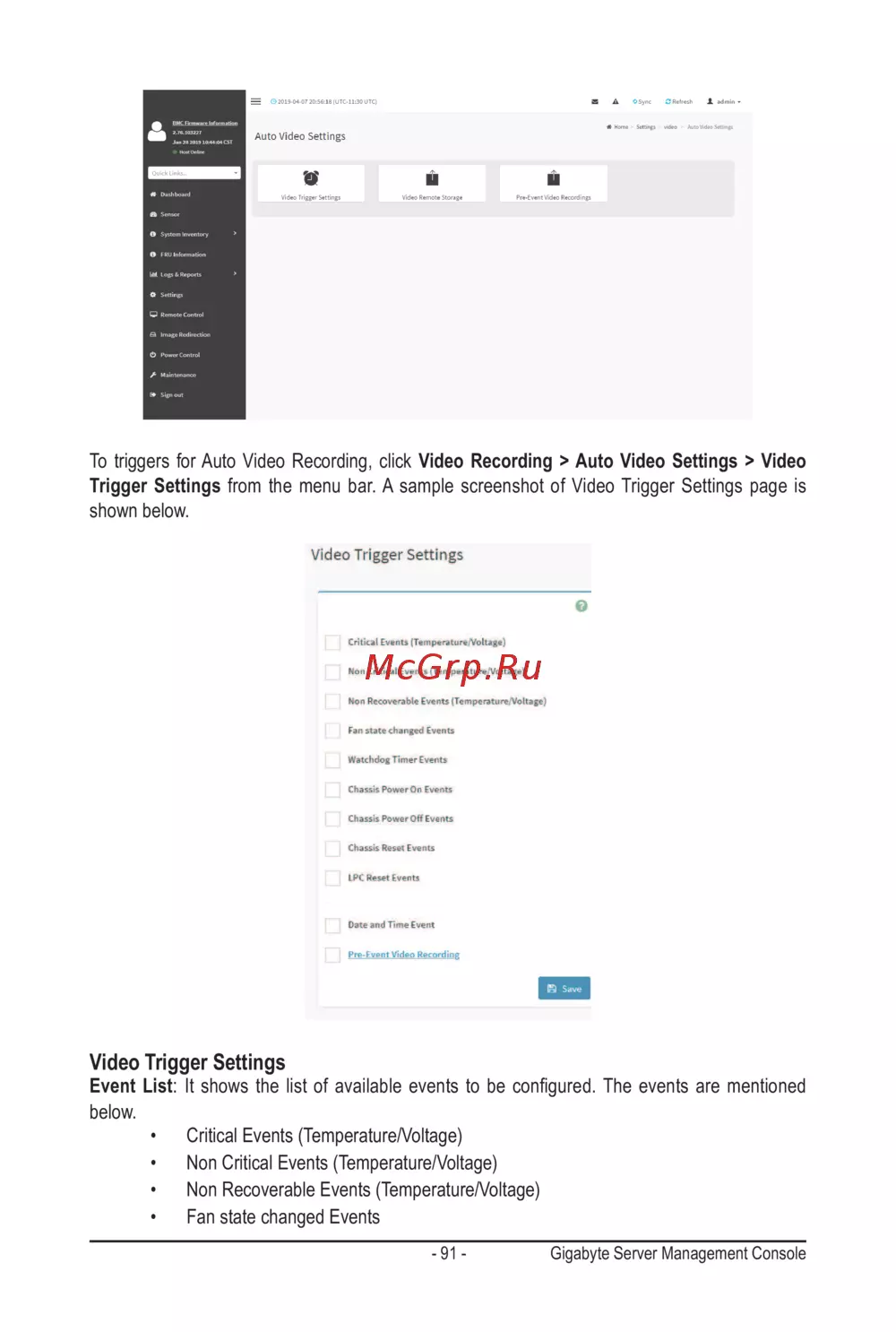

Gigabyte MZ32-AR0 (rev. 1.0) [91/134] Video trigger settings

- 91 - Gigabyte Server Management Console

To triggers for Auto Video Recording, click Video Recording > Auto Video Settings > Video

Trigger Settings from the menu bar. A sample screenshot of Video Trigger Settings page is

shown below.

Video Trigger Settings

Event List:Itshowsthelist ofavailableeventsto becongured.Theeventsare mentioned

below.

• Critical Events (Temperature/Voltage)

• Non Critical Events (Temperature/Voltage)

• Non Recoverable Events (Temperature/Voltage)

• Fan state changed Events
